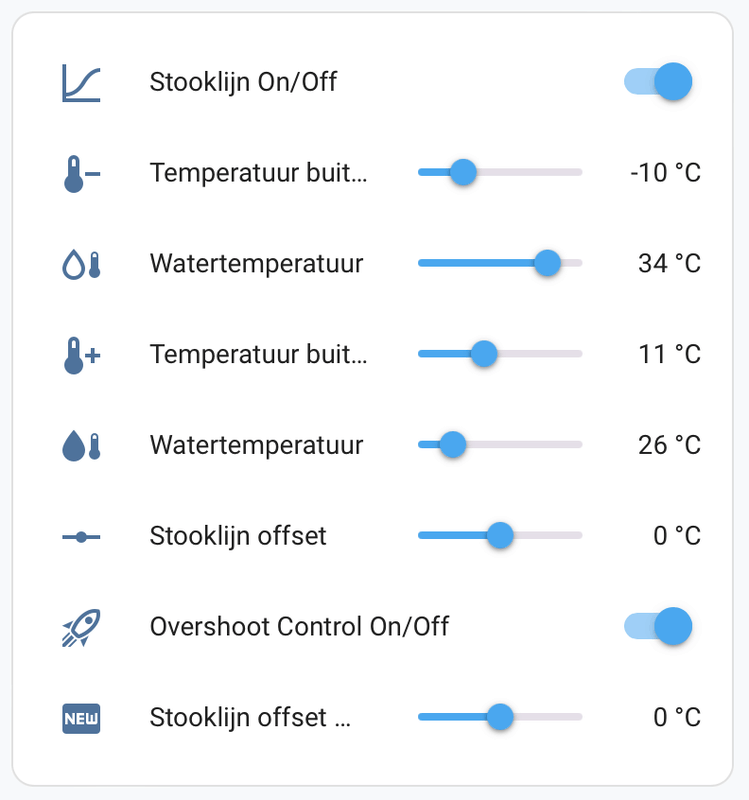

| number:
- platform: template
id: stooklijn_min_oat
name: "Stooklijn Minimum Buitentemperatuur"
min_value: -15
max_value: 4
step: 1
restore_value: yes
initial_value: -5
unit_of_measurement: "°C"
optimistic: true
icon: mdi:thermometer-minus
on_value:
then:
- lambda: |-
static unsigned long last_publish_time = 0;
// static unsigned long defrosting_last_off_time = 0;
// static unsigned long compressor_last_off_time = 0;
static bool compressorHzLessThanEqualOneInLastMinute = false;
static bool OvershootLogic = false;
if(id(bedrijfsmodus).state != 2 ) return;
if(isnan(id(buiten_temp).state)) return;
if(!id(stooklijn_on_off).state) return;
if (millis() - last_publish_time < 10000) {
return;
}
last_publish_time = millis();
static float prev_oat = 0; // hold previous script run ota value to check if it changed since last run
static float prev_tr = id(water_temp_retour).state;
float temp_new_target = id(watertemp_target).state; //new anti-pendel target
static bool target_reached = false; //system logic (to switch off after target is reached)
static int state = 0; // State variable to track the current step
static unsigned long last_offset_publish_time = 0;
float oat = round(id(buiten_temp).state);
const float Z = ((float)id(stooklijn_min_wtemp).state-(float)id(stooklijn_max_wtemp).state) / ((float)id(stooklijn_max_oat).state - (float)id(stooklijn_min_oat).state);
ESP_LOGD("stooklijn", "verwarmen volgens stooklijn, met buitentemp: %.1f, Z: %.1f",oat, Z);
// Check compressor_hz in the past minute
// ESP_LOGD("debug", "Initial Compressor Hz value: %.0f", id(compressor_hz).state);
unsigned long currentTime = millis();
// bool compressorHzLessThanEqualOneInLastMinute = false;
ESP_LOGD("debug", "Controlleer status compressor");
for (unsigned long time = currentTime - 100 * 1000; time <= currentTime; time += 1000) {
// Check if compressor_hz was less than or equal to 1 at any moment in the past minute
if (id(compressor_hz).raw_state <= 0.00) {
compressorHzLessThanEqualOneInLastMinute = true;
ESP_LOGD("debug", "Compressor Hz is 0.00, (her)start");
break; // No need to continue checking
}
}
// --------warmtepomp is actief ----------------------
if (id(compressor_running).state) {
ESP_LOGD("debug", "Compressor is running - checking overshoot control");
ESP_LOGD("debug", "overshootcontrol_on_off.state: %s", id(overshootcontrol_on_off).state ? "true" : "false");
ESP_LOGD("debug", "OvershootLogic: %s", OvershootLogic ? "true" : "false");
if ((id(overshootcontrol_on_off).state && compressorHzLessThanEqualOneInLastMinute) || (id(overshootcontrol_on_off).state && OvershootLogic)) {
float temp_target_incremented = 0.0;
switch (state) {
case 0:
// als defrost stille modus uit
if (id(defrosting).state) {
id(silent_mode_switch).turn_off();
ESP_LOGD("debug", "Silent Mode switch set to OFF");
}
ESP_LOGD("debug", "gaat naar case 0");
id(overshoot_stooklijn_offset).publish_state(-4); // stooklijn verlaging in aantal graden Ta
OvershootLogic = true;
ESP_LOGD("debug", "OvershootLogic: %s", OvershootLogic ? "true" : "false");
last_offset_publish_time = millis();
state++;
id(stooklijn_target) = (int)round(Z * (oat - id(stooklijn_min_oat).state) + id(stooklijn_max_wtemp).state) +
(id(wp_stooklijn_offset).state) + (id(overshoot_stooklijn_offset).state);
ESP_LOGD("stooklijn", "gecorrigeerd target stap 1 overshoot: %.1f", id(stooklijn_target));
id(watertemp_target).publish_state(id(stooklijn_target));
break;
case 1:
ESP_LOGD("debug", "gaat naar case 1");
ESP_LOGD("debug", "Millis difference: %lu", millis() - last_offset_publish_time);
ESP_LOGD("debug", "OvershootLogic: %s", OvershootLogic ? "true" : "false");
if (millis() - last_offset_publish_time >= 3 * 60 * 1000) { // duur van 1e verlaging in minuten
ESP_LOGD("debug", "bezig met timer case 1");
ESP_LOGD("debug", "Millis difference: %lu", millis() - last_offset_publish_time);
ESP_LOGD("debug", "Seconds difference: %.2f", (millis() - last_offset_publish_time) / 1000.0);
id(overshoot_stooklijn_offset).publish_state(-3); // stooklijn verlaging in aantal graden Ta, 1 hoger dan vorige stap
ESP_LOGD("debug", "Published -3, millis: %lu", millis());
last_offset_publish_time = millis();
state++;
id(stooklijn_target) = (int)round(Z * (oat - id(stooklijn_min_oat).state) + id(stooklijn_max_wtemp).state) +
(id(wp_stooklijn_offset).state) + (id(overshoot_stooklijn_offset).state);
ESP_LOGD("stooklijn", "gecorrigeerd target stap 2 overshoot: %.1f", id(stooklijn_target));
id(watertemp_target).publish_state(id(stooklijn_target));
}
break;
case 2:
ESP_LOGD("debug", "gaat naar case 2");
ESP_LOGD("debug", "OvershootLogic: %s", OvershootLogic ? "true" : "false");
if (millis() - last_offset_publish_time >= 4 * 60 * 1000) { // duur van 2e verlaging in minuten
ESP_LOGD("debug", "bezig met timer case 2");
ESP_LOGD("debug", "Millis difference: %lu", millis() - last_offset_publish_time);
ESP_LOGD("debug", "Seconds difference: %.2f", (millis() - last_offset_publish_time) / 1000.0);
id(overshoot_stooklijn_offset).publish_state(-2); // stooklijn verlaging in aantal graden Ta, 1 hoger dan vorige stap
ESP_LOGD("debug", "Published -2, millis: %lu", millis());
last_offset_publish_time = millis();
state++;
id(stooklijn_target) = (int)round(Z * (oat - id(stooklijn_min_oat).state) + id(stooklijn_max_wtemp).state) +
(id(wp_stooklijn_offset).state) + (id(overshoot_stooklijn_offset).state);
ESP_LOGD("stooklijn", "gecorrigeerd target stap 3 overshoot: %.1f", id(stooklijn_target));
id(watertemp_target).publish_state(id(stooklijn_target));
}
break;
case 3:
ESP_LOGD("debug", "gaat naar case 3");
ESP_LOGD("debug", "OvershootLogic: %s", OvershootLogic ? "true" : "false");
if (millis() - last_offset_publish_time >= 4 * 60 * 1000) {
ESP_LOGD("debug", "bezig met timer case 3");
ESP_LOGD("debug", "Millis difference: %lu", millis() - last_offset_publish_time);
ESP_LOGD("debug", "Seconds difference: %.2f", (millis() - last_offset_publish_time) / 1000.0);
id(overshoot_stooklijn_offset).publish_state(-1);
ESP_LOGD("debug", "Published -1, millis: %lu", millis());
last_offset_publish_time = millis();
state++;
id(stooklijn_target) = (int)round(Z * (oat - id(stooklijn_min_oat).state) + id(stooklijn_max_wtemp).state) +
(id(wp_stooklijn_offset).state) + (id(overshoot_stooklijn_offset).state);
ESP_LOGD("stooklijn", "gecorrigeerd target stap 4 overshoot: %.1f", id(stooklijn_target));
id(watertemp_target).publish_state(id(stooklijn_target));
}
break;
case 4:
ESP_LOGD("debug", "gaat naar case 4");
ESP_LOGD("debug", "OvershootLogic: %s", OvershootLogic ? "true" : "false");
if (millis() - last_offset_publish_time >= 4 * 60 * 1000) {
ESP_LOGD("debug", "bezig met timer case 4");
ESP_LOGD("debug", "Millis difference: %lu", millis() - last_offset_publish_time);
ESP_LOGD("debug", "Seconds difference: %.2f", (millis() - last_offset_publish_time) / 1000.0);
id(overshoot_stooklijn_offset).publish_state(-0);
ESP_LOGD("debug", "Published -0, millis: %lu", millis());
OvershootLogic = false;
ESP_LOGD("debug", "KLAAR");
id(stooklijn_target) = (int)round(Z * (oat - id(stooklijn_min_oat).state) + id(stooklijn_max_wtemp).state) +
(id(wp_stooklijn_offset).state) + (id(overshoot_stooklijn_offset).state);
ESP_LOGD("stooklijn", "origineel target: %.1f", id(stooklijn_target));
id(watertemp_target).publish_state(id(stooklijn_target));
last_offset_publish_time = millis(); // Update the last offset publish time
}
break;
}
}
temp_new_target = std::min(temp_new_target, id(stooklijn_target));
ESP_LOGD("target", "RETURN_TEMP: %.1f OUTLET_TEMP: %.1f TARGET: %.1f NEW_TARGET: %.1f ",
id(water_temp_retour).state, id(water_temp_aanvoer).state, id(stooklijn_target), temp_new_target);
id(pendel_watertemp_target).publish_state(temp_new_target);
id(water_temp_target_output).set_level(temp_new_target * 0.01);
} else if (!id(compressor_running).state) {
id(water_temp_target_output).set_level(id(stooklijn_target) * 0.01);
target_reached = false;
}
// ----------------calculate stooklijn target---------------------------------
if(prev_oat != oat || id(force_update_stooklijn)){ // if no oat change, no update needed, unless forced or first run
prev_oat = oat;
id(force_update_stooklijn) = false; //reset force boolean
const float Z = ((float)id(stooklijn_min_wtemp).state-(float)id(stooklijn_max_wtemp).state) / ((float)id(stooklijn_max_oat).state - (float)id(stooklijn_min_oat).state);
ESP_LOGD("stooklijn", "verwarmen volgens stooklijn, met buitentemp: %.1f, Z: %.1f",oat, Z);
if(oat < id(stooklijn_min_oat).state) { //if oat below minimum oat, clamp to minimum value
oat = id(stooklijn_min_oat).state;
} else if(oat > id(stooklijn_max_oat).state) { //if oat above max value, clamp to maximum value
oat = id(stooklijn_max_oat).state;
}
id(stooklijn_target) = (int)round(Z * (oat - id(stooklijn_min_oat).state) + id(stooklijn_max_wtemp).state) + (id(wp_stooklijn_offset).state) + (id(overshoot_stooklijn_offset).state);
ESP_LOGD("stooklijn", "New stooklijn target value (after correction): %.1f", id(stooklijn_target));
id(watertemp_target).publish_state(id(stooklijn_target)); //publish new stooklijn value to watertemp value sensor
} |
:strip_icc():strip_exif()/u/1650020/crop6114c88d01c10_cropped.jpg?f=community)
