Eenvoudige thuisaccu samenstellen

<?php
//                                                               //
// **************************************************************//
//        EcoFlow LiFePo4 12/12/20a Thuisbatterij Laders         //
//                          Variables                            //
// **************************************************************//
//                                                               //

// Debug?
    $debug                 = 'yes';                              // Waarde 'yes' of 'no'

// Homewizard variables
    $hwP1IP                = '0.0.0.0';                         // IP Homewizard P1 Meter
    $hwKwhIP               = '0.0.0.0';                         // IP Homewizard Solar kwh Meter
    $hwEcoFlowIP           = '0.0.0.0';                         // IP Homewizard EcoFlow socket
    $hwChargerOneIP        = '0.0.0.0';                         // IP Homewizard Charger ONE 300w socket
    $hwChargerTwoIP        = '0.0.0.0';                         // IP Homewizard Charger TWO 600w socket
    $hwChargerThreeIP      = '0.0.0.0';                         // IP Homewizard Charger THREE 300w socket

// Lader/Batterij variables
    $chargerOneUsage       = 340;                                // Verbruik van Lader 1 (Watt)
    $chargerTwoUsage       = 590;                                // Verbruik van Lader 2 (Watt)
    $chargerThreeUsage     = 340;                                // Verbruik van Lader 3 (Watt)
    $chargerWattsIdle      =  14;                                // Standby Watts van alle laders wanneer batterijen vol zijn

// Ecoflow Powerstream API variables
    $ecoflowPath           = '/path/to/files/';                  // Path waar je scripts zich bevinden
    $ecoflowAccessKey      = 'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx'; // Powerstream API access key
    $ecoflowSecretKey      = 'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx'; // Powerstream API secret key
    $ecoflowSerialNumber   = ['HWXXXXXXXXXXX',];                 // Powerstream serie nummer

//                                                               //
// **************************************************************//
//        EcoFlow LiFePo4 12/12/20a Thuisbatterij opladen        //
//                  Functions & Get/Set Data                     //
// **************************************************************//
//                                                               //

// Print Header
    if ($debug == 'yes'){
    echo ' '.PHP_EOL;
    echo ' --------------------------------------'.PHP_EOL;
    echo ' --    LiFePo4 12/12/20a Chargers    --'.PHP_EOL;
    echo ' --------------------------------------'.PHP_EOL;
    echo ' '.PHP_EOL;
    }

// Require ecoflow API class file
    require_once(''.$ecoflowPath.'ecoflow-api-class.php');

// Get Ecoflow status
    $ecoflow = new EcoFlowAPI(''.$ecoflowAccessKey.'', ''.$ecoflowSecretKey.'');
    $ecoflowSerialNumber = file_get_contents(''.$ecoflowPath.'serialnumber.txt');
        $batterijEmpty = 0;
    if ($ecoflowSerialNumber === false) {
        if ($debug == 'yes'){
        echo '  -- ERROR: Kan serialnumber.txt niet openen!'.PHP_EOL;
        echo ' '.PHP_EOL;
        echo '  --------------------------------------'.PHP_EOL;
        }
        exit(1);
    }

    if (empty(trim($ecoflowSerialNumber))) {
        if ($debug == 'yes'){
        echo '  -- ERROR: Batterij leeg!'.PHP_EOL;
        echo ' '.PHP_EOL;
        echo '  --------------------------------------'.PHP_EOL;
        }

    } else {

        $inv = $ecoflow->getDevice($ecoflowSerialNumber);
        if (!$inv || !isset($inv['data']['20_1.permanentWatts'])) {
        if ($debug == 'yes'){
        echo '  -- ERROR: Kan EcoFlow inverter gegevens niet ophalen!'.PHP_EOL;
        echo ' '.PHP_EOL;
        echo '  --------------------------------------'.PHP_EOL;
        }
        exit(1);
        }

// Function write batterState.txt
    function writeBattState($state)
    {
        global $ecoflowPath;
        $filePath = ''.$ecoflowPath.'batteryState.txt';
        $file = fopen($filePath, "w");
        if ($file === false) {
            die("Unable to open file!");
        }
        fwrite($file, $state);
        fclose($file);
    }

// Function GET HomeWizard data
    function getHwData($ip) {
        global $debug;
        $hwData = curl_init();
        curl_setopt($hwData, CURLOPT_URL, "http://".$ip."/api/v1/data");
        curl_setopt($hwData, CURLOPT_RETURNTRANSFER, true);
        $hwDataResult = curl_exec($hwData);

        if (curl_errno($hwData)) {
            if ($debug == 'yes'){
            echo ' -- ERROR: Kan geen gegevens op halen van Homewizard: '.$ip.'!'.PHP_EOL;
            echo ' '.PHP_EOL;
            echo ' --------------------------------------'.PHP_EOL;
            }
            exit(0);

        } else {

            $hwDataDecode = json_decode($hwDataResult);
            $hwDataDecoded         = round($hwDataDecode->active_power_w);
            return $hwDataDecoded;
            curl_close($hwData);
        }
    }

// Function GET HomeWizard (energy-socket) status
    function getHwStatus($ip) {
        global $debug;
        $hwChargerStatus = curl_init();
        curl_setopt($hwChargerStatus, CURLOPT_URL, "http://".$ip."/api/v1/state");
        curl_setopt($hwChargerStatus, CURLOPT_RETURNTRANSFER, true);
        $hwChargerStatusResult = curl_exec($hwChargerStatus);

        if (curl_errno($hwChargerStatus)) {
            if ($debug == 'yes'){
            echo ' -- ERROR: Kan geen gegevens op halen van Homewizard: '.$ip.'!'.PHP_EOL;
            echo ' '.PHP_EOL;
            echo ' --------------------------------------'.PHP_EOL;
            }
            exit(0);

        } else {

          $hwChargerStatusDecode = json_decode($hwChargerStatusResult);
          $hwChargerStatus  = abs($hwChargerStatusDecode->power_on);

          if ($hwChargerStatus == 1){
              $hwChargerStatus  = 'On';
          } else {
            $hwChargerStatus  = 'Off';
          }
          return $hwChargerStatus;
          curl_close($hwChargerStatus);
        }
    }

// Function Switch HomeWizard (energy-socket) status
    function switchHwSocket($energySocket,$cmd) {
        global $debug;
        global $hwChargerOneIP;
        global $hwChargerTwoIP;
        global $hwChargerThreeIP;
        global $hwEcoFlowIP;

        $socket = curl_init();
        if ($energySocket == 'two') {
        curl_setopt($socket, CURLOPT_URL, 'http://'.$hwChargerTwoIP.'/api/v1/state');
        } elseif ($energySocket == 'one') {
        curl_setopt($socket, CURLOPT_URL, 'http://'.$hwChargerOneIP.'/api/v1/state');
        } elseif ($energySocket == 'three') {
        curl_setopt($socket, CURLOPT_URL, 'http://'.$hwChargerThreeIP.'/api/v1/state');
        }
        curl_setopt($socket, CURLOPT_RETURNTRANSFER, true);
        curl_setopt($socket, CURLOPT_CUSTOMREQUEST, 'PUT');
        curl_setopt($socket, CURLOPT_HTTPHEADER, [
            'Content-Type: application/x-www-form-urlencoded',
        ]);

        if ($cmd == 'On') {
            $cmd = 'true';
        } elseif ($cmd == 'Off') {
            $cmd = 'false';
        }

        curl_setopt($socket, CURLOPT_POSTFIELDS, '{"power_on": '.$cmd.'}');

        $response = curl_exec($socket);

        curl_close($socket);
    }

// HomeWizard GET Variables
    $hwP1Usage            = getHwData($hwP1IP);
    $hwSolarReturn        = getHwData($hwKwhIP);
    $hwInvReturn          = getHwData($hwEcoFlowIP);
    $hwchargerOneUsage    = getHwData($hwChargerOneIP);
    $hwchargerTwoUsage    = getHwData($hwChargerTwoIP);
    $hwchargerThreeUsage  = getHwData($hwChargerThreeIP);
    $chargerOneStatus     = getHwStatus($hwChargerOneIP);
    $chargerTwoStatus     = getHwStatus($hwChargerTwoIP);
    $chargerThreeStatus   = getHwStatus($hwChargerThreeIP);

// Get battery Voltage
    $pv1InputVolt         = ($inv['data']['20_1.pv1InputVolt']) / 10;
    $pv2InputVolt         = ($inv['data']['20_1.pv2InputVolt']) / 10;
    $pvAvInputVoltage     = ($pv1InputVolt + $pv2InputVolt) / 2;

// Get Inverter output Watts
    $pv1InputWatts        = ($inv['data']['20_1.pv1InputWatts']) / 10;
    $pv2InputWatts        = ($inv['data']['20_1.pv2InputWatts']) / 10;
    $pvAvInputWatts       = ($pv1InputWatts + $pv2InputWatts);

// Get Current Baseload
    $currentBaseload      = ($inv['data']['20_1.permanentWatts']) / 10;

// Get Inverter Temperature
    $invTemp              = ($inv['data']['20_1.llcTemp']) / 10;

// Determine Power Usage
    $chargerUsage         = ($hwchargerOneUsage + $hwchargerTwoUsage + $hwchargerThreeUsage);
    $productionTotal      = ($hwSolarReturn + $hwInvReturn);
    $realUsage            = ($hwP1Usage - $productionTotal);
    $P1ChargerUsage       = ($hwP1Usage - $chargerUsage);

    $chargerOneUsage      = -abs($chargerOneUsage);
    $chargerTwoUsage      = -abs($chargerTwoUsage);
    $chargerOneTwoUsage   = -abs($chargerOneUsage + $chargerTwoUsage);
    $chargerThreeUsage    = -abs($chargerThreeUsage);
    $chargerTotalUsage    = ($chargerOneUsage + $chargerTwoUsage + $chargerThreeUsage);

//Write battery State
    if ($pvAvInputVoltage <= 22.7) {
    writeBattState('leeg');
    } elseif ($pvAvInputVoltage > 22.7 && $pvAvInputVoltage <= 24.95) {
    writeBattState('half');
    } elseif ($pvAvInputVoltage >= 26.6) {
    writeBattState('geladen');
    }
    $batteryState = file_get_contents(''.$ecoflowPath.'batteryState.txt');

//                                                               //
// **************************************************************//
//        EcoFlow LiFePo4 12/12/20a Thuisbatterij Laders         //
//                             Print                             //
// **************************************************************//
//                                                               //

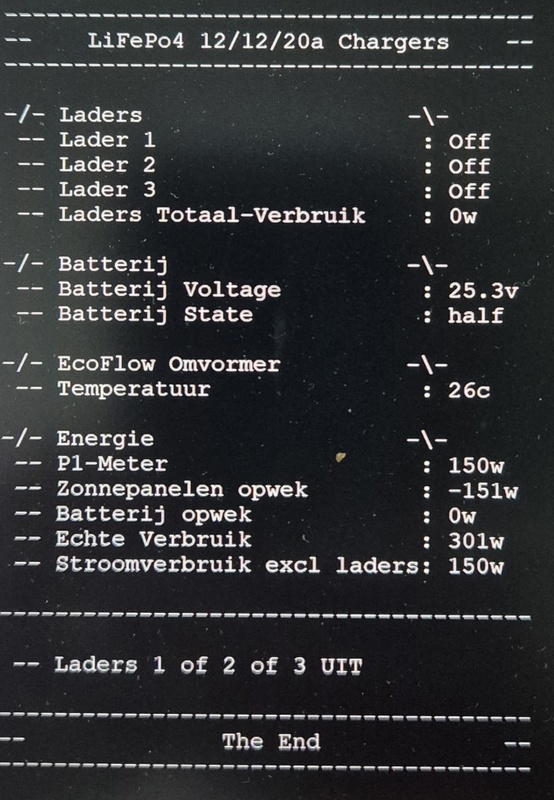

    if ($debug == 'yes'){
        echo ' -/- Laders                   -\-'.PHP_EOL;
        echo '  -- Lader 1                   : '.$chargerOneStatus.''.PHP_EOL;
        echo '  -- Lader 2                   : '.$chargerTwoStatus.''.PHP_EOL;
        echo '  -- Lader 3                   : '.$chargerThreeStatus.''.PHP_EOL;
        echo '  -- Laders Totaal-Verbruik    : '.$chargerUsage.'w'.PHP_EOL;
        echo ' '.PHP_EOL;

        echo ' -/- Batterij                 -\-'.PHP_EOL;
        echo '  -- Batterij Voltage          : '.$pvAvInputVoltage.'v'.PHP_EOL;
        echo '  -- Batterij State            : '.$batteryState.''.PHP_EOL;
        echo ' '.PHP_EOL;

        echo ' -/- EcoFlow Omvormer         -\-'.PHP_EOL;
        echo '  -- Temperatuur               : '.$invTemp.'c'.PHP_EOL;
        echo ' '.PHP_EOL;

        echo ' -/- Energie                  -\-'.PHP_EOL;
        echo '  -- P1-Meter                  : '.$hwP1Usage.'w'.PHP_EOL;
        echo '  -- Zonnepanelen opwek        : '.$hwSolarReturn.'w'.PHP_EOL;
        echo '  -- Batterij opwek            : '.$hwInvReturn.'w'.PHP_EOL;
        echo '  -- Echte Verbruik            : '.$realUsage.'w'.PHP_EOL;
        echo '  -- Stroomverbruik excl laders: '.$P1ChargerUsage.'w'.PHP_EOL;
    }

//                                                               //
// **************************************************************//
//        EcoFlow LiFePo4 12/12/20a Thuisbatterij Laders         //
//                        Start/Stop Laden                       //
// **************************************************************//
//                                                               //

    if ($debug == 'yes'){
    echo ' '.PHP_EOL;
    echo ' --------------------------------------'.PHP_EOL;
    echo ' '.PHP_EOL;
    }

// Lader 1 of 2 of 3 UIT
    if ($P1ChargerUsage > $chargerOneUsage || $chargerUsage <= $chargerWattsIdle || $pvAvInputWatts != 0 || $hwSolarReturn == 0){
        if ($debug == 'yes'){echo '  -- Laders 1 of 2 of 3 UIT'.PHP_EOL;}
        if ($chargerOneStatus == 'On' && $hwSolarReturn >= $chargerOneUsage){ switchHwSocket('one','Off'); sleep(2);}
        if ($chargerTwoStatus == 'On' && $hwSolarReturn >= $chargerOneTwoUsage){ switchHwSocket('two','Off'); sleep(2);}
        if ($chargerThreeStatus == 'On' && $hwSolarReturn >= $chargerTotalUsage){ switchHwSocket('three','Off');}
    }

// Lader 1 AAN - Lader 2 & 3 UIT
    if (($P1ChargerUsage > $chargerTwoUsage && $P1ChargerUsage <= $chargerOneUsage) && ($pvAvInputVoltage <= 26 && $pvAvInputWatts == 0 && $hwSolarReturn != 0)){
        if ($debug == 'yes'){echo '  -- Lader 1 AAN - Lader 2 & 3 UIT'.PHP_EOL;}
        if ($chargerOneStatus == 'Off'){ switchHwSocket('one','On'); sleep(2);}
        if ($chargerTwoStatus == 'On'){ switchHwSocket('two','Off'); sleep(2);}
        if ($chargerThreeStatus == 'On'){ switchHwSocket('three','Off');}
    }

// Lader 2 AAN - Lader 1 & 3 UIT
    if (($P1ChargerUsage > $chargerOneTwoUsage && $P1ChargerUsage <= $chargerTwoUsage) && ($pvAvInputVoltage <= 26 && $pvAvInputWatts == 0 && $hwSolarReturn != 0)){
        if ($debug == 'yes'){echo '  -- Lader 2 AAN - Lader 1 & 3 UIT'.PHP_EOL;}
        if ($chargerTwoStatus == 'Off'){ switchHwSocket('two','On'); sleep(2);}
        if ($chargerOneStatus == 'On'){ switchHwSocket('one','Off'); sleep(2);}
        if ($chargerThreeStatus == 'On'){ switchHwSocket('three','Off');}
    }

// Lader 1 & 2 AAN - Lader 3 UIT
    if (($P1ChargerUsage > $chargerTotalUsage && $P1ChargerUsage <= $chargerOneTwoUsage) && ($pvAvInputVoltage <= 26 && $pvAvInputWatts == 0 && $hwSolarReturn != 0)){
        if ($debug == 'yes'){echo '  -- Lader 1 & 2 AAN - Lader 3 UIT'.PHP_EOL;}
        if ($chargerOneStatus == 'Off'){ switchHwSocket('one','On'); sleep(2);}
        if ($chargerTwoStatus == 'Off'){ switchHwSocket('two','On'); sleep(2);}
        if ($chargerThreeStatus == 'On'){ switchHwSocket('three','Off');}
    }

// Lader 1, 2, & 3 AAN
    if ($P1ChargerUsage <= $chargerTotalUsage && $pvAvInputVoltage <= 26 && $pvAvInputWatts == 0 && $hwSolarReturn != 0){
        if ($debug == 'yes'){echo '  -- Lader 1, 2, & 3 AAN'.PHP_EOL;}
        if ($chargerOneStatus == 'Off'){ switchHwSocket('one','On'); sleep(2);}
        if ($chargerTwoStatus == 'Off'){ switchHwSocket('two','On'); sleep(2);}
        if ($chargerThreeStatus == 'Off'){ switchHwSocket('three','On');}
    }

// Print Footer
    if ($debug == 'yes'){
    echo ' '.PHP_EOL;
    echo ' --------------------------------------'.PHP_EOL;
    echo ' --              The End             --'.PHP_EOL;
    echo ' --------------------------------------'.PHP_EOL;
    echo ' '.PHP_EOL;
    }
}
?>

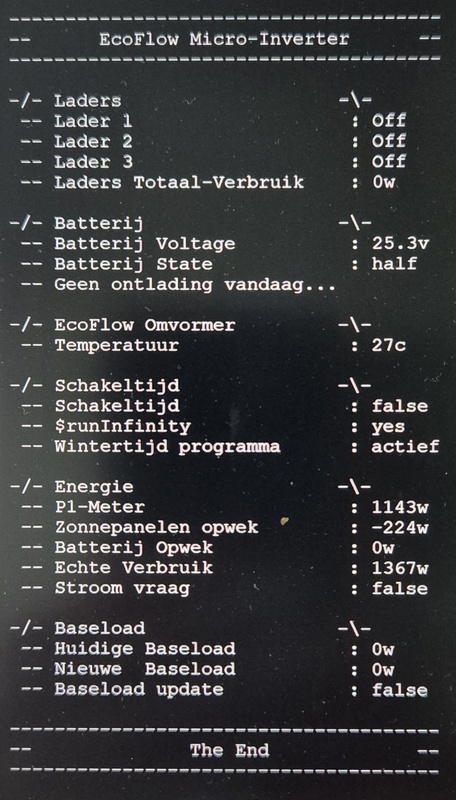

<?php
//                                                               //
// **************************************************************//
//          EcoFlow micro-inverter automatische baseload         //
//                          Variables                            //
// **************************************************************//
//                                                               //

// Debug?
    $debug                  = 'yes';                                // Waarde 'yes' of 'no'

// Tijd variables
    $invStartTime           = '00:00';                              // Omvormer starttijd
    $invEndTime             = '13:30';                              // Omvormer eindtijd
    $runInfinity            = 'yes';                                // Waarde 'yes' of 'no' of 'auto'. Bij 'auto' word er 50% soc behouden voor de nacht, Bij yes zal de omvormer starten met opwekken als de zonpanelen niks meer opwekken en worden de begin en eindtijd variables genegeerd

    $latitude              = '00.00000';                            // Latitude is de afstand – noord of zuid – tot de evenaar
    $longitude             = '-0.00000';                            // Longitude is de afstand in graden oost of west tot de Meridiaan in Greenwich
    $zenitLat              = '89.5';                                // Het hoogste punt van de hemel gezien vanuit het punt waar de waarnemer staat
    $zenitLong             = '91.7';                                // Het hoogste punt van de hemel gezien vanuit het punt waar de waarnemer staat
    $timezone              = 'Europe/Amsterdam';                    // Mijn php.ini slikt de timezone niet dus dan maar handmatig instelling

// Omvormer variables
    $ecoflowMaxOutput      = 600;                                // Maximale teruglevering (Watts) wat de omvormer kan/mag leveren.
    $ecoflowOutputOffSet   = 10;                                 // Trek deze value (watts) af van de nieuwe baseload, Deze value wordt alsnog van het net wordt getrokken om teruglevering te voorkomen
    $maxInvTemp            = 65;                                 // Maximale interne temperatuur, daarboven stopt de omvormer met terugleveren

// Homewizard variables
    $hwP1IP                 = '0.0.0.0';                            // IP Homewizard P1 Meter
    $hwKwhIP                = '0.0.0.0';                            // IP Homewizard Solar kwh Meter
    $hwEcoFlowIP            = '0.0.0.0';                            // IP Homewizard EcoFlow socket
    $hwChargerOneIP         = '0.0.0.0';                            // IP Homewizard Charger ONE 300w socket
    $hwChargerTwoIP         = '0.0.0.0';                            // IP Homewizard Charger TWO 600w socket

// Ecoflow Powerstream API variables
    $ecoflowPath            = '/path/to/files/';                    // Path waar je scripts zich bevinden
    $ecoflowAccessKey       = 'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx';   // Powerstream API access key
    $ecoflowSecretKey       = 'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx';   // Powerstream API secret key
    $ecoflowSerialNumber    = ['HWXXXXXXXXXXXXXX',];                // Powerstream serie nummer

//                                                               //
// **************************************************************//
//           EcoFlow micro-inverter automatic baseload           //
//                  Functions & Get/Set Data                     //
// **************************************************************//
//                                                               //

    if ($debug == 'yes'){
    echo ' '.PHP_EOL;
    echo ' --------------------------------------'.PHP_EOL;
    echo ' --      EcoFlow Micro-Inverter      --'.PHP_EOL;
    echo ' --------------------------------------'.PHP_EOL;
    echo ' '.PHP_EOL;
    }

// Include ecoflow API class file
    include(''.$ecoflowPath.'ecoflow-api-class.php');

// php.ini
    date_default_timezone_set(''.$timezone.'');

// Time/Date now
    $timeNow = date('H:i');
    $dateNow = date('Y-m-d H:i:s');
    $dateTime = new DateTime(''.$dateNow.'', new DateTimeZone(''.$timezone.''));

// Check DSt time
    $isDST = $dateTime->format("I");
    if ($isDST == '1'){
    $gmt = '1';
    } else {
    $gmt = '0';
    }

// Get EcoFlow Status
    $ecoflow = new EcoFlowAPI(''.$ecoflowAccessKey.'', ''.$ecoflowSecretKey.'');
    $serial_number = file_get_contents(''.$ecoflowPath.'serialnumber.txt');
    if ($serial_number === false) {
        if ($debug == 'yes'){
        echo '  -- ERROR: Can`t open file serialnumber.txt!'.PHP_EOL;
        echo ' '.PHP_EOL;
        echo '  --------------------------------------'.PHP_EOL;
        }
        exit(1);
    }

    if (empty(trim($serial_number))) {
        if ($debug == 'yes'){
        echo '  -- ERROR: Battery is empty!'.PHP_EOL;
        echo ' '.PHP_EOL;
        echo '  --------------------------------------'.PHP_EOL;
        }
        $ecoflow->setDeviceFunction($serial_number, 'WN511_SET_PERMANENT_WATTS_PACK', ['permanent_watts' => 0]);
        exit(0);
    } else {
        $inv = $ecoflow->getDevice($serial_number);
        if (!$inv || !isset($inv['data']['20_1.permanentWatts'])) {
        if ($debug == 'yes'){
        echo '  -- ERROR: Can`t GET EcoFlow inverter data!'.PHP_EOL;
        echo ' '.PHP_EOL;
        echo '  --------------------------------------'.PHP_EOL;
        }
        exit(1);
    }

// Get battery Voltage
    $pv1InputVolt         = ($inv['data']['20_1.pv1InputVolt']) / 10;
    $pv2InputVolt         = ($inv['data']['20_1.pv2InputVolt']) / 10;
    $pvAvInputVoltage     = ($pv1InputVolt + $pv2InputVolt) / 2;
    $batteryState = file_get_contents(''.$ecoflowPath.'batteryState.txt');

// Get Inverter output Watts
    $pv1InputWatts        = ($inv['data']['20_1.pv1InputWatts']) / 10;
    $pv2InputWatts        = ($inv['data']['20_1.pv2InputWatts']) / 10;
    $pvAvInputWatts       = ($pv1InputWatts + $pv2InputWatts);

// Get Current Baseload
    $currentBaseload      = ($inv['data']['20_1.permanentWatts']) / 10;

// Get Inverter Temperature
    $invTemp              = ($inv['data']['20_1.llcTemp']) / 10;

// Battery Empty?
    if ($pvAvInputVoltage <= 22.7) {
    $batterijEmpty = 1;
    } elseif ($pvAvInputVoltage >= 0 && $pvAvInputVoltage <= 23.35 && $pvAvInputWatts == 0) {
    $batterijEmpty = 1;
    } else {
    $batterijEmpty = 0;
    }

// Function GET HomeWizard data
    function getHwData($ip) {
        global $debug;
        $hwData = curl_init();
        curl_setopt($hwData, CURLOPT_URL, "http://".$ip."/api/v1/data");
        curl_setopt($hwData, CURLOPT_RETURNTRANSFER, true);
        $hwDataResult = curl_exec($hwData);

        if (curl_errno($hwData)) {
            if ($debug == 'yes'){
            echo ' -- ERROR: Kan geen gegevens op halen van Homewizard: '.$ip.'!'.PHP_EOL;
            echo ' '.PHP_EOL;
            echo ' --------------------------------------'.PHP_EOL;
            }
            exit(0);

        } else {

            $hwDataDecode = json_decode($hwDataResult);
            $hwDataDecoded         = round($hwDataDecode->active_power_w);
            return $hwDataDecoded;
            curl_close($hwData);
        }
    }

// Function GET HomeWizard (energy-socket) status
    function getHwStatus($ip) {
        global $debug;
        $hwChargerStatus = curl_init();
        curl_setopt($hwChargerStatus, CURLOPT_URL, "http://".$ip."/api/v1/state");
        curl_setopt($hwChargerStatus, CURLOPT_RETURNTRANSFER, true);
        $hwChargerStatusResult = curl_exec($hwChargerStatus);

        if (curl_errno($hwChargerStatus)) {
            if ($debug == 'yes'){
            echo ' -- ERROR: Kan geen gegevens op halen van Homewizard: '.$ip.'!'.PHP_EOL;
            echo ' '.PHP_EOL;
            echo ' --------------------------------------'.PHP_EOL;
            }
            exit(0);

        } else {

          $hwChargerStatusDecode = json_decode($hwChargerStatusResult);
          $hwChargerStatus  = abs($hwChargerStatusDecode->power_on);

          if ($hwChargerStatus == 1){
              $hwChargerStatus  = 'On';
          } else {
            $hwChargerStatus  = 'Off';
          }
          return $hwChargerStatus;
          curl_close($hwChargerStatus);
        }
    }

// HomeWizard GET Variables
    $hwP1Usage            = getHwData($hwP1IP);
    $hwSolarReturn        = getHwData($hwKwhIP);
    $hwInvReturn          = getHwData($hwEcoFlowIP);
    $hwChargerOneUsage    = getHwData($hwChargerOneIP);
    $hwChargerTwoUsage    = getHwData($hwChargerTwoIP);
    $hwChargerThreeUsage  = getHwData($hwChargerThreeIP);
    $ChargerOneStatus     = getHwStatus($hwChargerOneIP);
    $ChargerTwoStatus     = getHwStatus($hwChargerTwoIP);
    $ChargerThreeStatus   = getHwStatus($hwChargerThreeIP);

// SET/GET Usage Variables
    $productionTotal      = ($hwSolarReturn + $hwInvReturn);
    $realUsage            = ($hwP1Usage - $productionTotal);
    $newInfPVProduction   = abs($hwSolarReturn);

// Schakeltijd
    $sunrise              = (date_sunrise(time(),SUNFUNCS_RET_STRING,$latitude,$longitude,$zenitLat,$gmt));
    $sunset               = (date_sunset(time(),SUNFUNCS_RET_STRING,$latitude,$longitude,$zenitLong,$gmt));

    if ($runInfinity == 'no' && date('H:i') >= ( ''.$invStartTime.'' ) && date('H:i') <= ( ''.$invEndTime.'' ) && $batteryState != 'leeg') {
        $schedule = 1;

    } elseif ($runInfinity == 'yes' && date('H:i') >= ( '00:00' ) && date('H:i') <= ( ''.$sunrise.'' ) && $batteryState != 'leeg') {
        $schedule = 1;

    } elseif ($runInfinity == 'yes' && date('H:i') > ( ''.$sunrise.'' ) && date('H:i') <= ( ''.$sunset.'' ) && $batteryState == 'geladen') {
        $schedule = 1;

    } elseif ($runInfinity == 'yes' && date('H:i') > ( ''.$sunset.'' ) && date('H:i') <= ( '23:59' ) && $isDST == '1' && $batteryState != 'leeg') {
        $schedule = 1;

    } elseif ($runInfinity == 'yes' && date('H:i') > ( ''.$sunset.'' ) && date('H:i') <= ( '23:59' ) && $isDST == '0' && $batteryState == 'geladen') {
        $schedule = 1;

    } else {
        $schedule = 0;
    }

// Determine total charger usage
    $chargerUsage = ($hwChargerOneUsage + $hwChargerTwoUsage + $hwChargerThreeUsage);

// determine new baseload
    if ($hwP1Usage < $ecoflowMaxOutput){
        $newLoad = ($hwP1Usage + $currentBaseload) - $ecoflowOutputOffSet;

    } elseif ($hwP1Usage >= $ecoflowMaxOutput){
        $newLoad = $ecoflowMaxOutput;

    }

    if ($newLoad <= 0){
        $newBaseload = 0;
    } elseif ($newLoad > 0){
        $newBaseload = $newLoad;
    }

    $newInvBaseload = round($newBaseload) * 10;

// Set baseload to max
    if ($newBaseload > $ecoflowMaxOutput) {
        $newBaseload = $ecoflowMaxOutput;
        $newInvBaseload = ($ecoflowMaxOutput) * 10;
    }

// Set baseload to null when charging
    if ($ChargerOneStatus == 'On' || $ChargerTwoStatus == 'On' || $ChargerThreeStatus == 'On') {
        $newBaseload = 0;
        $newInvBaseload = 0;
    }

// Set baseload to null when battery empty
    if ($batterijEmpty == 1) {
        $newBaseload = 0;
        $newInvBaseload = 0;
    }

// Set baseload to null when SwitchTime is negative
    if ($schedule == 0) {
        $newBaseload = 0;
        $newInvBaseload = 0;
    }

// Set baseload to null when inverter has to return less then it can deliver
    if ($newBaseload <= 50 && $hwSolarReturn != 0) {
        $newBaseload = 0;
        $newInvBaseload = 0;
    }

// Set baseload to null when inverter is getting to hot
    if ($invTemp >= $maxInvTemp) {
        $newBaseload = 0;
        $newInvBaseload = 0;
    }

// Set baseload to null when SolarPower is higher then?
    if ($newInfPVProduction > $ecoflowMaxOutput) {
        $newBaseload = 0;
        $newInvBaseload = 0;
    }

// Set baseload to null when battery has not been fully charged during wintertime
    if ($isDST == '0' && $batteryState == 'leeg'){
        $newBaseload = 0;
        $newInvBaseload = 0;
    }

//                                                               //
// **************************************************************//
//           EcoFlow micro-inverter automatic baseload           //
//                    Print & Update Baseload                    //
// **************************************************************//
//                                                               //

// Print Lader Status
    if ($debug == 'yes'){
        echo ' -/- Laders                   -\-'.PHP_EOL;
        echo '  -- Lader 1                   : '.$ChargerOneStatus.''.PHP_EOL;
        echo '  -- Lader 2                   : '.$ChargerTwoStatus.''.PHP_EOL;
        echo '  -- Lader 3                   : '.$ChargerThreeStatus.''.PHP_EOL;
        echo '  -- Laders Totaal-Verbruik    : '.$chargerUsage.'w'.PHP_EOL;
        echo ' '.PHP_EOL;

// Print Battery Status
        echo ' -/- Batterij                 -\-'.PHP_EOL;
        echo '  -- Batterij Voltage          : '.$pvAvInputVoltage.'v'.PHP_EOL;
        if ($batterijEmpty == 1) {
        echo '  -- Batterij leeg!'.PHP_EOL;
        }
        echo '  -- Batterij State            : '.$batteryState.''.PHP_EOL;
        if ($batteryState != 'geladen' && $isDST == '0'){
        echo '  -- Geen ontlading vandaag...'.PHP_EOL;
        }
        echo ' '.PHP_EOL;

// Print Inverter Status
        echo ' -/- EcoFlow Omvormer         -\-'.PHP_EOL;
        echo '  -- Temperatuur               : '.$invTemp.'c'.PHP_EOL;
        echo ' '.PHP_EOL;

// Print Schakeltijd
        echo ' -/- Schakeltijd              -\-'.PHP_EOL;
        if ($runInfinity == 'no'){
        echo '  -- Start Tijd                : '.$invStartTime.''.PHP_EOL;
        echo '  -- Eind Tijd                 : '.$invEndTime.''.PHP_EOL;
        }

        if ($schedule == 1) {
        echo '  -- Schakeltijd               : true'.PHP_EOL;
        } else {
        echo '  -- Schakeltijd               : false'.PHP_EOL;
        }
        echo '  -- $runInfinity              : '.$runInfinity.''.PHP_EOL;
        if ($isDST == '1') {
        echo '  -- Zomertijd programma       : actief'.PHP_EOL;
        } else {
        echo '  -- Wintertijd programma      : actief'.PHP_EOL;
        }
        echo ' '.PHP_EOL;

// Print Energie Status
        echo ' -/- Energie                  -\-'.PHP_EOL;
        echo '  -- P1-Meter                  : '.$hwP1Usage.'w'.PHP_EOL;
        echo '  -- Zonnepanelen opwek        : '.$hwSolarReturn.'w'.PHP_EOL;
        echo '  -- Batterij Opwek            : '.$hwInvReturn.'w'.PHP_EOL;
        echo '  -- Echte Verbruik            : '.$realUsage.'w'.PHP_EOL;
        if ($newBaseload != 0) {
        echo '  -- Stroom vraag              : true'.PHP_EOL;
        } else {
        echo '  -- Stroom vraag              : false'.PHP_EOL;
        }
        echo ' '.PHP_EOL;

// Print Nieuwe Baseload
        echo ' -/- Baseload                 -\-'.PHP_EOL;
        echo '  -- Huidige Baseload          : '.$currentBaseload.'w'.PHP_EOL;
        echo '  -- Nieuwe  Baseload          : '.$newBaseload.'w'.PHP_EOL;
    }

// Update Baseload
    if ($newBaseload != $currentBaseload) {
        if ($debug == 'yes'){
        echo '  -- Baseload update           : true'.PHP_EOL;
        }
        $ecoflow->setDeviceFunction($serial_number, 'WN511_SET_PERMANENT_WATTS_PACK', ['permanent_watts' => $newInvBaseload]);
    } else {
        if ($debug == 'yes'){
        echo '  -- Baseload update           : false'.PHP_EOL;
        }
    }

// Print Footer
    if ($debug == 'yes'){
    echo ' '.PHP_EOL;
    echo ' --------------------------------------'.PHP_EOL;
    echo ' --              The End             --'.PHP_EOL;
    echo ' --------------------------------------'.PHP_EOL;
    echo ' '.PHP_EOL;
    }
}

?>

alias: Home Battery dynamic output power
description: Control the output powerstream via the cloud API
triggers:
  - entity_id:
      - sensor.p1_meter_power
    trigger: state
  - entity_id:
      - switch.s2
    trigger: state
conditions:
  - condition: template
    value_template: >-
      {{ output_setpoint | int(0) !=
      states('number.powerstream_6147_custom_load_power_settings') | int(0) }}
actions:
  - target:
      entity_id: number.powerstream_6147_custom_load_power_settings
    data:
      value: "{{ output_setpoint | float(0) | round }}"
    action: number.set_value
  - data:
      name: Powerstream
      message: output power was set to {{ output_setpoint }} Watt
    action: logbook.log
mode: queued
variables:
  output_setpoint: >-
    {{ iif(is_state('switch.s2', 'on'),
    states('sensor.powerstream_6147_inverter_output_watts'), 0) }}

{{(5.120+states('sensor.pqladers_totvermogen')|float-states('sensor.psbatt_energietotaalgeleverd')|float+states('input_number.BatterijOntladen')|float-states('input_number.BatterijBijgeladen')|float-(states('sensor.pqladers_totvermogen')|float-states('input_number.BatterijBijgeladen')|float)*0.19-(states('sensor.psbatt_energietotaalgeleverd')|float-states('input_number.BatterijOntladen')|float)*0.03)*19.53125 }}

alias: BatterijStatusUpdate (LEEG, SEMILEEG, LADING, VOL)
description: ""
triggers:
  - trigger: state
    entity_id:
      - sensor.soc
  - trigger: state
    entity_id:
      - sensor.powerstream_xxx1_inverter_on_off_status
    from: null
    to: unknown
  - trigger: state
    entity_id:
      - sensor.powerstream_xxx2_inverter_on_off_status
    from: null
    to: unknown
  - trigger: numeric_state
    entity_id:
      - sensor.pqlader1_vermogen
    for:
      hours: 0
      minutes: 0
      seconds: 5
    above: 2
    below: 15
conditions: []
actions:
  - choose:
      - conditions:
          - condition: numeric_state
            entity_id: sensor.soc
            above: 90
          - condition: or
            conditions:
              - type: is_power
                condition: device
                device_id: e43b132b92047b73c9dc49961c8393db
                entity_id: 30009ca02e2dda35bb2dab1777d88537
                domain: sensor
                above: 3
                below: 20
              - type: is_power
                condition: device
                device_id: 2443e57dbbad796fb88886a64d955e17
                entity_id: dce9204e9c87486ab08893a514d73234
                domain: sensor
                above: 3
                below: 20
        sequence:
          - action: input_text.set_value
            metadata: {}
            data:
              value: VOL
            target:
              entity_id: input_text.batterij_status
          - type: turn_off
            device_id: e43b132b92047b73c9dc49961c8393db
            entity_id: eff470098127d23a2d102a927237c144
            domain: switch
          - type: turn_off
            device_id: 2443e57dbbad796fb88886a64d955e17
            entity_id: e8295729f67725cac7d7c773049f16c9
            domain: switch
          - action: input_datetime.set_datetime
            metadata: {}
            target:
              entity_id: input_datetime.batterijvol
            data:
              timestamp: "{{ now().timestamp() }}"
          - action: input_number.set_value
            metadata: {}
            target:
              entity_id: input_number.batterijontladen
            data:
              value: "{{ states('sensor.psbatt_energietotaalgeleverd')|float() }}"
          - action: input_number.set_value
            metadata: {}
            target:
              entity_id: input_number.BatterijBijgeladen
            data:
              value: "{{ states('sensor.pqladers_totvermogen')|float() }}"
        alias: Batterij is VOL geladen
      - conditions:
          - condition: numeric_state
            entity_id: sensor.soc
            below: 100
          - condition: template
            value_template: "{{ states(\"input_text.batterij_status\") == 'VOL' }}"
        sequence:
          - action: input_text.set_value
            metadata: {}
            data:
              value: LADING
            target:
              entity_id: input_text.batterij_status
        alias: SoC < 100 dan STATUS = LADING
      - conditions:
          - condition: template
            value_template: >-
              {{ ( now().month not in [1,2,11,12] and
              states('sensor.soc')|int < 10 ) or
                ( now().month in [1,2,11,12] and states('sensor.soc')|int < 30 ) }}
        sequence:
          - action: input_text.set_value
            metadata: {}
            data:
              value: SEMILEEG
            target:
              entity_id: input_text.batterij_status
          - device_id: d21f6550f9156087a41d8ff55fbf08a2
            domain: number
            entity_id: 79f568f0d0c015e654b019979dbaa9a6
            type: set_value
            value: 0
          - device_id: 0592f01c77d21315a085c2676633e71b
            domain: number
            entity_id: 9159ce5d4a1dac39b88f42e3b7af065a
            type: set_value
            value: 0
        alias: Status naar SEMILEEG (10 of 30 in Winterperiode)
      - conditions:
          - condition: template
            value_template: >-
              {{ ( now().month not in [1,2,11,12] and
              states('sensor.soc')|int >= 10 ) or
                ( now().month in [1,2,11,12] and states('sensor.soc')|int >= 30 ) }}
          - condition: state
            entity_id: input_text.batterij_status
            state: SEMILEEG
        sequence:
          - action: input_text.set_value
            metadata: {}
            data:
              value: LADING
            target:
              entity_id: input_text.batterij_status
        alias: Status naar LADING (>=10 of >=30 in Winterperiode)
      - conditions:
          - condition: state
            entity_id: sensor.powerstream_xxx1_inverter_on_off_status
            state: unknown
            for:
              hours: 0
              minutes: 0
              seconds: 2
          - condition: state
            entity_id: sensor.powerstream_xxx2_inverter_on_off_status
            state: unknown
            for:
              hours: 0
              minutes: 0
              seconds: 2
          - condition: template
            value_template: "{{ states('sensor.soc')|int < 7 }}"
        sequence:
          - action: input_text.set_value
            metadata: {}
            data:
              value: LEEG
            target:
              entity_id: input_text.batterij_status
          - type: turn_on
            device_id: e43b132b92047b73c9dc49961c8393db
            entity_id: eff470098127d23a2d102a927237c144
            domain: switch
          - type: turn_on
            device_id: 2443e57dbbad796fb88886a64d955e17
            entity_id: e8295729f67725cac7d7c773049f16c9
            domain: switch
        alias: >-
          Powerstream uit en  soc < 7 dan bms kicked in, STATUS = LEEG - > start
          laden tot 10%
      - conditions:
          - condition: template
            value_template: >-
              {{ (states('sensor.soc')|int >=10 ) and
              (states('input_text.batterij_status') == 'LEEG') }}
        sequence:
          - action: input_text.set_value
            metadata: {}
            data:
              value: SEMILEEG
            target:
              entity_id: input_text.batterij_status
          - device_id: d21f6550f9156087a41d8ff55fbf08a2
            domain: number
            entity_id: 79f568f0d0c015e654b019979dbaa9a6
            type: set_value
            value: 0
          - device_id: 0592f01c77d21315a085c2676633e71b
            domain: number
            entity_id: 9159ce5d4a1dac39b88f42e3b7af065a
            type: set_value
            value: 0
          - type: turn_off
            device_id: e43b132b92047b73c9dc49961c8393db
            entity_id: eff470098127d23a2d102a927237c144
            domain: switch
          - type: turn_off
            device_id: 2443e57dbbad796fb88886a64d955e17
            entity_id: e8295729f67725cac7d7c773049f16c9
            domain: switch
        alias: Status LEEG en SoC >=10 dan STATUS naar SEMILEEG
mode: single
