"info": {
"largedisplay": 3, // on which connector the large display is hooked up?
"i2cs": [], // serial communication data probably
"connectors": [ // Which button+ modules are attached after the screen and the 2 buttons
{
"id": 3, // connector id, in this case the largedisplay
"type": 2 // I'm assuming this is some sort of unique type, for example type = 2 means buttons on display
},
{
"id": 4,
"type": 1 // I'm assuming this means default button component (1 left, 1 right)
}
],
"sensors": [] // future sensors on the esp32 probably will be in this array
},
"core": {
"name": "demo3", // Button+ set name
"location": "Living Room", // location where its found
"color": 15140872, // 24 bit integer representation of the main color
"invert": true // wether to invert colors
},
"mqttbuttons": [ // all possible available button configurations with what mqtt to publish or subscribe
{
"id": 0,
"label": "Btn 0",
"topics": []
},
{
"id": 1,
"label": "Btn 1",
"topics": []
},
{
"id": 2,
"label": "Btn 2",
"topics": []
},
{
"id": 3,
"label": "Btn 3",
"topics": []
},
{
"id": 4,
"label": "Btn 4",
"topics": []
},
{
"id": 5,
"label": "Btn 5",
"topics": []
},
{
"id": 6, // not following this id scheme yet, the left display button has id 6 for some reason. probably going over each connector and its type
"label": "Btn 8", // label of this button
"topics": [ // array of mqtt topics to publish or subscribe
{
"brokerid": "buttonplus",
"topic": "buttonplus/abc",
"payload": "dummy",
"eventtype": 0
// different types of event we can have topics for in mqtt:
// 0 = 'Click'
// 1 = 'Long press'
// 8 = 'Blue LED'
// 9 = 'Red LED'
// 10 = 'Green LED'
// 11 = 'Label'
// 12 = 'Toplabel'
// 13 = 'RGB Led'
// 14 = 'Led'
// 15 = 'Value'
// 16 = 'Label'
// 17 = 'Unit'
// 18 = 'Sensor value'
}
]
},
{
"id": 7,
"topics": []
},
{
"id": 8,
"label": "Tolomeo lamp",
"topics": [
{
"brokerid": "buttonplus",
"topic": "buttonplus/demo/tolomeo",
"payload": "ON",
"eventtype": 14
},
{
"brokerid": "buttonplus",
"topic": "buttonplus/demo/tolomeo/toggle",
"eventtype": 0
}
]
},
{
"id": 9,
"label": "Like",
"topics": [
{
"brokerid": "buttonplus",
"topic": "buttonplus/like",
"eventtype": 0
}
]
}
],
"mqttdisplays": [ // config for the largedisplay
{
"x": 0, // Horizontal postion of the item within the lcd (in % of the display width)
"y": 0, // Vertical postion of the item within the lcd (in % of the display width)
"fontsize": 4, // self explanatory
"align": 0,
// alignment for the text on the display using the following integers as map:
// 0 = 'Top Left'
// 1 = 'Top Center'
// 2 = 'Top Right'
// 3 = 'Center Left'
// 4 = 'Center Center'
// 5 = 'Center Right'
// 6 = 'Bottom Left'
// 7 = 'Bottom Center'
// 8 = 'Bottom Right'
"width": 60, // in % of the display width
"label": "Central European Time",
"round": 0, // Round the incoming payload to decimal places, 0 is round to whole numbers
"topics": [
{ // The mqtt topic to set as display data.
"brokerid": "buttonplus",
"topic": "system/datetime/amsterdam",
"eventtype": 15
}
]
},
{
"x": 0,
"y": 70,
"fontsize": 1,
"align": 0,
"width": 100,
"label": "BBC Tech",
"round": 0,
"topics": [
{
"brokerid": "buttonplus",
"topic": "buttonplus/rss/bbctech",
"eventtype": 15
}
]
},
{
"x": 0,
"y": 40,
"fontsize": 2,
"align": "0",
"width": 40,
"label": "Button+ Likes",
"topics": [
{
"brokerid": "buttonplus",
"topic": "buttonplus/likes",
"eventtype": 15
}
]
}
],

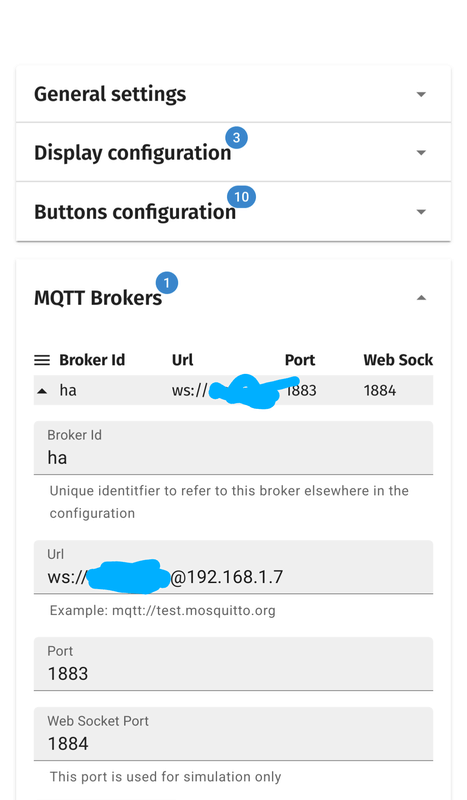

"mqttbrokers": [ // list of mqtt brokers to connect to
{
"brokerid": "buttonplus",
"url": "mqtt://mqtt.button.plus",
"port": 0,
"wsport": 0
}
],
"mqttsensors": []
} |
/u/3626/front-kabels.png?f=community)
:strip_icc():strip_exif()/u/113599/crop5e660a74a6246_cropped.jpeg?f=community)
:strip_icc():strip_exif()/u/23091/cyberspin.jpg?f=community)
:strip_icc():strip_exif()/u/202392/crop62972d4aa974a_cropped.jpg?f=community)
:strip_icc():strip_exif()/u/2026/DSC_2281.jpg?f=community)
:strip_icc():strip_exif()/u/61377/got_avatar.jpg?f=community){kind=avatar}
. Ik ben erg benieuwd! Kalm aan, tijd is altijd een ding (ik kan niet wachten om er mee te gaan prutsen) maar kwaliteit is veel belangrijker! Hij komt wanneer hij komt!
/u/1702/crop6457f8805fee9.png?f=community)
/u/212820/crop5aaa46d777390_cropped.png?f=community)
/u/201608/Pixel.png?f=community){kind=tracking}

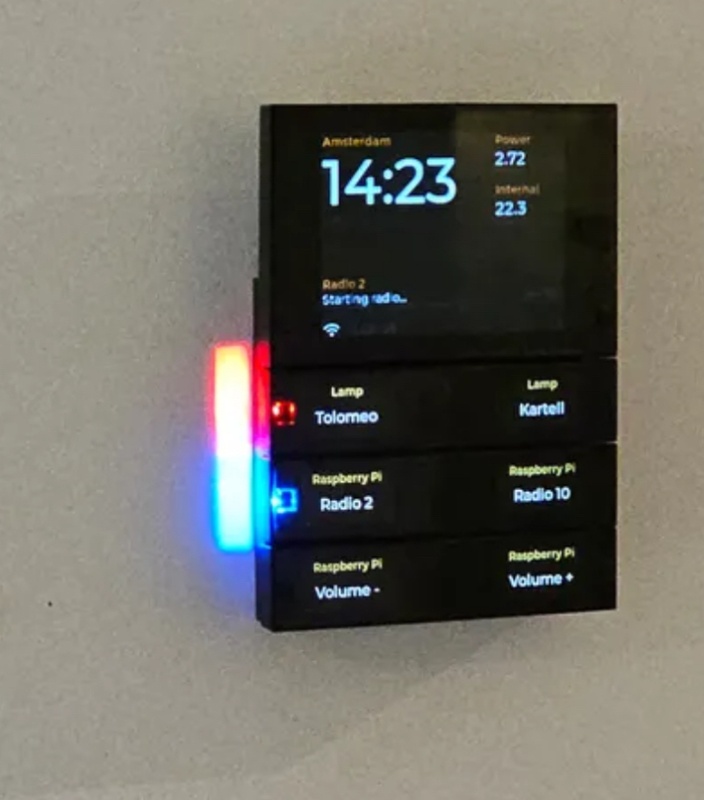

:no_upscale():strip_icc():fill(white):strip_exif()/f/image/8KtZ9x8lxFHGgqnBoyTX2EJ3.jpg?f=user_large)
:strip_icc():strip_exif()/u/1982846/crop64d155de9e4ed_cropped.jpg?f=community)
/u/366211/crop633ace019e8da_cropped.png?f=community)
:strip_icc():strip_exif()/u/12112/snake_av.jpg?f=community)

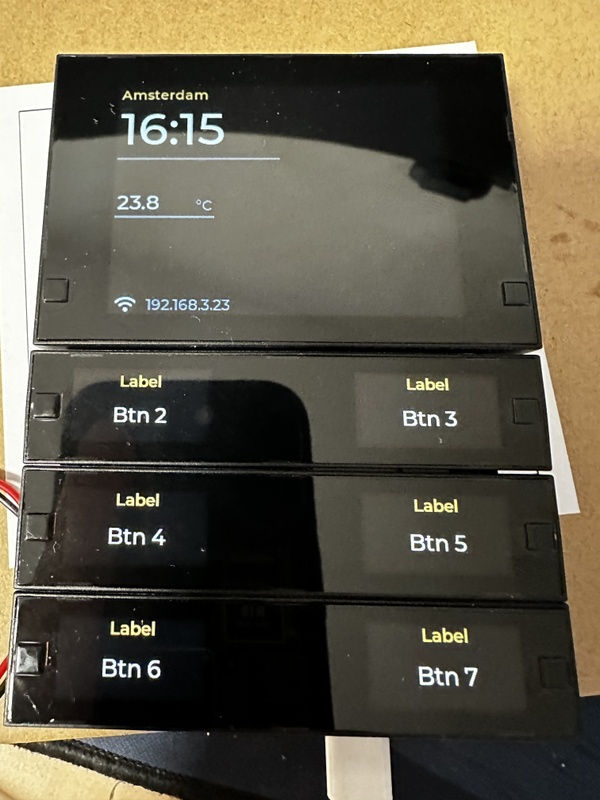

:no_upscale():strip_icc():fill(white):strip_exif()/f/image/0CLKemz5ylvP4Q3jqfjgmFTD.jpg?f=user_large)
:fill(white):strip_exif()/f/image/IXb0H29yhlKgrUfqNUKNk5FX.png?f=user_large)
Top! Nu kan ik lekker hobbyen in aanloop naar ontvangst van de Button+.:fill(white):strip_exif()/f/image/JnuT5B2L51Yc0gYNhJ6evxFc.png?f=user_large)
:strip_icc():strip_exif()/u/562170/crop609ea994a5396_cropped.jpg?f=community)
:fill(white):strip_exif()/f/image/N4HDkdouxuMlJ02ekcZMeJLq.png?f=user_large)
:no_upscale():strip_icc():fill(white):strip_exif()/f/image/c5o0586CUPAwlPq4bJyPtZQI.jpg?f=user_large)
