Ik geef weer of de warmtepomp loopt (dus dat de compressor loopt). Ik neem aan dat de ventilator dan ook draait, maar dat weet ik niet zeker.
De entiteit die ik hiervoor uitlees is:
entity: binary_sensor.ariston_is_heating_pump_on
Volgens mij moet je die in de integratie wel eerst actief maken.
Ik gebruik:
HACS
Ariston V3 integratie (voor aansturing ATAG Warmtepomp en ketel)
Custom Thermostat Card (voor thermostaat)
Mushroom cards (voor knoppen)
De code is:
code:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
| cards:
- type: custom:thermostat-card
title: Warmtepomp
entity: climate.nelissen
no_card: false
highlight_tap: true
- type: horizontal-stack
cards:
- type: custom:mushroom-template-card
primary: Warmtepomp
secondary: >-
{% if is_state('binary_sensor.ariston_is_heating_pump_on', 'on')
%} Aan {% else %} Uit {% endif %}
icon: mdi:heat-pump-outline
icon_color: >-
{% if is_state('binary_sensor.ariston_is_heating_pump_on', 'on')
%} green {% else %} grey {% endif %}
entity: binary_sensor.ariston_is_heating_pump_on
layout: vertical
tap_action:
action: none
hold_action:
action: none
double_tap_action:
action: none
- type: custom:mushroom-template-card
primary: Verwarmingsketel
secondary: >-
{% if is_state('binary_sensor.ariston_is_flame_on', 'on') %} Aan
{% else %} Uit {% endif %}
icon: mdi:fire
icon_color: >-
{% if is_state('binary_sensor.ariston_is_flame_on', 'on') %}
orange {% else %} grey {% endif %}
entity: binary_sensor.ariston_is_flame_on
layout: vertical
tap_action:
action: none
hold_action:
action: none
double_tap_action:
action: none
- type: custom:mushroom-template-card
primary: Stil
secondary: >-
{% if is_state('switch.ariston_is_quiet', 'on') %} Aan {% else %}
Uit {% endif %}
icon: mdi:volume-mute
icon_color: >-
{% if is_state('switch.ariston_is_quiet', 'on') %} blue {% else %}
grey {% endif %}
layout: vertical
tap_action:
action: toggle
hold_action:
action: none
double_tap_action:
action: none
entity: switch.ariston_is_quiet
- type: custom:mushroom-select-card
entity: select.ariston_hybrid_mode
icon: mdi:arrow-oscillating
name: Hybrid
fill_container: false
icon_color: purple
- type: horizontal-stack
cards:
- type: gauge
entity: sensor.ariston_heating_circuit_pressure
needle: true
min: 0
max: 2.5
segments:
- from: 0
color: '#db4437'
- from: 0.8
color: '#ffa600'
- from: 1
color: '#43a047'
- from: 2
color: '#ffa600'
- from: 2.4
color: '#db4437'
name: Systeemdruk
- graph: line
type: sensor
entity: sensor.ariston_ch_flow_setpoint_temp
detail: 1
name: Doel aanvoer temp
- type: horizontal-stack
cards:
- type: history-graph
entities:
- entity: binary_sensor.ariston_is_heating_pump_on
- entity: binary_sensor.ariston_is_flame_on
- entity: switch.ariston_is_quiet
hours_to_show: 12 |

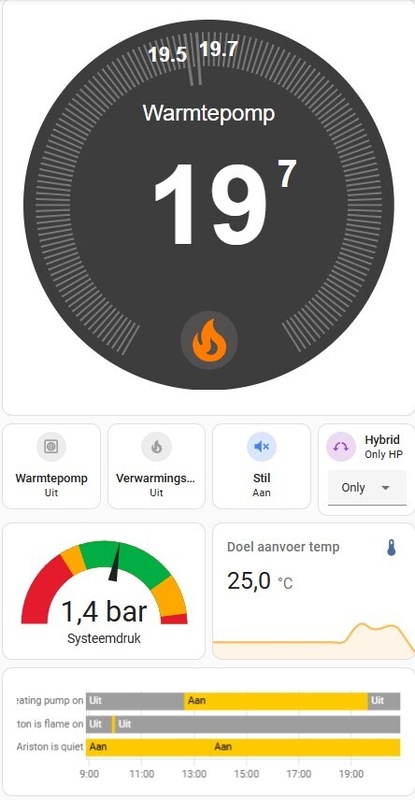

Voor dit resultaat:
:no_upscale():strip_icc():strip_exif()/f/image/hCr1ezjAXFmJWe3d5nKIhdHN.jpg?f=user_large)
:strip_exif()/f/image/th9iumvf9RDVPOqKgnkUAkTJ.png?f=user_large)
:no_upscale():strip_icc():strip_exif()/f/image/HUMlc5uHlqFv3VUxy0pIKXeY.jpg?f=user_large)
:no_upscale():strip_icc():strip_exif()/f/image/nzbVjJNLwvZgsbzQXwbLUipf.jpg?f=user_large)
:no_upscale():strip_icc():strip_exif()/f/image/1zLsfgaTbN9g3VhhxvAmwZsE.jpg?f=user_large)
:no_upscale():strip_icc():strip_exif()/f/image/MkkAD238py9VrsdmWGGNpJCX.jpg?f=user_large)
:no_upscale():strip_icc():strip_exif()/f/image/P1Uu7GBuvyK8EnArs3Or2JCA.jpg?f=user_large)
:no_upscale():strip_icc():strip_exif()/f/image/VeU28QR1v29z0p0tXOjeGAyk.jpg?f=user_large)
:no_upscale():strip_icc():strip_exif()/f/image/WIILwsXBjCVmFW72wRTxULVJ.jpg?f=user_large)
:strip_exif()/f/image/9qIjTaLIcQrkTDCZ8gKSgrXv.png?f=user_large)
:no_upscale():strip_icc():strip_exif()/f/image/8LA1JlvPK83QBWnbjBPCN5ga.jpg?f=user_large)
:no_upscale():strip_icc():strip_exif()/f/image/3Ty69XPKzXzMhGY0vKNhXp8Z.jpg?f=user_large)
:no_upscale():strip_icc():strip_exif()/f/image/11xItf3pxME2YzXggNLMnG9f.jpg?f=user_large)
:no_upscale():strip_icc():strip_exif()/f/image/8J7A4rRgKXGLL7FgBRSUL2wB.jpg?f=user_large)
:strip_exif()/f/image/JtG4YDcEFMl9hnEmTNbkOwWN.png?f=user_large)
:strip_exif()/f/image/J2HDBc4FwiOcjZKNuOQfF4za.png?f=user_large)
Onze kamer themperatuur is vanaf 13:00 uur tot 22:00 uur 20 graden en de rest 19 gr :strip_exif()/f/image/UPmvu64gSPIQZDybU2dqryQ5.png?f=user_large)
:strip_exif()/f/image/oocCr2wvh3acX6LMJWQiaUsW.png?f=user_large)
:strip_exif()/f/image/zh0XnpUnAijRBSeNtJga8IqS.png?f=user_large)
:no_upscale():strip_icc():strip_exif()/f/image/YiXs2FisFZajasmkiP74zGHe.jpg?f=user_large)
