Misschien nog wel even te vermelden over de standaard LED verlichting, zo zien de units er uit:
Here is detail of functions of the matrix version:
100% LED version
Light output low beam 900lm, high beam 140 lx
Automatic masking and adaptation to multiple objects simultaneously via two-line MatrixBeam (24 pixels)
Reduction of glare with reflective objects (Traffic sign)

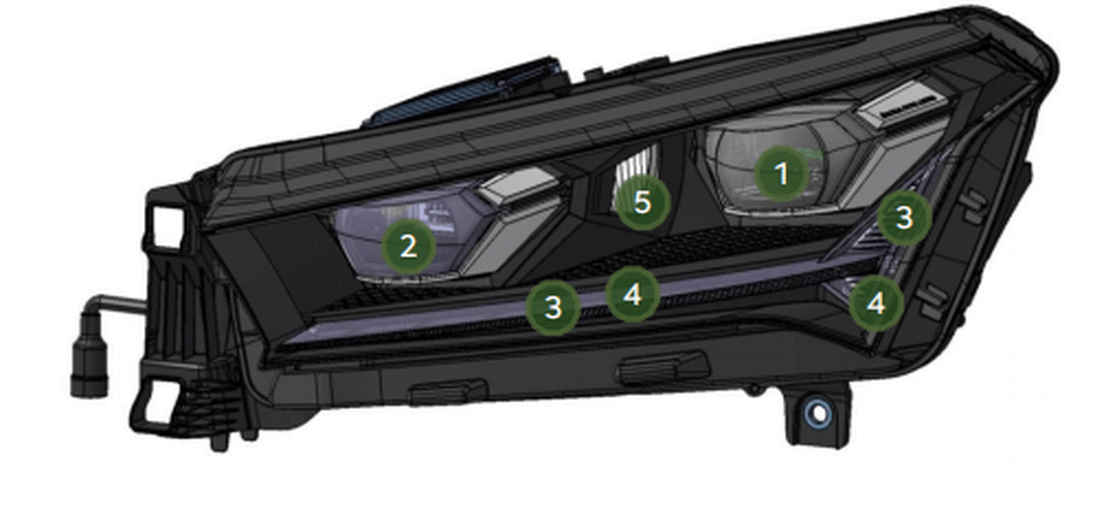

Detail:
:fill(white):strip_exif()/f/image/UqQRAa1nUBCTuHGzsCj7BDWe.png?f=user_large)
1 - low beam (Bi-LED)
2 - high beam (MATRIX BEAM 24 pixels)
3 - Flashing light (LED)
4 - daytime running lights (LED)
5 - Side light / Fog light (LED)

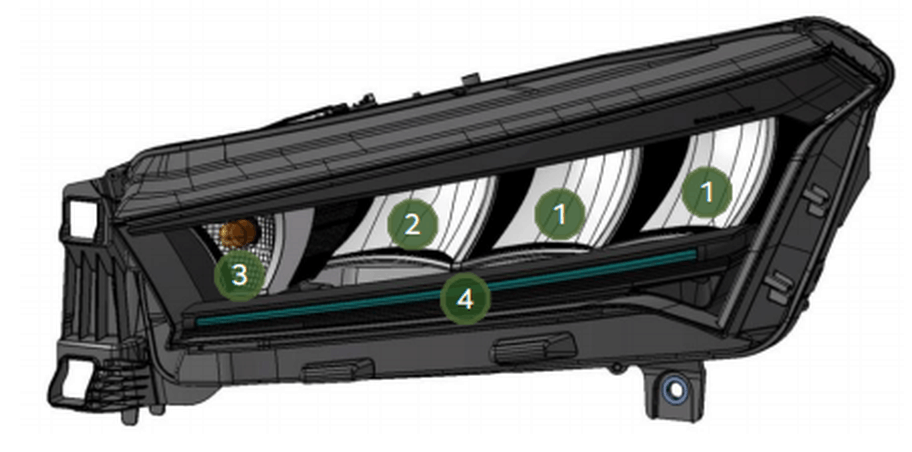

Standard version:
LED version, flashing light bulb
Light output low beam 580 lm, high beam 105 lx
:fill(white):strip_exif()/f/image/FHtbp4fN9Ooi7P0WXu8AS7JH.png?f=user_large)
1 - low beam (LED)
2 - high beam (LED)
3 - Flashing light (1x light bulb)
4 - Daytime running lights / position lights (LED)
Rear lights (Matrix version):
Two-part full LED
The crystal area is actively / passively illuminated
Rear fog light / reversing light both sides
Animated flashing light
Animation when the tailgate is opened
Coming-Home / Leaving-Home animation
(3 variants of animation can be selected in HMI)
:fill(white):strip_exif()/f/image/qlnuU6GGzLumdGpzRZ0Brl8y.png?f=user_large)
1 - taillight
2 - brake light
3 - flashing light
4 - reversing light (both sides)
5 - rear fog light (both sides)
6 - crystal illuminated
Standard version:
Two-part full LED
Crystal area not illuminated
Rear fog light / reversing light on driver's side only
Without animation functions
1 - taillight
2 - brake light
3 - flashing light
4 - reversing light (driver side only)
5 - rear fog light (driver side only)
Qua standaard verlichting: de configurators laten alle ook het deel in de achterklep verlicht zien, maar dat is dus niet zo! En in de koplampunits zitten dus voor de richtingaanwijzers nog halogeen lampjes!
