Nestorix schreef op dinsdag 23 april 2024 @ 10:24:
Ik had al een afspraak staan voor het uitvoeren van updates (omdat dat OTA niet schijnt/lijkt te werken). Net een paar dagen voor die afspraak heb ik een lege 12V accu. Dit gebeurde nadat 2/3 weken geleden de auto plotsklaps met problemen kwam (koffiekopje, zwart scherm, etc) die ik de eerste 5000 km niet had.
De onderstaande lijst is de lijst van updates die er sinds 5 februari zijn (dat is de datum waarom de dealer vlak voor de levering alle toen beschikbare updates erop gezet had waardoor toen het koffiekopje probleem voorbij was en ook wireless Apple Carplay beschikbaar was).
Het is dus een flinke lijst en ik zie zeker een paar dingen erop staan die gerelateerd aan de problemen lijken te zijn. Wat ik nog steeds niet begrijp is waarom bij mij (en anderen op dit forum) de problemen 2 tot 3 weken geleden plotseling begonnen: Is dit een mislukte OTA update van KIA geweest? Is dit het gevolg van een bijna lege accu als gevolg van een ander probleem? Is dit een software bug met overlopende tellers of zoiets? Niet duidelijk.
De auto staat nu nog bij de dealer dus ik ben benieuwd of er nog meer updates bij zijn gekomen ondertussen.

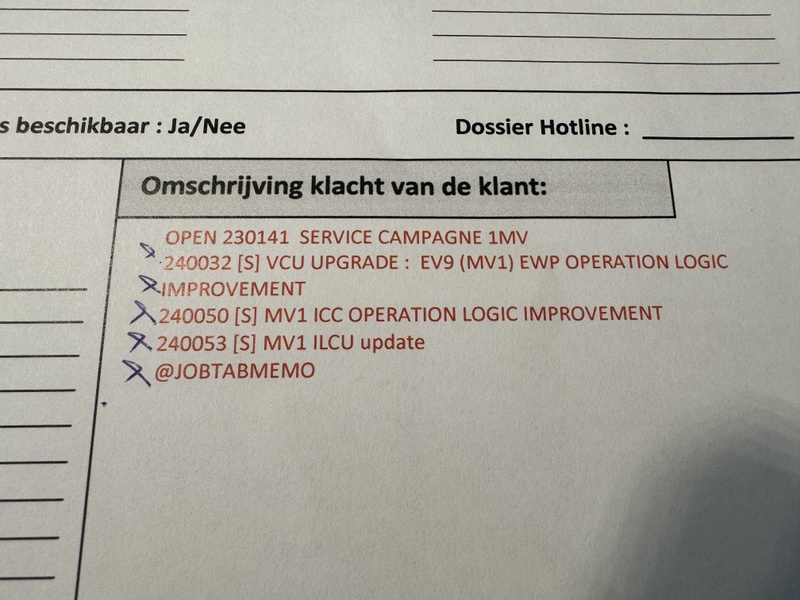

Ik had geprinte versies gekregen van de dealer dus de onderstaande tekst is met foto-tekst herkenning overgezet. Ik heb het niet uitgebreid gecontroleerd op fouten.
Opvallend is dat er op de laatste TSB een Nederlandse tekst bijstaat om duidelijk te maken dat de update voor de linker en de rechter koplamp moet gebeuren. Blijkbaar vond KIA Nederland het niet duidelijk genoeg voor onze Nederlandse monteurs. Overigens bijzonder dat elke koplamp zijn eigen software update nodig heeft.
De lijst tot nu toe (vanaf +- 5 februari):
VCU UPGRADE: EV9 (MV1) EWP OPERATION LOGIC IMPROVEMENT
KCE24-16-E051-MV1 | Service Action
BACKGROUND
This bulletin provides information on the Vehicle Control Unit (VCU) upgrade procedure to improve the EWP (Electric Water Pump) operation logic when AC charging.
There is a deviation between the practical temperature and sensing temperature inside the ICCU (Integrated Charging Control Unit) that increases in cold weather.
* Condition: Deviation between the practical temperature and sensing temperature is too high during AC charging in cold weather.
* Correction: VCUS/W upgrade by KDS.
ICC UPGRADE: MV1 ICC OPERATION LOGIC IMPROVEMENT
KCE24-92-E180-MV1 | Service Action
BACKGROUND
This bulletin provides procedures for an In-Cabin Camera (ICC) software upgrade to EV 9 (MVI) vehicles that relaxes the conditions for dismissing driver drowsiness warning notifications.
* Correction: Progress the In-Cabin Camera (ICC) upgrade via the KDS 2.0 diagnostic device.
VCU UPGRADE: OPERATION LOGIC IMPROVEMENT FOR 12V BATTERY
KCE23-16-E162-MV1 | Service Action
BACKGROUND
This bulletin provides instructions for updating the VCU (Vehicle Control Unit) software to correct an issue whereby the EV9 (MV1) may remain in charge mode after charging is complete if "Start Charging" is pressed repeatedly via the Kia Connect app during a full charge, resulting in the 12V battery discharging during extended parking.
- For the stocked vehicle by OTA failure, please progress the upgrade using Automatic Mode, the same as the original way.
- For the EV9 (MVI) vehicle in which ECU upgrade is successfully completed, "OTA initialization" must be progressed after the ECU upgrade. For service details, please refer to "SERVICE PROCEDURE AFTER UPGRADE"
* Use OTA control version update ONLY when replacing the OTA controller with a new one.
PSM UPGRADE: POWER SEAT MODULE (PSM) OPERATION LOGIC IMPROVEMENT
KCE23-92-E910-MV1 | Service Action
BACKGROUND
This bulletin provides instructions for the Power Scat Module (PSM) upgrade procedure to improve the behaviour of Easy Assist and Leg Rest on EV9 (MV1) vehicles.
PDC UPGRADE: POWERNET DOMAIN CONTROL (PD) JUDGMENT LOGIC IMPROVEMENT
KCE23-92-E740-MV1 | Service Action
BACKGROUND
This bulletin provides the POWERNET DOMAIN CONTROL (PDC) S/W upgrade procedure which ensures that 12V battery diagnosis on EV9 (MV1) can complete from the diagnostic equipment.
- For the stocked vehicle by OTA failure, please progress the upgrade using Automatic Mode. the same as the original way:
- For the EV9 (MVI) vehicle in which ECU upgrade is successfully completed, "OTA initialization" must be progressed after the ECU upgrade. For the service details, please refer to
"SERVICE PROCEDURE AFTER UPGRADE"
* Use OTA control version update ONZY when replacing the OTA controller with a new one.
BDC UPGRADE: BODY DOMAIN CONTROLLER(BDC) RESET LOGIC IMPROVEMENT
KCE23-92-E721-MV1 | Service Action
This bulletin provides the BODY DOMAIN CONTROLLER(BDC) S/W upgrade procedure that instructs door lock/unlock function operating well by smartphone (digital key) on EV9 (MVI) vehicles.
- Please be sure to connect an external power bank to your vehicle before proceeding with this software upgrade.
- For the stocked vehicle by OTA failure, please progress the upgrade using Automatic Mode, the same as the original way.
- For the EV9 (MVI) vehicle in which ECU upgrade is successfully completed, "OTA initialization" must be progressed after the ECU upgrade. For the service details, please refer to
"SERVICE PROCEDURE AFTER UPGRADE"
* Use OTA control version update ONLY when replacing the OTA controller with a new one.
SCM UPGRADE: STEERING COLUMN MODULE (SCM) TILT MOTOR OPERATION LOGIC IMPROVEMENT
KCE23-92-E700-MV1 | Service Action
This bulletin provides a STEERING COLUMN MODULE (SCM) S/W upgrade procedure to resolve the issue that the steering wheel didn't keep to the setting location when getting on some EV9 (MVI) vehicles.
- For the stocked vehicle by OTA failure, please progress the upgrade using Automatic Mode, the same as the original way:
- For the EV9 (MVI) vehicle in which ECU upgrade is successfully completed, "OTA initialization" must be progressed after the ECU upgrade. For the service details, please refer to
"SERVICE PROCEDURE AFTER UPGRADE"
* Use OTA control version update ONLY when replacing the OTA controller with a new one.
SCU UPGRADE: SHIFTING AND DIAGNOSTIC LOGIC IMPROVEMENT (P106900, P28E812)
KCE23-52-E070-MV1 | Service Action
This bulletin provides the S/W upgrade procedure of SCU that improves the shifting by clearly identifying the shift lever in P-position on EV9 (MV1) vehicles.
- For the stocked vehicle by OTA failure, please progress the upgrade using Automatic Mode, the same as the original way.
- For the EV9 (MVI) vehicle in which ECU upgrade is successfully completed, "OTA initialization" must be progressed after the ECU upgrade. For the service details, please refer to
"SERVICE PROCEDURE AFTER UPGRADE"
* Use OTA control version update ONLY when replacing the OTA controller with a new one.
PTGM UPGRADE: MV1 PTGM (POWER TAIL GATE MODULE) OPERATION LOGIC IMPROVEMENT
KCE23-92-E760-MV | Service Action
This bulletin provides the upgrade procedure for operation logic improvement of PTGM (POWER TAIL GATE MODULE)S/W on EV9 (MV1) vehicles.
- This campaign event does not provide an OTA update. Please proceed with the upgrade using the auto mode (manual mode) of KDS same as the original way.
ILCU UPGRADE: MV1 INTEGRATED LED HEADLAMP CONTROL UNIT (ILCU) OPERATION LOGIC IMPROVEMENT
KCE24-92-240-MV1 | Service Action
Let op! Het is dus de bedoeling dat je zowel de linker als rechter unit een update geeft. Je doet dus voor deze Service Action 2 updates op 1 voertuig.
This bulletin provides an integrated LED headlamp control Unit (ILCU) Upgrade procedure which ensures that unnecessary electricity consumption of 12V battery is not made on EV9 (MV1) vehicles.
* Condition: Integrated LED Headlamp Control Unit (ILCU) controller consumes unnecessary electricity on Standby mode by switching to active mode.
* Correction: Perform the integrated LED headlamp control Unit (ILCU) Upgrade (#1110, #1111) through KDS 2.0 diagnostic device.
CAUTION
- Integrated LED headlamp Control Unit (ILCU) Upgrade is needed to progress two times for LH (#1110) and RH (#1111).
