| /* Arduino 'slimme meter' P1-port reader.
This sketch reads data from a Dutch smart meter that is equipped with a P1-port.
Connect 'RTS' from meter to Arduino pin 5V
Connect 'GND' from meter to Arduino GND
Connect 'RxD' from meter to Arduino pin 8 (RX)
Baudrate 115200, 8N1.
A BS170 transistor & 10k resistor, or an 7404 IC inverter is needed to make data readable if meter spits out inverted data
see: http://domoticx.com/p1-poort-slimme-meter-uitlezen-hardware/ for connection examples
I used the 7404 IC inverter, this requires no resistors.
The TM1638 7 segment display will have 8 "menu's". Switch between menu's using the buttons:
Menu 1: Show currently use electricity in Watt
Menu 2: Show used electricity today in Wh
Menu 3: Show used gas today in liters
Menu 4: Show seconds left for day counter
Menu 5: Show total low Tariff in kWh
Menu 6: Show total high Tariff in kWh
Menu 7: Show total gas in m3
Menu 8: Show days running (uptime)
If you do not have a TM1638 7 segment display you can disable the following methods in the loop():
- fillDayReport();
- buttonPress();
- displayMenu();
Modify the sendHTTPRequest() method to the required information to your needs.
created by 'The_FrankO' @ Tweakers.net, march 2016
Inspired by the sketch created by 'ThinkPad' @ Tweakers.net, september 2014
\[TOPIC=1601301]Hulp bij slimme meter uitlezen met Arduino naar MySQL\[/TOPIC]
*/
// Required for Ethernet
#include <Ethernet.h>
// Required for Display Module
#include <TM1638.h>
// Required for non-hardware Serial
// TODO: remove when using hardware Serial
#include <AltSoftSerial.h>
AltSoftSerial altSerial;
// For Ethernet
byte mac[] = {0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED};
IPAddress ip(192, 168, 2, 177); // IP Address for Arduino
IPAddress server(192, 168, 2, 7); // IP Address of server where to send data to
EthernetClient client; // Initialize the library instance:
// For the TM1638 Display
const byte dataPin = 7;
const byte clockPin = 6;
const byte strobePin = 9;
TM1638 module(dataPin, clockPin, strobePin);
// Data object containing the last telegram readout of the SmartMeter
struct Telegram {
unsigned int telegramCount; // How many telegrams received
String content; // The entire Telegram received from the Smart Meter
unsigned long elecLowTariff; // Meter reading Electrics - consumption low tariff in Wh
unsigned long elecHighTariff; // Meter reading Electrics - consumption high tariff in Wh
unsigned int elecConsumption; // Meter reading Electrics - actual consumed in W
unsigned long gasConsumption; // Meter reading Gas - consumed gas in liters
String gasLastReadOut; // Last Gas meter reading
boolean isElecHighTariff; // Meter reading Electrics - currently in low or high tariff
boolean isNew; // Will reset to false after once read, turn to true after new telegram
boolean isReady; // Will be set to true when entire telegram has been received
boolean isNewToDisplay; // Will reset to true after a new telegram has been decoded. Will be set to false by display
boolean isNewToSend; // Will reset to true after a new telegram has been decoded. Will be set to false by httprequest
};
Telegram telegram;
// Data object containg the report of the day, will reset after every day
struct DayReport {
unsigned int dayReportCount; // How many days
unsigned long millisInDayLeft; // millis left in this day report
unsigned long elecLowTariffBeginOfDay; // Meter reading Electrics - consumption low tariff in Wh
unsigned long elecHighTariffBeginOfDay; // Meter reading Electrics - consumption high tariff in Wh
unsigned long gasConsumptionBeginOfDay; // Meter reading Gas - consumed gas in liters
};
DayReport dayReport;
// For menu
byte menu = 1;
const unsigned long millisInDayTotal = 86400000; // total millis in one day
unsigned long previousMillis = 0;
void setup() {
// Set day countdown
dayReport.millisInDayLeft = millisInDayTotal;
// Start Serial to connect P1 Smart Meter
Serial.begin(9600);
altSerial.begin(115200);
// Disable the SD Card
pinMode(4, OUTPUT);
digitalWrite(4, HIGH);
// Start the Ethernet connection
delay(1000);
Ethernet.begin(mac, ip);
// Set brightness to lowest for the display module
module.setupDisplay(true, 0);
}
void loop() {
receiveTelegram();
decodeTelegram();
fillDayReport();
buttonPress();
displayMenu();
sendHTTPRequest();
}
// Will fill the dayReport, if first day or new day will use data from the telegram
void fillDayReport() {
// No telegram received? no need to create the day report yet
if (telegram.telegramCount == 0) {
return;
}
unsigned long currentMillis = millis();
unsigned long progressedMillis = currentMillis - previousMillis;
previousMillis = currentMillis;
boolean isNewDay = dayReport.millisInDayLeft <= progressedMillis;
if (dayReport.dayReportCount == 0 || isNewDay) {
// first time here or new day?, take values from telegram
dayReport.dayReportCount++;
dayReport.millisInDayLeft = millisInDayTotal;
dayReport.elecLowTariffBeginOfDay = telegram.elecLowTariff;
dayReport.elecHighTariffBeginOfDay = telegram.elecHighTariff;
//dayReport.elecLowTariffReturnBeginOfDay = telegram.elecLowTariffReturn;
//dayReport.elecHighTariffReturnBeginOfDay = telegram.elecHighTariffReturn;
dayReport.gasConsumptionBeginOfDay = telegram.gasConsumption;
} else {
dayReport.millisInDayLeft = dayReport.millisInDayLeft - progressedMillis;
}
}
// Display the data, based on which menu
void displayMenu() {
// If no new data is to be displayed
// And we are not looking at menu 4 (contains countdown)
// TODO: staat uit omdat anders twee keer een waarde zetten op display niet goed gaat, blijft namelijk alleen de laatste over
// if (!telegram.isNewToDisplay && menu != 4) {
// // nothing to do here, so we are done
// return;
// }
// Turn LED 8 on/off based on tariff
module.setLED(telegram.isElecHighTariff, 7);
switch (menu) {
case 1: // Show currently use electricity in Watt
module.setDisplayToString(F("Cur"), 0b00100000);
module.setDisplayToDecNumber(telegram.elecConsumption, 0, false);
break;
case 2: // Show used electricity today in Wh
module.setDisplayToString(F("tot"), 0b00101010);
module.setDisplayToDecNumber(((telegram.elecLowTariff - dayReport.elecLowTariffBeginOfDay) + (telegram.elecHighTariff - dayReport.elecHighTariffBeginOfDay)), 0, false); // will show high and low together
break;
case 3: // Show used gas today in liters
module.setDisplayToString(F("Gas"));
module.setDisplayToDecNumber(telegram.gasConsumption - dayReport.gasConsumptionBeginOfDay, 0, false);
break;
case 4: // Show seconds left for day counter
module.setDisplayToDecNumber(dayReport.millisInDayLeft / 1000, 0, false);
break;
case 5: // Show total low Tariff in kWh
module.setDisplayToString(F("L"));
module.setDisplayToDecNumber(telegram.elecLowTariff, 0b10001000, false);
break;
case 6: // Show total high Tariff in kWh
module.setDisplayToString(F("H"));
module.setDisplayToDecNumber(telegram.elecHighTariff, 0b10001000, false);
break;
case 7: // Show total gas in m3
module.setDisplayToString(F("G"));
module.setDisplayToDecNumber(telegram.gasConsumption, 0b10001000, false);
break;
case 8: // Days running
module.setDisplayToDecNumber(dayReport.dayReportCount, 0, false);
break;
}
// Now we've send the data to the display, it no longer is new to us
telegram.isNewToDisplay = false;
}
char previousChar;
// Receive the entire telegram from the Smart Meter and store it in memory
void receiveTelegram() {
while (altSerial.available()) {
char inChar = (char) altSerial.read();
if (inChar == '/') {
telegram.isReady = false;
telegram.isNew = true;
telegram.content = "";
}
// Add char to the Telegram String
telegram.content += inChar;
// Check to see if end of telegram
if (inChar == '!' && previousChar == '\n') {
telegram.isReady = true;
// TODO: prints weggooien
Serial.println(F("\n\nData received!\n\n\n"));
Serial.println(telegram.content);
}
// Save the current char as previous char, will be used to better handle corrupt messages
previousChar = inChar;
}
}
// Decode the received telegram and extract the required information
int telegramStringSearchPosition;
void decodeTelegram() {
// If telegram is not complete yet, or if no new telegram has been reported...
if (!telegram.isReady || !telegram.isNew) {
// ... we will not try to decode it
return;
}
// Fill the telegram object
telegramStringSearchPosition = 0;
telegram.telegramCount++;
telegram.elecLowTariff = retrieveValue(F("1-0:1.8.1"), 10, 1);
telegram.elecHighTariff = retrieveValue(F("1-0:1.8.2"), 10, 1);
telegram.isElecHighTariff = retrieveValue(F("0-0:96.14.0"), 1, 4) - 1;
telegram.elecConsumption = retrieveValue(F("1-0:1.7.0"), 6, 1);
telegram.gasLastReadOut = retrieveStringValue(F("0-1:24.2.1"), 13, 1);
telegram.gasConsumption = retrieveValue(F("0-1:24.2.1"), 9, 16);
// We have decoded this telegram, so no longer new to us
telegram.isNew = false;
// But it is new to the display
telegram.isNewToDisplay = true;
// Also it is new so we can send it
telegram.isNewToSend = true;
// Clear the content to save memory
telegram.content = "";
}
// Convert to long value, kWh will be in Wh and m3 will be in liters.
long retrieveValue(String property, int valueLength, int valueOffset) {
float value = retrieveStringValue(property, valueLength, valueOffset).toFloat();
return (long) (value * 1000.0);
}
String retrieveStringValue(String property, int valueLength, int valueOffset) {
int propertyStartIndex = telegram.content.indexOf(property, telegramStringSearchPosition);
// Only when found we will do something to search the value
if (propertyStartIndex > 0) {
// Set this position, we know for the next property where we can start
telegramStringSearchPosition = propertyStartIndex;
// Extract the actual value and return it
int valueStartIndex = propertyStartIndex + property.length() + valueOffset;
return telegram.content.substring(valueStartIndex, valueStartIndex + valueLength);
}
return "";
}
void buttonPress() {
byte keys = module.getButtons();
// If a button is pressed, switch of all LED first and clear the data
if (keys > 0) {
module.setLEDs(0x00); // turn of all LEDs
module.clearDisplay(); // clear display
} else {
// If no button is pressed, we are done here
return;
}
switch (keys) {
case 0:
break;
case 1:
menu = 1;
break;
case 2:
menu = 2;
break;
case 4:
menu = 3;
break;
case 8:
menu = 4;
break;
case 16:
menu = 5;
break;
case 32:
menu = 6;
break;
case 64:
menu = 7;
break;
case 128:
menu = 8;
break;
default:
break;
}
module.setLED(TM1638_COLOR_RED, menu - 1);
// When the button is pressed, we have something new to display
telegram.isNewToDisplay = true;
}

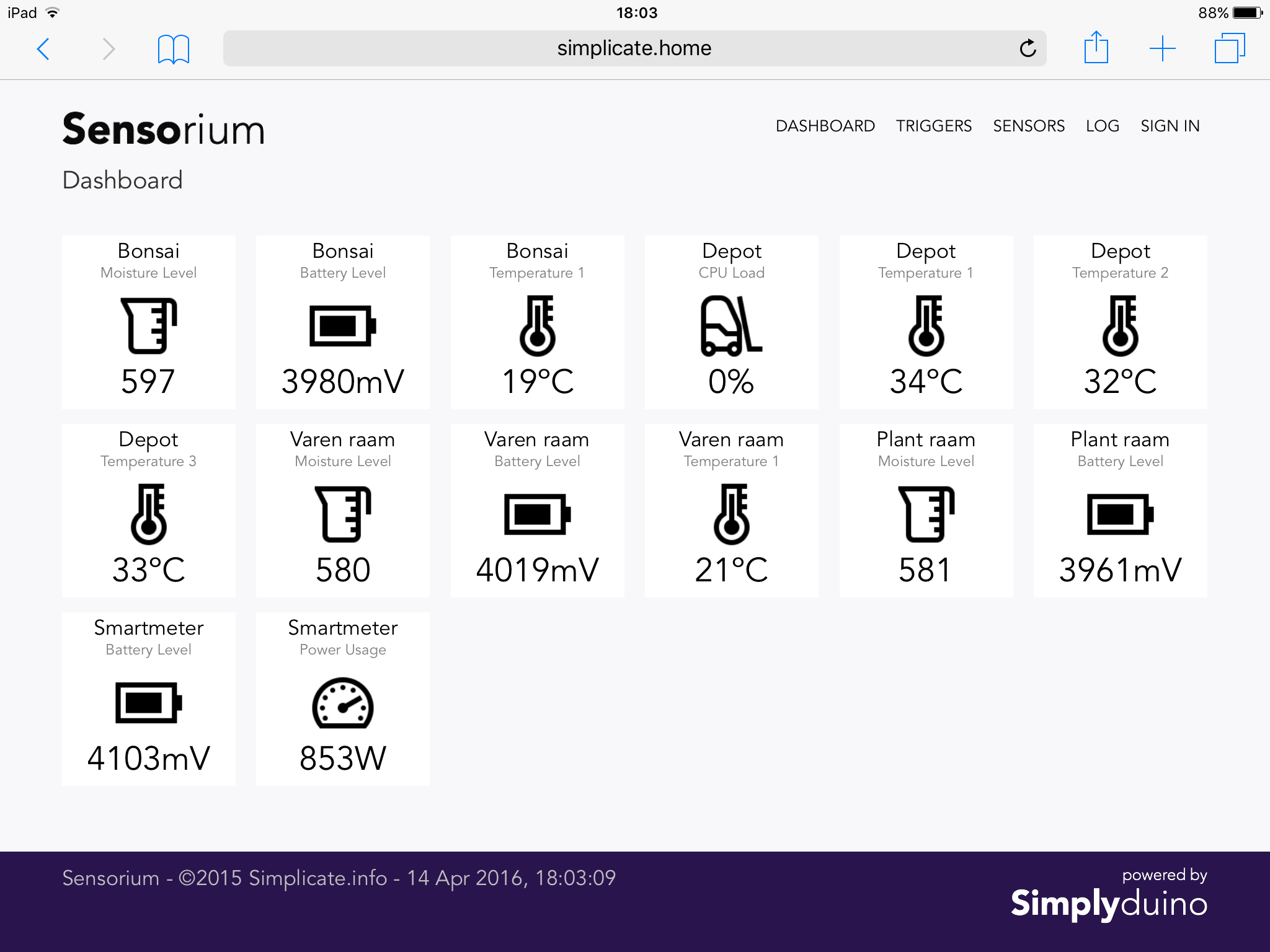

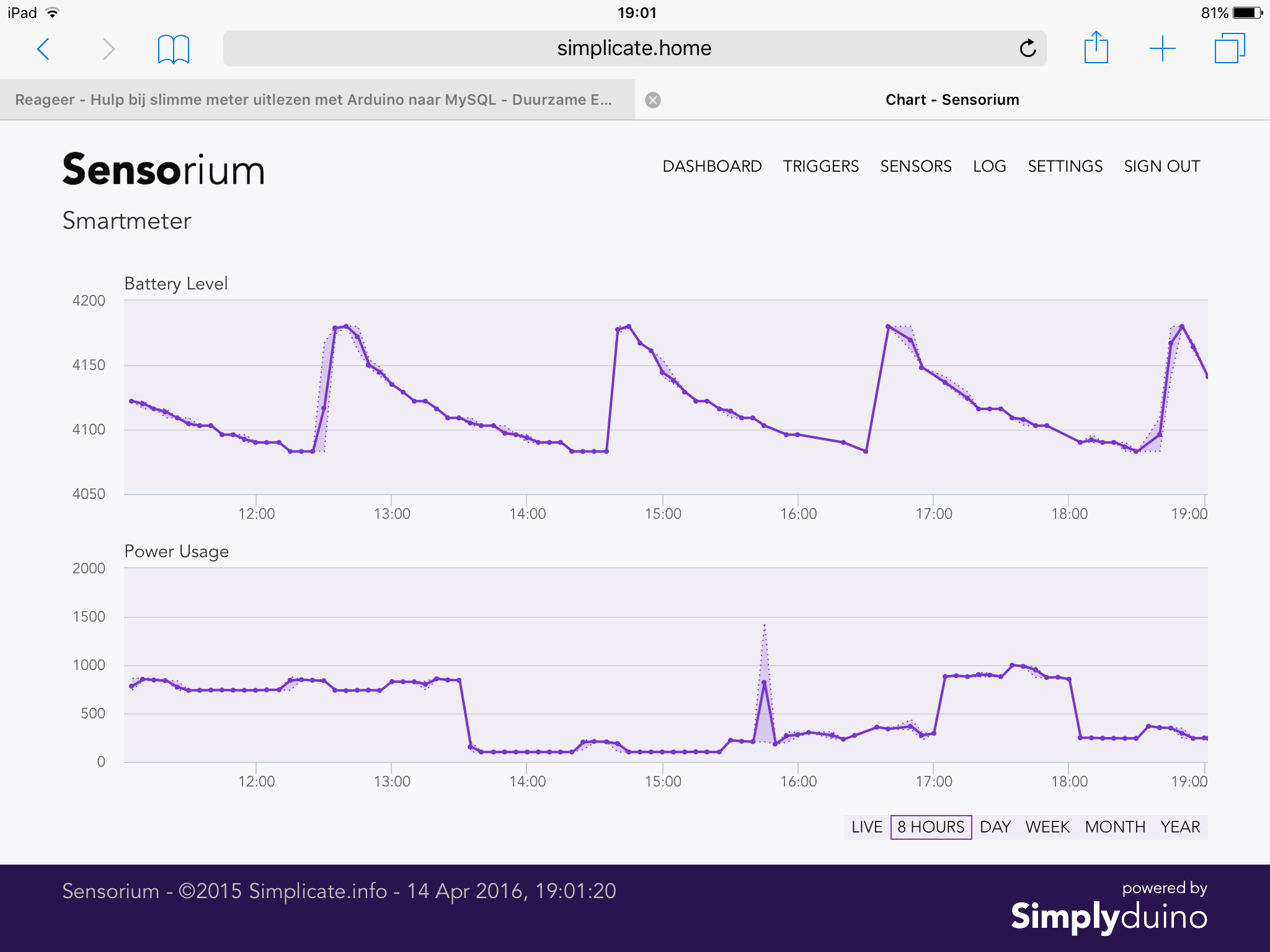

// Will make HTTP Connection to the server and will send the data
void sendHTTPRequest() {
// Only send if telegram is new to us
if (!telegram.isNewToSend) {
// nothing to do here, so we are done
return;
}
// Close any connection before send a new request.
client.stop();
// If there is a successful connection:
if (client.connect(server, 80)) {
Serial.println(F("connecting..."));
// send the HTTP GET request:
client.print(F("GET /P1Reading.php?telegramCount="));
client.print(telegram.telegramCount);
client.print(F("&elecLowTariff="));
client.print(telegram.elecLowTariff);
client.print(F("&elecHighTariff="));
client.print(telegram.elecHighTariff);
client.print(F("&elecConsumption="));
client.print(telegram.elecConsumption);
client.print(F("&isElecHighTariff="));
client.print(telegram.isElecHighTariff);
client.print(F("&gasConsumption="));
client.print(telegram.gasConsumption);
client.print(F("&gasLastReadOut="));
client.print(telegram.gasLastReadOut);
client.println(F(" HTTP/1.1"));
client.println(F("Host: 192.168.2.4"));
client.println(F("User-Agent: arduino-ethernet"));
client.println(F("Connection: close"));
client.println();
} else {
// if you couldn't make a connection:
Serial.println(F("connection failed"));
}
// We've send it now, no need to send this again
telegram.isNewToSend = false;
} |
