Specs
Item Min. Standard Max. Remark
Operation Voltage 6.8V 8.4V 12.6V
Operation Current 80mA 110mA 1500mA
Charging Voltage 5V
Charging Current 1500mA
Output Voltage 5V
Output Current 2000mA
Following Deviation in Static State ±0.01° ±0.04°
Following Deviation in Motion State ±0.05° ±0.3°
Tilt Mechanical Range 320°
Roll Mechanical Range 320°
Pan Mechanical Range 360° Unlimited
Controllable Tilt Angle -135° +185°
Controllable Roll Angle -30° +30°
Operation Temperature 360° Unlimited
Operation Temperature -10°C 25°C 45°C
Battery Runtime 12h Balanced center of gravity
Charging Time 2.5h
Valid Payload 75g 200g
Horizontal Arm Adjustment Range 15mm
Mounting Clamp Supporting Range 58mm 85mm

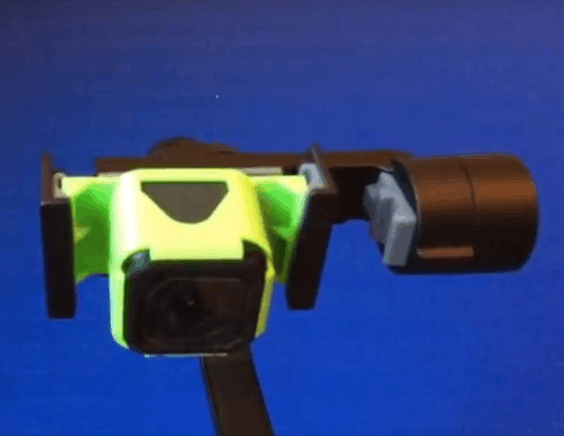

Compatible Models Smartphones with sizes within 6.0", GoPro Hero3/4/5
Packing List
Name & Spec. Qty.
Gimbal Stabilizer 1
Micro USB Cable 1
User Guide 1
Storage Bag 1
Packing Specifications
Item Dim./Weight Remark
Product Dimension 118*105*285 W*D*H
Package Size 310*150*60 L*W*H
Carton Size (Dedicated) 350*340*340 L*W*H
Product Net Weight 440g/unit
Gross Weight (including package) 1000g/unit
Packing Weight 13kg/Cart 10unit/carton
http://www.zhiyun-tech.com/smooth_q_en/
Manual: http://zhiyun-tech.com/up...ligh_instructionV1.01.pdf
Oa te koop bij EGlobal:
https://www.eglobalcentra...smartphone-jet-black.html
Prijs op 10-10 is daar €109,- wanneer je de kortingscode ZHIYUN in het checkout-proces invult.
De voorganger van de Smooth Q:
[Zhiyun Z1 Smooth-C] Ervaringen & Discussie
In dit artikel werden diverse gimbals vergeleken en de Smooth Q kwam daar goed uit:
reviews: Betaalbare smartphonegimbals - Superstabiel filmen met je telefoon
[ Voor 70% gewijzigd door dutch79 op 15-10-2017 07:26 ]
