Ik probeer een D7 als een repeater in te stellen voor KPN Sagemcom Box 12 modem/router. De stappen volgens de guides van TP-Link, in het kort:
- Login to the web-interface (in my case http://192.168.1.1 or http://tplinkmondem.net)
- Go to Advanced > Network > LAN, configure the IP address. The repeater should be in the same subnet with the root router. If the IP of the root router is 192.168.0.1, the IP address of the repeater might be 192.168.0.2, for example. Click Save.

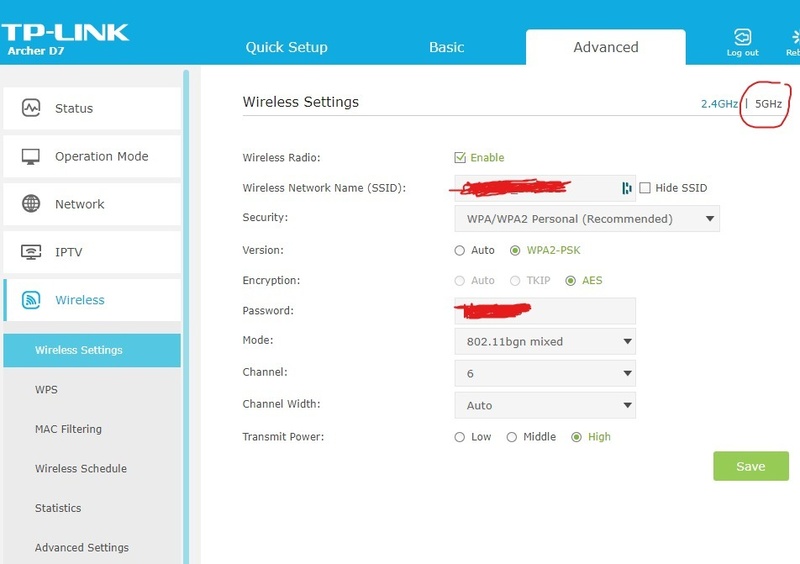

- Go to Advanced\Wireless\Wireless Settings\Advanced Setting. In WDS, select Enable WDS Bridging. Click Save.
- Click on Scan. Find the SSID of your root AP and click on Connect. Click Save.
- If the wifi of the root router is encrypted, please configure the security settings according to the root router's wifi encryption. Click Save.
- Go to DHCP Settings and select disable. Click Save.
