Mijn vraag
Ik heb een oude PC van mij omgezet naar een nieuwe kast om weg te geven. Heel leuk geworden enzo, maar als kers op de taart de bios geupdate. Dat ging verder allemaal prima en keurig de juiste tussenstappen en versies aangehouden die ASRock aangeeft (daar zijn ze niet zo duidelijk in).
Inmiddels draait dus de laatste stable versie. Nu heb ik de volgende problemen:
ASRock Z68 Extreme4 Gen3
Intel Core I7 2600K
16GB Kingston HyperX geheugen (2300mhz), DDR-3
OZC 120GB SSD
Wat ik al gevonden of geprobeerd heb
https://valid.x86.fr/1pkdxd
Iemand enig idee? Ik kom er niet meer uit.
Ik heb een oude PC van mij omgezet naar een nieuwe kast om weg te geven. Heel leuk geworden enzo, maar als kers op de taart de bios geupdate. Dat ging verder allemaal prima en keurig de juiste tussenstappen en versies aangehouden die ASRock aangeeft (daar zijn ze niet zo duidelijk in).
Inmiddels draait dus de laatste stable versie. Nu heb ik de volgende problemen:

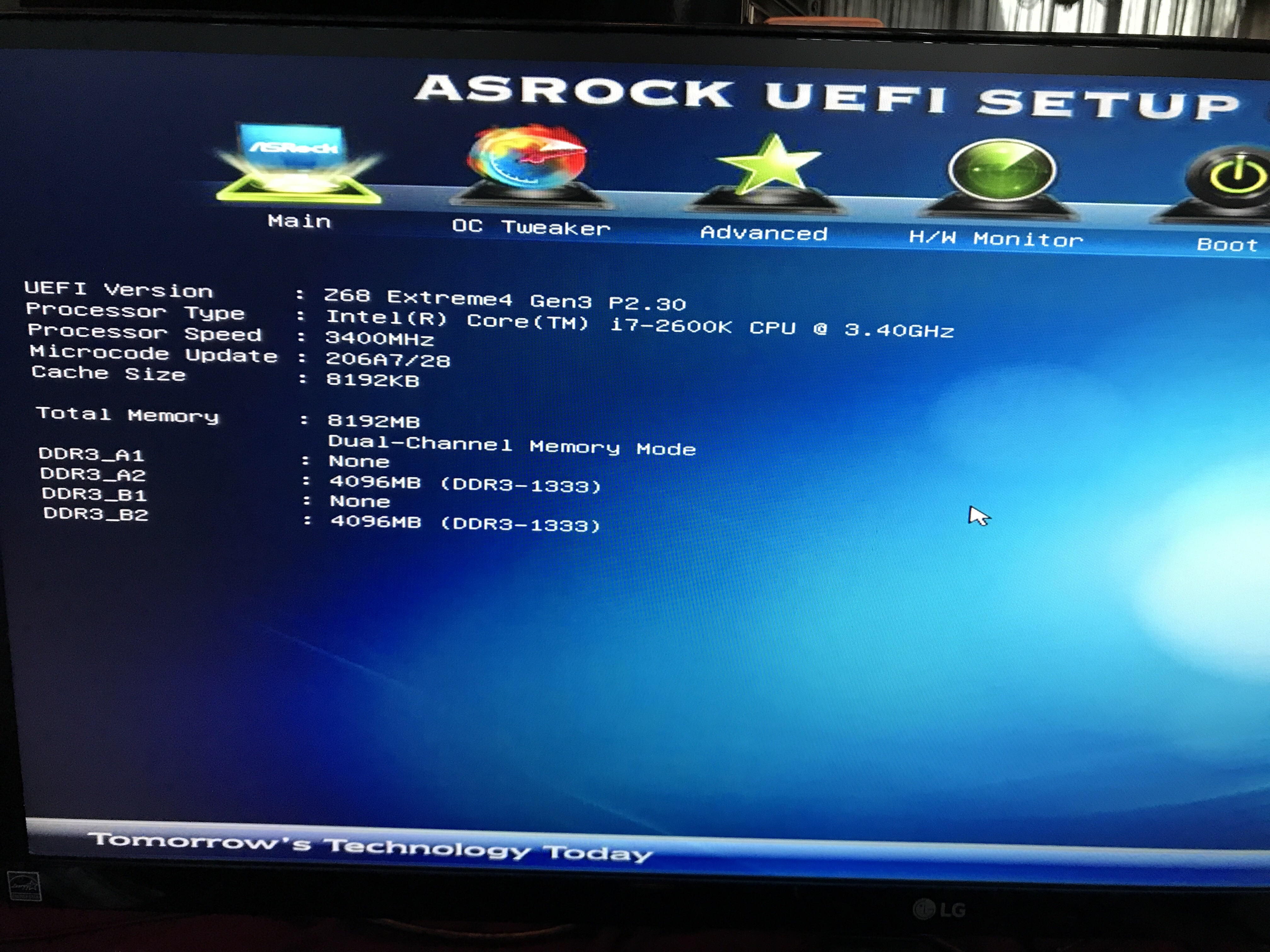

- Kingston HyperX ram (4GB per bank), totaal 4 banken (16gb) werkte voorheen prima, maar nu is er maar 8 zichbaar.
- De onboard videokaart werkt niet meer. Ik heb dus (tijdelijk) een andere videokaart erin moeten stoppen, maar waarvoor de PC gebruikt gaat worden is een dedicated videokaart echt zonde van de energie.
ASRock Z68 Extreme4 Gen3
Intel Core I7 2600K
16GB Kingston HyperX geheugen (2300mhz), DDR-3
OZC 120GB SSD
Wat ik al gevonden of geprobeerd heb

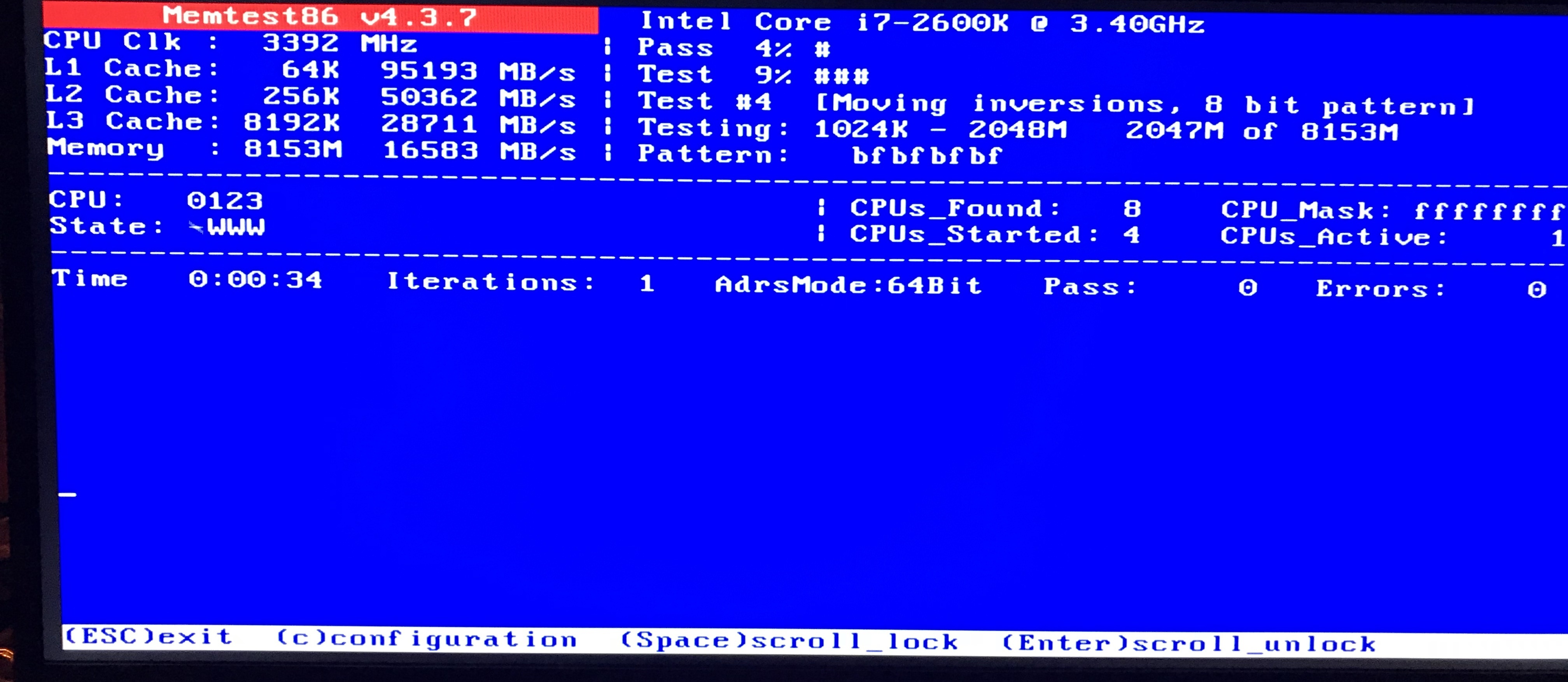

- Geheugenbankjes verplaatsen, vervangen door ander geheugen, single mode, dual channel, omwisselen. Elk bankje werkt gewoon netjes, alleen niet alle 4 tegelijkertijd, maximaal 2. Voorheen deden ze het wel
- Bios proberen te downgraden, nogsteeds geen onboard beeld, en geen maximaal ram
- Google natuurlijk, maar ik zie veel vage verhalen over dit moederbord
- USB stick met de firmware erin laten zitten bij een Windows boot
- Kijken of de hardware in Windows wel beschikbaar is. Dat is niet het geval, voor zowel het geheugen als de interne videokaart
- CMOS reset middels de knop, batterij, pin, powersurge, etc. De optie "Internal Graphics" is helemaal verdwenen en alleen "PCI Express" en "PCI" zijn nog aanwezig (ook na downgrade
). - Andere videopoorten geprobeert (VGA, HDMI en DVI)
https://valid.x86.fr/1pkdxd
Nu zou ik de passief gekoelde Nvidia GTX 210 kunnen laten zitten, dat is niet zo'n probleem, maar liever niet. Sterker nog, ik geloof dat de onboard videokaart sterker was dan dit pareltje. Verder wil ik gebruik kunnen maken van 16GB ram ipv 8.code:
CPU-Z TXT Report ------------------------------------------------------------------------- Binaries ------------------------------------------------------------------------- CPU-Z version 1.84.0.x64 Processors ------------------------------------------------------------------------- Number of sockets 1 Number of threads 8 APICs ------------------------------------------------------------------------- Socket 0 -- Core 0 -- Thread 0 0 -- Thread 1 1 -- Core 1 -- Thread 2 2 -- Thread 3 3 -- Core 2 -- Thread 4 4 -- Thread 5 5 -- Core 3 -- Thread 6 6 -- Thread 7 7 Timers ------------------------------------------------------------------------- ACPI timer 3.580 MHz Perf timer 3.313 MHz Sys timer 1.000 KHz Processors Information ------------------------------------------------------------------------- Socket 1 ID = 0 Number of cores 4 (max 4) Number of threads 8 (max 8) Name Intel Core i7 2600K Codename Sandy Bridge Specification Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz Package (platform ID) Socket 1155 LGA (0x1) CPUID 6.A.7 Extended CPUID 6.2A Core Stepping D2 Technology 32 nm TDP Limit 95.0 Watts Tjmax 98.0 °C Core Speed 1596.2 MHz Multiplier x Bus Speed 16.0 x 99.8 MHz Base frequency (cores) 99.8 MHz Base frequency (ext.) 99.8 MHz Stock frequency 3400 MHz Instructions sets MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, EM64T, VT-x, AES, AVX Microcode Revision 0x29 L1 Data cache 4 x 32 KBytes, 8-way set associative, 64-byte line size L1 Instruction cache 4 x 32 KBytes, 8-way set associative, 64-byte line size L2 cache 4 x 256 KBytes, 8-way set associative, 64-byte line size L3 cache 8 MBytes, 16-way set associative, 64-byte line size Max CPUID level 0000000Dh Max CPUID ext. level 80000008h Cache descriptor Level 1, D, 32 KB, 2 thread(s) Cache descriptor Level 1, I, 32 KB, 2 thread(s) Cache descriptor Level 2, U, 256 KB, 2 thread(s) Cache descriptor Level 3, U, 8 MB, 16 thread(s) FID/VID Control yes IBRS not supported IBPB not supported STIBP not supported RDCL_NO no IBRS_ALL not supported Turbo Mode supported, enabled Max non-turbo ratio 34x Max turbo ratio 38x Max efficiency ratio 16x Max Power 120 Watts Min Power 60 Watts O/C bins unlimited Ratio 1 core 38x Ratio 2 cores 37x Ratio 3 cores 36x Ratio 4 cores 35x Temperature 0 40 degC (104 degF) (Package) Temperature 1 33 degC (91 degF) (Core #0) Temperature 2 35 degC (95 degF) (Core #1) Temperature 3 37 degC (98 degF) (Core #2) Temperature 4 40 degC (104 degF) (Core #3) Voltage 0 0.98 Volts (VID) Power 00 11.47 W (Package) Power 01 6.49 W (IA Cores) Power 02 n.a. (GT) Power 03 4.98 W (Uncore) Clock Speed 0 1596.19 MHz (Core #0) Clock Speed 1 1596.19 MHz (Core #1) Clock Speed 2 1596.19 MHz (Core #2) Clock Speed 3 1596.19 MHz (Core #3) Core 0 max ratio 38.0 (effective 38.0) Core 1 max ratio 38.0 (effective 38.0) Core 2 max ratio 38.0 (effective 38.0) Core 3 max ratio 38.0 (effective 38.0) Thread dumps ------------------------------------------------------------------------- CPU Thread 0 APIC ID 0 Topology Processor ID 0, Core ID 0, Thread ID 0 CPUID 0x00000000 0x0000000D 0x756E6547 0x6C65746E 0x49656E69 0x00000001 0x000206A7 0x00100800 0x1F9AE3BF 0xBFEBFBFF 0x00000002 0x76035A01 0x00F0B2FF 0x00000000 0x00CA0000 0x00000003 0x00000000 0x00000000 0x00000000 0x00000000 0x00000004 0x1C004121 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004122 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004143 0x01C0003F 0x000001FF 0x00000000 0x00000004 0x1C03C163 0x03C0003F 0x00001FFF 0x00000006 0x00000005 0x00000040 0x00000040 0x00000003 0x00001120 0x00000006 0x00000077 0x00000002 0x00000009 0x00000000 0x00000007 0x00000000 0x00000000 0x00000000 0x00000000 0x00000008 0x00000000 0x00000000 0x00000000 0x00000000 0x00000009 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000A 0x07300403 0x00000000 0x00000000 0x00000603 0x0000000B 0x00000001 0x00000002 0x00000100 0x00000000 0x0000000B 0x00000004 0x00000008 0x00000201 0x00000000 0x0000000C 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000007 0x00000340 0x00000340 0x00000000 0x0000000D 0x00000001 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000100 0x00000240 0x00000000 0x00000000 0x80000000 0x80000008 0x00000000 0x00000000 0x00000000 0x80000001 0x00000000 0x00000000 0x00000001 0x28100800 0x80000002 0x20202020 0x49202020 0x6C65746E 0x20295228 0x80000003 0x65726F43 0x294D5428 0x2D376920 0x30303632 0x80000004 0x5043204B 0x20402055 0x30342E33 0x007A4847 0x80000005 0x00000000 0x00000000 0x00000000 0x00000000 0x80000006 0x00000000 0x00000000 0x01006040 0x00000000 0x80000007 0x00000000 0x00000000 0x00000000 0x00000100 0x80000008 0x00003024 0x00000000 0x00000000 0x00000000 MSR 0x0000001B 0x00000000 0xFEE00900 MSR 0x0000003A 0x00000000 0x00000005 MSR 0x000001A0 0x00000000 0x00850089 MSR 0x000000CE 0x00001000 0x60012200 MSR 0x00000017 0x00040000 0x00000000 MSR 0x00000035 0x00000000 0x00040008 MSR 0x000000C1 0x00000000 0x00000000 MSR 0x000000C2 0x00000000 0x00000000 MSR 0x000000C3 0x00000000 0x00000000 MSR 0x000000C4 0x00000000 0x00000000 MSR 0x00000186 0x00000000 0x00000000 MSR 0x00000187 0x00000000 0x00000000 MSR 0x000001AD 0x00000000 0x23242526 MSR 0x00000194 0x00000000 0x000F0000 MSR 0x0000019A 0x00000000 0x00000000 MSR 0x000001A4 0x00000000 0x00000000 MSR 0x000001FC 0x00000000 0x0004005F MSR 0x00000606 0x00000000 0x000A1003 MSR 0x00000601 0x18141494 0x000004B0 MSR 0x00000602 0x18141494 0x00000170 MSR 0x00000610 0x000083B6 0x001482F8 MSR 0x00000611 0x00000000 0xAACA83F7 MSR 0x00000639 0x00000000 0x4276B82C MSR 0x00000641 0x00000000 0x00000000 MSR 0x00000614 0x000A03C0 0x01E002F8 MSR 0x0000019C 0x00000000 0x882E0000 MSR 0x000001A2 0x00000000 0x00621200 MSR 0x000001B1 0x00000000 0x88270000 MSR 0x00000198 0x0000278D 0x00002300 MSR 0x00000199 0x00000000 0x00002600 CPU Thread 1 APIC ID 1 Topology Processor ID 0, Core ID 0, Thread ID 1 CPUID 0x00000000 0x0000000D 0x756E6547 0x6C65746E 0x49656E69 0x00000001 0x000206A7 0x01100800 0x1F9AE3BF 0xBFEBFBFF 0x00000002 0x76035A01 0x00F0B2FF 0x00000000 0x00CA0000 0x00000003 0x00000000 0x00000000 0x00000000 0x00000000 0x00000004 0x1C004121 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004122 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004143 0x01C0003F 0x000001FF 0x00000000 0x00000004 0x1C03C163 0x03C0003F 0x00001FFF 0x00000006 0x00000005 0x00000040 0x00000040 0x00000003 0x00001120 0x00000006 0x00000077 0x00000002 0x00000009 0x00000000 0x00000007 0x00000000 0x00000000 0x00000000 0x00000000 0x00000008 0x00000000 0x00000000 0x00000000 0x00000000 0x00000009 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000A 0x07300403 0x00000000 0x00000000 0x00000603 0x0000000B 0x00000001 0x00000002 0x00000100 0x00000001 0x0000000B 0x00000004 0x00000008 0x00000201 0x00000001 0x0000000C 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000007 0x00000340 0x00000340 0x00000000 0x0000000D 0x00000001 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000100 0x00000240 0x00000000 0x00000000 0x80000000 0x80000008 0x00000000 0x00000000 0x00000000 0x80000001 0x00000000 0x00000000 0x00000001 0x28100800 0x80000002 0x20202020 0x49202020 0x6C65746E 0x20295228 0x80000003 0x65726F43 0x294D5428 0x2D376920 0x30303632 0x80000004 0x5043204B 0x20402055 0x30342E33 0x007A4847 0x80000005 0x00000000 0x00000000 0x00000000 0x00000000 0x80000006 0x00000000 0x00000000 0x01006040 0x00000000 0x80000007 0x00000000 0x00000000 0x00000000 0x00000100 0x80000008 0x00003024 0x00000000 0x00000000 0x00000000 MSR 0x0000001B 0x00000000 0xFEE00800 MSR 0x0000003A 0x00000000 0x00000005 MSR 0x000001A0 0x00000000 0x00850089 MSR 0x000000CE 0x00001000 0x60012200 MSR 0x00000017 0x00040000 0x00000000 MSR 0x00000035 0x00000000 0x00040008 MSR 0x000000C1 0x00000000 0x00000000 MSR 0x000000C2 0x00000000 0x00000000 MSR 0x000000C3 0x00000000 0x00000000 MSR 0x000000C4 0x00000000 0x00000000 MSR 0x00000186 0x00000000 0x00000000 MSR 0x00000187 0x00000000 0x00000000 MSR 0x000001AD 0x00000000 0x23242526 MSR 0x00000194 0x00000000 0x000F0000 MSR 0x0000019A 0x00000000 0x00000000 MSR 0x000001A4 0x00000000 0x00000000 MSR 0x000001FC 0x00000000 0x0004005F MSR 0x00000606 0x00000000 0x000A1003 MSR 0x00000601 0x18141494 0x000004B0 MSR 0x00000602 0x18141494 0x00000170 MSR 0x00000610 0x000083B6 0x001482F8 MSR 0x00000611 0x00000000 0xAAC6D04E MSR 0x00000639 0x00000000 0x42735762 MSR 0x00000641 0x00000000 0x00000000 MSR 0x00000614 0x000A03C0 0x01E002F8 MSR 0x0000019C 0x00000000 0x882E0000 MSR 0x000001A2 0x00000000 0x00621200 MSR 0x000001B1 0x00000000 0x88270000 MSR 0x00000198 0x0000278D 0x00002300 MSR 0x00000199 0x00000000 0x00002600 CPU Thread 2 APIC ID 2 Topology Processor ID 0, Core ID 1, Thread ID 0 CPUID 0x00000000 0x0000000D 0x756E6547 0x6C65746E 0x49656E69 0x00000001 0x000206A7 0x02100800 0x1F9AE3BF 0xBFEBFBFF 0x00000002 0x76035A01 0x00F0B2FF 0x00000000 0x00CA0000 0x00000003 0x00000000 0x00000000 0x00000000 0x00000000 0x00000004 0x1C004121 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004122 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004143 0x01C0003F 0x000001FF 0x00000000 0x00000004 0x1C03C163 0x03C0003F 0x00001FFF 0x00000006 0x00000005 0x00000040 0x00000040 0x00000003 0x00001120 0x00000006 0x00000077 0x00000002 0x00000009 0x00000000 0x00000007 0x00000000 0x00000000 0x00000000 0x00000000 0x00000008 0x00000000 0x00000000 0x00000000 0x00000000 0x00000009 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000A 0x07300403 0x00000000 0x00000000 0x00000603 0x0000000B 0x00000001 0x00000002 0x00000100 0x00000002 0x0000000B 0x00000004 0x00000008 0x00000201 0x00000002 0x0000000C 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000007 0x00000340 0x00000340 0x00000000 0x0000000D 0x00000001 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000100 0x00000240 0x00000000 0x00000000 0x80000000 0x80000008 0x00000000 0x00000000 0x00000000 0x80000001 0x00000000 0x00000000 0x00000001 0x28100800 0x80000002 0x20202020 0x49202020 0x6C65746E 0x20295228 0x80000003 0x65726F43 0x294D5428 0x2D376920 0x30303632 0x80000004 0x5043204B 0x20402055 0x30342E33 0x007A4847 0x80000005 0x00000000 0x00000000 0x00000000 0x00000000 0x80000006 0x00000000 0x00000000 0x01006040 0x00000000 0x80000007 0x00000000 0x00000000 0x00000000 0x00000100 0x80000008 0x00003024 0x00000000 0x00000000 0x00000000 MSR 0x0000001B 0x00000000 0xFEE00800 MSR 0x0000003A 0x00000000 0x00000005 MSR 0x000001A0 0x00000000 0x00850089 MSR 0x000000CE 0x00001000 0x60012200 MSR 0x00000017 0x00040000 0x00000000 MSR 0x00000035 0x00000000 0x00040008 MSR 0x000000C1 0x00000000 0x00000000 MSR 0x000000C2 0x00000000 0x00000000 MSR 0x000000C3 0x00000000 0x00000000 MSR 0x000000C4 0x00000000 0x00000000 MSR 0x00000186 0x00000000 0x00000000 MSR 0x00000187 0x00000000 0x00000000 MSR 0x000001AD 0x00000000 0x23242526 MSR 0x00000194 0x00000000 0x000F0000 MSR 0x0000019A 0x00000000 0x00000000 MSR 0x000001A4 0x00000000 0x00000000 MSR 0x000001FC 0x00000000 0x0004005F MSR 0x00000606 0x00000000 0x000A1003 MSR 0x00000601 0x18141494 0x000004B0 MSR 0x00000602 0x18141494 0x00000170 MSR 0x00000610 0x000083B6 0x001482F8 MSR 0x00000611 0x00000000 0xAADDC33A MSR 0x00000639 0x00000000 0x42884901 MSR 0x00000641 0x00000000 0x00000000 MSR 0x00000614 0x000A03C0 0x01E002F8 MSR 0x0000019C 0x00000000 0x882C0000 MSR 0x000001A2 0x00000000 0x00621200 MSR 0x000001B1 0x00000000 0x88260000 MSR 0x00000198 0x0000278D 0x00002300 MSR 0x00000199 0x00000000 0x00002600 CPU Thread 3 APIC ID 3 Topology Processor ID 0, Core ID 1, Thread ID 1 CPUID 0x00000000 0x0000000D 0x756E6547 0x6C65746E 0x49656E69 0x00000001 0x000206A7 0x03100800 0x1F9AE3BF 0xBFEBFBFF 0x00000002 0x76035A01 0x00F0B2FF 0x00000000 0x00CA0000 0x00000003 0x00000000 0x00000000 0x00000000 0x00000000 0x00000004 0x1C004121 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004122 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004143 0x01C0003F 0x000001FF 0x00000000 0x00000004 0x1C03C163 0x03C0003F 0x00001FFF 0x00000006 0x00000005 0x00000040 0x00000040 0x00000003 0x00001120 0x00000006 0x00000077 0x00000002 0x00000009 0x00000000 0x00000007 0x00000000 0x00000000 0x00000000 0x00000000 0x00000008 0x00000000 0x00000000 0x00000000 0x00000000 0x00000009 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000A 0x07300403 0x00000000 0x00000000 0x00000603 0x0000000B 0x00000001 0x00000002 0x00000100 0x00000003 0x0000000B 0x00000004 0x00000008 0x00000201 0x00000003 0x0000000C 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000007 0x00000340 0x00000340 0x00000000 0x0000000D 0x00000001 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000100 0x00000240 0x00000000 0x00000000 0x80000000 0x80000008 0x00000000 0x00000000 0x00000000 0x80000001 0x00000000 0x00000000 0x00000001 0x28100800 0x80000002 0x20202020 0x49202020 0x6C65746E 0x20295228 0x80000003 0x65726F43 0x294D5428 0x2D376920 0x30303632 0x80000004 0x5043204B 0x20402055 0x30342E33 0x007A4847 0x80000005 0x00000000 0x00000000 0x00000000 0x00000000 0x80000006 0x00000000 0x00000000 0x01006040 0x00000000 0x80000007 0x00000000 0x00000000 0x00000000 0x00000100 0x80000008 0x00003024 0x00000000 0x00000000 0x00000000 MSR 0x0000001B 0x00000000 0xFEE00800 MSR 0x0000003A 0x00000000 0x00000005 MSR 0x000001A0 0x00000000 0x00850089 MSR 0x000000CE 0x00001000 0x60012200 MSR 0x00000017 0x00040000 0x00000000 MSR 0x00000035 0x00000000 0x00040008 MSR 0x000000C1 0x00000000 0x00000000 MSR 0x000000C2 0x00000000 0x00000000 MSR 0x000000C3 0x00000000 0x00000000 MSR 0x000000C4 0x00000000 0x00000000 MSR 0x00000186 0x00000000 0x00000000 MSR 0x00000187 0x00000000 0x00000000 MSR 0x000001AD 0x00000000 0x23242526 MSR 0x00000194 0x00000000 0x000F0000 MSR 0x0000019A 0x00000000 0x00000000 MSR 0x000001A4 0x00000000 0x00000000 MSR 0x000001FC 0x00000000 0x0004005F MSR 0x00000606 0x00000000 0x000A1003 MSR 0x00000601 0x18141494 0x000004B0 MSR 0x00000602 0x18141494 0x00000170 MSR 0x00000610 0x000083B6 0x001482F8 MSR 0x00000611 0x00000000 0xAAC89B1E MSR 0x00000639 0x00000000 0x4274F9A6 MSR 0x00000641 0x00000000 0x00000000 MSR 0x00000614 0x000A03C0 0x01E002F8 MSR 0x0000019C 0x00000000 0x882D0000 MSR 0x000001A2 0x00000000 0x00621200 MSR 0x000001B1 0x00000000 0x88280000 MSR 0x00000198 0x0000278D 0x00002300 MSR 0x00000199 0x00000000 0x00002600 CPU Thread 4 APIC ID 4 Topology Processor ID 0, Core ID 2, Thread ID 0 CPUID 0x00000000 0x0000000D 0x756E6547 0x6C65746E 0x49656E69 0x00000001 0x000206A7 0x04100800 0x1F9AE3BF 0xBFEBFBFF 0x00000002 0x76035A01 0x00F0B2FF 0x00000000 0x00CA0000 0x00000003 0x00000000 0x00000000 0x00000000 0x00000000 0x00000004 0x1C004121 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004122 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004143 0x01C0003F 0x000001FF 0x00000000 0x00000004 0x1C03C163 0x03C0003F 0x00001FFF 0x00000006 0x00000005 0x00000040 0x00000040 0x00000003 0x00001120 0x00000006 0x00000077 0x00000002 0x00000009 0x00000000 0x00000007 0x00000000 0x00000000 0x00000000 0x00000000 0x00000008 0x00000000 0x00000000 0x00000000 0x00000000 0x00000009 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000A 0x07300403 0x00000000 0x00000000 0x00000603 0x0000000B 0x00000001 0x00000002 0x00000100 0x00000004 0x0000000B 0x00000004 0x00000008 0x00000201 0x00000004 0x0000000C 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000007 0x00000340 0x00000340 0x00000000 0x0000000D 0x00000001 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000100 0x00000240 0x00000000 0x00000000 0x80000000 0x80000008 0x00000000 0x00000000 0x00000000 0x80000001 0x00000000 0x00000000 0x00000001 0x28100800 0x80000002 0x20202020 0x49202020 0x6C65746E 0x20295228 0x80000003 0x65726F43 0x294D5428 0x2D376920 0x30303632 0x80000004 0x5043204B 0x20402055 0x30342E33 0x007A4847 0x80000005 0x00000000 0x00000000 0x00000000 0x00000000 0x80000006 0x00000000 0x00000000 0x01006040 0x00000000 0x80000007 0x00000000 0x00000000 0x00000000 0x00000100 0x80000008 0x00003024 0x00000000 0x00000000 0x00000000 MSR 0x0000001B 0x00000000 0xFEE00800 MSR 0x0000003A 0x00000000 0x00000005 MSR 0x000001A0 0x00000000 0x00850089 MSR 0x000000CE 0x00001000 0x60012200 MSR 0x00000017 0x00040000 0x00000000 MSR 0x00000035 0x00000000 0x00040008 MSR 0x000000C1 0x00000000 0x00000000 MSR 0x000000C2 0x00000000 0x00000000 MSR 0x000000C3 0x00000000 0x00000000 MSR 0x000000C4 0x00000000 0x00000000 MSR 0x00000186 0x00000000 0x00000000 MSR 0x00000187 0x00000000 0x00000000 MSR 0x000001AD 0x00000000 0x23242526 MSR 0x00000194 0x00000000 0x000F0000 MSR 0x0000019A 0x00000000 0x00000000 MSR 0x000001A4 0x00000000 0x00000000 MSR 0x000001FC 0x00000000 0x0004005F MSR 0x00000606 0x00000000 0x000A1003 MSR 0x00000601 0x18141494 0x000004B0 MSR 0x00000602 0x18141494 0x00000170 MSR 0x00000610 0x000083B6 0x001482F8 MSR 0x00000611 0x00000000 0xAADF9AC8 MSR 0x00000639 0x00000000 0x4289F891 MSR 0x00000641 0x00000000 0x00000000 MSR 0x00000614 0x000A03C0 0x01E002F8 MSR 0x0000019C 0x00000000 0x88290000 MSR 0x000001A2 0x00000000 0x00621200 MSR 0x000001B1 0x00000000 0x88260000 MSR 0x00000198 0x0000278D 0x00002300 MSR 0x00000199 0x00000000 0x00002600 CPU Thread 5 APIC ID 5 Topology Processor ID 0, Core ID 2, Thread ID 1 CPUID 0x00000000 0x0000000D 0x756E6547 0x6C65746E 0x49656E69 0x00000001 0x000206A7 0x05100800 0x1F9AE3BF 0xBFEBFBFF 0x00000002 0x76035A01 0x00F0B2FF 0x00000000 0x00CA0000 0x00000003 0x00000000 0x00000000 0x00000000 0x00000000 0x00000004 0x1C004121 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004122 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004143 0x01C0003F 0x000001FF 0x00000000 0x00000004 0x1C03C163 0x03C0003F 0x00001FFF 0x00000006 0x00000005 0x00000040 0x00000040 0x00000003 0x00001120 0x00000006 0x00000077 0x00000002 0x00000009 0x00000000 0x00000007 0x00000000 0x00000000 0x00000000 0x00000000 0x00000008 0x00000000 0x00000000 0x00000000 0x00000000 0x00000009 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000A 0x07300403 0x00000000 0x00000000 0x00000603 0x0000000B 0x00000001 0x00000002 0x00000100 0x00000005 0x0000000B 0x00000004 0x00000008 0x00000201 0x00000005 0x0000000C 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000007 0x00000340 0x00000340 0x00000000 0x0000000D 0x00000001 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000100 0x00000240 0x00000000 0x00000000 0x80000000 0x80000008 0x00000000 0x00000000 0x00000000 0x80000001 0x00000000 0x00000000 0x00000001 0x28100800 0x80000002 0x20202020 0x49202020 0x6C65746E 0x20295228 0x80000003 0x65726F43 0x294D5428 0x2D376920 0x30303632 0x80000004 0x5043204B 0x20402055 0x30342E33 0x007A4847 0x80000005 0x00000000 0x00000000 0x00000000 0x00000000 0x80000006 0x00000000 0x00000000 0x01006040 0x00000000 0x80000007 0x00000000 0x00000000 0x00000000 0x00000100 0x80000008 0x00003024 0x00000000 0x00000000 0x00000000 MSR 0x0000001B 0x00000000 0xFEE00800 MSR 0x0000003A 0x00000000 0x00000005 MSR 0x000001A0 0x00000000 0x00850089 MSR 0x000000CE 0x00001000 0x60012200 MSR 0x00000017 0x00040000 0x00000000 MSR 0x00000035 0x00000000 0x00040008 MSR 0x000000C1 0x00000000 0x00000000 MSR 0x000000C2 0x00000000 0x00000000 MSR 0x000000C3 0x00000000 0x00000000 MSR 0x000000C4 0x00000000 0x00000000 MSR 0x00000186 0x00000000 0x00000000 MSR 0x00000187 0x00000000 0x00000000 MSR 0x000001AD 0x00000000 0x23242526 MSR 0x00000194 0x00000000 0x000F0000 MSR 0x0000019A 0x00000000 0x00000000 MSR 0x000001A4 0x00000000 0x00000000 MSR 0x000001FC 0x00000000 0x0004005F MSR 0x00000606 0x00000000 0x000A1003 MSR 0x00000601 0x18141494 0x000004B0 MSR 0x00000602 0x18141494 0x00000170 MSR 0x00000610 0x000083B6 0x001482F8 MSR 0x00000611 0x00000000 0xAAD30D1C MSR 0x00000639 0x00000000 0x427E82FD MSR 0x00000641 0x00000000 0x00000000 MSR 0x00000614 0x000A03C0 0x01E002F8 MSR 0x0000019C 0x00000000 0x88290000 MSR 0x000001A2 0x00000000 0x00621200 MSR 0x000001B1 0x00000000 0x88270000 MSR 0x00000198 0x0000278D 0x00002300 MSR 0x00000199 0x00000000 0x00002600 CPU Thread 6 APIC ID 6 Topology Processor ID 0, Core ID 3, Thread ID 0 CPUID 0x00000000 0x0000000D 0x756E6547 0x6C65746E 0x49656E69 0x00000001 0x000206A7 0x06100800 0x1F9AE3BF 0xBFEBFBFF 0x00000002 0x76035A01 0x00F0B2FF 0x00000000 0x00CA0000 0x00000003 0x00000000 0x00000000 0x00000000 0x00000000 0x00000004 0x1C004121 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004122 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004143 0x01C0003F 0x000001FF 0x00000000 0x00000004 0x1C03C163 0x03C0003F 0x00001FFF 0x00000006 0x00000005 0x00000040 0x00000040 0x00000003 0x00001120 0x00000006 0x00000077 0x00000002 0x00000009 0x00000000 0x00000007 0x00000000 0x00000000 0x00000000 0x00000000 0x00000008 0x00000000 0x00000000 0x00000000 0x00000000 0x00000009 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000A 0x07300403 0x00000000 0x00000000 0x00000603 0x0000000B 0x00000001 0x00000002 0x00000100 0x00000006 0x0000000B 0x00000004 0x00000008 0x00000201 0x00000006 0x0000000C 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000007 0x00000340 0x00000340 0x00000000 0x0000000D 0x00000001 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000100 0x00000240 0x00000000 0x00000000 0x80000000 0x80000008 0x00000000 0x00000000 0x00000000 0x80000001 0x00000000 0x00000000 0x00000001 0x28100800 0x80000002 0x20202020 0x49202020 0x6C65746E 0x20295228 0x80000003 0x65726F43 0x294D5428 0x2D376920 0x30303632 0x80000004 0x5043204B 0x20402055 0x30342E33 0x007A4847 0x80000005 0x00000000 0x00000000 0x00000000 0x00000000 0x80000006 0x00000000 0x00000000 0x01006040 0x00000000 0x80000007 0x00000000 0x00000000 0x00000000 0x00000100 0x80000008 0x00003024 0x00000000 0x00000000 0x00000000 MSR 0x0000001B 0x00000000 0xFEE00800 MSR 0x0000003A 0x00000000 0x00000005 MSR 0x000001A0 0x00000000 0x00850089 MSR 0x000000CE 0x00001000 0x60012200 MSR 0x00000017 0x00040000 0x00000000 MSR 0x00000035 0x00000000 0x00040008 MSR 0x000000C1 0x00000000 0x00000000 MSR 0x000000C2 0x00000000 0x00000000 MSR 0x000000C3 0x00000000 0x00000000 MSR 0x000000C4 0x00000000 0x00000000 MSR 0x00000186 0x00000000 0x00000000 MSR 0x00000187 0x00000000 0x00000000 MSR 0x000001AD 0x00000000 0x23242526 MSR 0x00000194 0x00000000 0x000F0000 MSR 0x0000019A 0x00000000 0x00000000 MSR 0x000001A4 0x00000000 0x00000000 MSR 0x000001FC 0x00000000 0x0004005F MSR 0x00000606 0x00000000 0x000A1003 MSR 0x00000601 0x18141494 0x000004B0 MSR 0x00000602 0x18141494 0x00000170 MSR 0x00000610 0x000083B6 0x001482F8 MSR 0x00000611 0x00000000 0xAADEAE79 MSR 0x00000639 0x00000000 0x42892048 MSR 0x00000641 0x00000000 0x00000000 MSR 0x00000614 0x000A03C0 0x01E002F8 MSR 0x0000019C 0x00000000 0x88260000 MSR 0x000001A2 0x00000000 0x00621200 MSR 0x000001B1 0x00000000 0x88260000 MSR 0x00000198 0x0000278D 0x00002300 MSR 0x00000199 0x00000000 0x00002600 CPU Thread 7 APIC ID 7 Topology Processor ID 0, Core ID 3, Thread ID 1 CPUID 0x00000000 0x0000000D 0x756E6547 0x6C65746E 0x49656E69 0x00000001 0x000206A7 0x07100800 0x1F9AE3BF 0xBFEBFBFF 0x00000002 0x76035A01 0x00F0B2FF 0x00000000 0x00CA0000 0x00000003 0x00000000 0x00000000 0x00000000 0x00000000 0x00000004 0x1C004121 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004122 0x01C0003F 0x0000003F 0x00000000 0x00000004 0x1C004143 0x01C0003F 0x000001FF 0x00000000 0x00000004 0x1C03C163 0x03C0003F 0x00001FFF 0x00000006 0x00000005 0x00000040 0x00000040 0x00000003 0x00001120 0x00000006 0x00000077 0x00000002 0x00000009 0x00000000 0x00000007 0x00000000 0x00000000 0x00000000 0x00000000 0x00000008 0x00000000 0x00000000 0x00000000 0x00000000 0x00000009 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000A 0x07300403 0x00000000 0x00000000 0x00000603 0x0000000B 0x00000001 0x00000002 0x00000100 0x00000007 0x0000000B 0x00000004 0x00000008 0x00000201 0x00000007 0x0000000C 0x00000000 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000007 0x00000340 0x00000340 0x00000000 0x0000000D 0x00000001 0x00000000 0x00000000 0x00000000 0x0000000D 0x00000100 0x00000240 0x00000000 0x00000000 0x80000000 0x80000008 0x00000000 0x00000000 0x00000000 0x80000001 0x00000000 0x00000000 0x00000001 0x28100800 0x80000002 0x20202020 0x49202020 0x6C65746E 0x20295228 0x80000003 0x65726F43 0x294D5428 0x2D376920 0x30303632 0x80000004 0x5043204B 0x20402055 0x30342E33 0x007A4847 0x80000005 0x00000000 0x00000000 0x00000000 0x00000000 0x80000006 0x00000000 0x00000000 0x01006040 0x00000000 0x80000007 0x00000000 0x00000000 0x00000000 0x00000100 0x80000008 0x00003024 0x00000000 0x00000000 0x00000000 MSR 0x0000001B 0x00000000 0xFEE00800 MSR 0x0000003A 0x00000000 0x00000005 MSR 0x000001A0 0x00000000 0x00850089 MSR 0x000000CE 0x00001000 0x60012200 MSR 0x00000017 0x00040000 0x00000000 MSR 0x00000035 0x00000000 0x00040008 MSR 0x000000C1 0x00000000 0x00000000 MSR 0x000000C2 0x00000000 0x00000000 MSR 0x000000C3 0x00000000 0x00000000 MSR 0x000000C4 0x00000000 0x00000000 MSR 0x00000186 0x00000000 0x00000000 MSR 0x00000187 0x00000000 0x00000000 MSR 0x000001AD 0x00000000 0x23242526 MSR 0x00000194 0x00000000 0x000F0000 MSR 0x0000019A 0x00000000 0x00000000 MSR 0x000001A4 0x00000000 0x00000000 MSR 0x000001FC 0x00000000 0x0004005F MSR 0x00000606 0x00000000 0x000A1003 MSR 0x00000601 0x18141494 0x000004B0 MSR 0x00000602 0x18141494 0x00000170 MSR 0x00000610 0x000083B6 0x001482F8 MSR 0x00000611 0x00000000 0xAAD4095D MSR 0x00000639 0x00000000 0x427F68CC MSR 0x00000641 0x00000000 0x00000000 MSR 0x00000614 0x000A03C0 0x01E002F8 MSR 0x0000019C 0x00000000 0x88280000 MSR 0x000001A2 0x00000000 0x00621200 MSR 0x000001B1 0x00000000 0x88280000 MSR 0x00000198 0x0000278D 0x00002300 MSR 0x00000199 0x00000000 0x00002600 Chipset ------------------------------------------------------------------------- Northbridge Intel Sandy Bridge rev. 09 Southbridge Intel Z68 rev. B3 Graphic Interface PCI-Express PCI-E Link Width x16 PCI-E Max Link Width x16 Memory Type DDR3 Memory Size 16 GBytes Channels Dual Memory Frequency 665.1 MHz (1:5) CAS# latency (CL) 9.0 RAS# to CAS# delay (tRCD) 9 RAS# Precharge (tRP) 9 Cycle Time (tRAS) 24 Command Rate (CR) 2T Host Bridge 0x0100 Memory SPD ------------------------------------------------------------------------- DIMM # 1 SMBus address 0x50 Memory type DDR3 Module format UDIMM Manufacturer (ID) Kingston (7F98000000000000000000) Size 4096 MBytes Max bandwidth PC3-12800 (800 MHz) Part number KHX1600C9D3/4GX Serial number 7A305E08 Manufacturing date Week 26/Year 13 Number of banks 8 Nominal Voltage 1.50 Volts EPP no XMP yes XMP revision 1.3 AMP no JEDEC timings table CL-tRCD-tRP-tRAS-tRC @ frequency JEDEC #1 6.0-6-6-16-22 @ 457 MHz JEDEC #2 7.0-7-7-19-26 @ 533 MHz JEDEC #3 8.0-8-8-22-30 @ 609 MHz JEDEC #4 9.0-9-9-24-33 @ 685 MHz JEDEC #5 10.0-10-10-27-37 @ 761 MHz JEDEC #6 11.0-11-11-28-39 @ 800 MHz XMP profile XMP-1600 Specification PC3-12800H Voltage level 1.650 Volts Min Cycle time 1.250 ns (800 MHz) Max CL 9.0 Min tRP 11.25 ns Min tRCD 11.25 ns Min tWR 15.00 ns Min tRAS 33.75 ns Min tRC 45.00 ns Min tRFC 260.00 ns Min tRTP 7.50 ns Min tRRD 6.00 ns XMP timings table CL-tRCD-tRP-tRAS-tRC-CR @ frequency (voltage) XMP #1 6.0-6-6-18-24-n.a @ 533 MHz (1.650 Volts) XMP #2 7.0-7-7-21-28-n.a @ 622 MHz (1.650 Volts) XMP #3 8.0-8-8-24-32-n.a @ 711 MHz (1.650 Volts) XMP #4 9.0-9-9-27-36-n.a @ 800 MHz (1.650 Volts) DIMM # 2 SMBus address 0x51 Memory type DDR3 Module format UDIMM Manufacturer (ID) Kingston (7F98000000000000000000) Size 4096 MBytes Max bandwidth PC3-10700 (667 MHz) Part number 9905403-437.A01LF Serial number 58352E70 Manufacturing date Week 43/Year 11 Number of banks 8 Nominal Voltage 1.50 Volts EPP no XMP yes XMP revision 1.2 AMP no JEDEC timings table CL-tRCD-tRP-tRAS-tRC @ frequency JEDEC #1 6.0-6-6-17-23 @ 457 MHz JEDEC #2 7.0-7-7-20-27 @ 533 MHz JEDEC #3 8.0-8-8-22-30 @ 609 MHz JEDEC #4 9.0-9-9-24-33 @ 666 MHz XMP profile XMP-1600 Specification PC3-12800 Voltage level 1.650 Volts Min Cycle time 1.250 ns (800 MHz) Max CL 9.0 Min tRP 11.25 ns Min tRCD 11.25 ns Min tWR 15.00 ns Min tRAS 33.75 ns Min tRC 45.00 ns Min tRFC 160.00 ns Min tRTP 7.50 ns Min tRRD 6.00 ns XMP timings table CL-tRCD-tRP-tRAS-tRC-CR @ frequency (voltage) XMP #1 6.0-6-6-18-24-n.a @ 533 MHz (1.650 Volts) XMP #2 7.0-7-7-21-28-n.a @ 622 MHz (1.650 Volts) XMP #3 8.0-8-8-24-32-n.a @ 711 MHz (1.650 Volts) XMP #4 9.0-9-9-27-36-n.a @ 800 MHz (1.650 Volts) DIMM # 3 SMBus address 0x52 Memory type DDR3 Module format UDIMM Manufacturer (ID) Kingston (7F98000000000000000000) Size 4096 MBytes Max bandwidth PC3-12800 (800 MHz) Part number KHX1600C9D3/4GX Serial number 7A305C08 Manufacturing date Week 26/Year 13 Number of banks 8 Nominal Voltage 1.50 Volts EPP no XMP yes XMP revision 1.3 AMP no JEDEC timings table CL-tRCD-tRP-tRAS-tRC @ frequency JEDEC #1 6.0-6-6-16-22 @ 457 MHz JEDEC #2 7.0-7-7-19-26 @ 533 MHz JEDEC #3 8.0-8-8-22-30 @ 609 MHz JEDEC #4 9.0-9-9-24-33 @ 685 MHz JEDEC #5 10.0-10-10-27-37 @ 761 MHz JEDEC #6 11.0-11-11-28-39 @ 800 MHz XMP profile XMP-1600 Specification PC3-12800H Voltage level 1.650 Volts Min Cycle time 1.250 ns (800 MHz) Max CL 9.0 Min tRP 11.25 ns Min tRCD 11.25 ns Min tWR 15.00 ns Min tRAS 33.75 ns Min tRC 45.00 ns Min tRFC 260.00 ns Min tRTP 7.50 ns Min tRRD 6.00 ns XMP timings table CL-tRCD-tRP-tRAS-tRC-CR @ frequency (voltage) XMP #1 6.0-6-6-18-24-n.a @ 533 MHz (1.650 Volts) XMP #2 7.0-7-7-21-28-n.a @ 622 MHz (1.650 Volts) XMP #3 8.0-8-8-24-32-n.a @ 711 MHz (1.650 Volts) XMP #4 9.0-9-9-27-36-n.a @ 800 MHz (1.650 Volts) DIMM # 4 SMBus address 0x53 Memory type DDR3 Module format UDIMM Manufacturer (ID) Kingston (7F98000000000000000000) Size 4096 MBytes Max bandwidth PC3-10700 (667 MHz) Part number 9905403-437.A01LF Serial number 5B35C766 Manufacturing date Week 43/Year 11 Number of banks 8 Nominal Voltage 1.50 Volts EPP no XMP yes XMP revision 1.2 AMP no JEDEC timings table CL-tRCD-tRP-tRAS-tRC @ frequency JEDEC #1 6.0-6-6-17-23 @ 457 MHz JEDEC #2 7.0-7-7-20-27 @ 533 MHz JEDEC #3 8.0-8-8-22-30 @ 609 MHz JEDEC #4 9.0-9-9-24-33 @ 666 MHz XMP profile XMP-1600 Specification PC3-12800 Voltage level 1.650 Volts Min Cycle time 1.250 ns (800 MHz) Max CL 9.0 Min tRP 11.25 ns Min tRCD 11.25 ns Min tWR 15.00 ns Min tRAS 33.75 ns Min tRC 45.00 ns Min tRFC 160.00 ns Min tRTP 7.50 ns Min tRRD 6.00 ns XMP timings table CL-tRCD-tRP-tRAS-tRC-CR @ frequency (voltage) XMP #1 6.0-6-6-18-24-n.a @ 533 MHz (1.650 Volts) XMP #2 7.0-7-7-21-28-n.a @ 622 MHz (1.650 Volts) XMP #3 8.0-8-8-24-32-n.a @ 711 MHz (1.650 Volts) XMP #4 9.0-9-9-27-36-n.a @ 800 MHz (1.650 Volts) DIMM # 1 SPD registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 92 11 0B 02 04 21 00 01 03 11 01 08 0A 00 FC 00 10 69 78 69 30 69 11 18 81 20 08 3C 3C 00 F0 83 01 20 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 30 00 00 00 00 00 00 00 00 00 00 00 00 0F 11 20 00 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 01 98 07 13 26 7A 30 5E 08 AC E8 80 4B 48 58 31 36 30 30 43 39 44 33 2F 34 47 58 20 90 20 20 00 00 80 AD 00 00 00 00 00 00 00 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B0 0C 4A 01 13 01 08 00 00 11 2D 0A 5A 3C 00 50 5A C0 5A 78 11 0E 68 3F 00 20 08 3C 30 00 F0 3C 00 00 D0 00 00 24 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 5A DIMM # 2 SPD registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 92 10 0B 02 03 19 00 09 03 52 01 08 0C 00 3C 00 10 69 78 69 30 69 11 20 89 00 05 3C 3C 00 F0 83 05 20 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 30 00 00 00 00 00 00 00 00 00 00 00 00 0F 11 01 01 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 01 98 04 11 43 58 35 2E 70 2A F0 80 39 39 30 35 34 30 33 2D 34 33 37 2E 41 30 31 4C 90 46 20 00 00 80 AD 00 00 00 00 00 00 00 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B0 0C 4A 01 12 01 08 00 00 00 2D 0A 5A 3C 00 50 5A C0 5A 78 11 0E 68 3F 00 00 05 3C 30 00 F0 3C 00 00 D0 00 00 24 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 5A DIMM # 3 SPD registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 92 11 0B 02 04 21 00 01 03 11 01 08 0A 00 FC 00 10 69 78 69 30 69 11 18 81 20 08 3C 3C 00 F0 83 01 20 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 30 00 00 00 00 00 00 00 00 00 00 00 00 0F 11 20 00 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 01 98 07 13 26 7A 30 5C 08 AC E8 80 4B 48 58 31 36 30 30 43 39 44 33 2F 34 47 58 20 90 20 20 00 00 80 AD 00 00 00 00 00 00 00 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B0 0C 4A 01 13 01 08 00 00 11 2D 0A 5A 3C 00 50 5A C0 5A 78 11 0E 68 3F 00 20 08 3C 30 00 F0 3C 00 00 D0 00 00 24 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 5A DIMM # 4 SPD registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 92 10 0B 02 03 19 00 09 03 52 01 08 0C 00 3C 00 10 69 78 69 30 69 11 20 89 00 05 3C 3C 00 F0 83 05 20 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 30 00 00 00 00 00 00 00 00 00 00 00 00 0F 11 01 01 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 01 98 04 11 43 5B 35 C7 66 2A F0 80 39 39 30 35 34 30 33 2D 34 33 37 2E 41 30 31 4C 90 46 20 00 00 80 AD 00 00 00 00 00 00 00 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B0 0C 4A 01 12 01 08 00 00 00 2D 0A 5A 3C 00 50 5A C0 5A 78 11 0E 68 3F 00 00 05 3C 30 00 F0 3C 00 00 D0 00 00 24 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 5A Monitoring ------------------------------------------------------------------------- Mainboard Model Z68 Extreme4 Gen3 (0x00000563 - 0x4F84A030) LPCIO ------------------------------------------------------------------------- LPCIO Vendor Nuvoton LPCIO Model NCT6776 LPCIO Vendor ID 0x5CA3 LPCIO Chip ID 0xC3 LPCIO Revision ID 0x33 Config Mode I/O address 0x2E Config Mode LDN 0xB Config Mode registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 FF FF 02 FF FF FF FF 0B FF FF FF FF FF FF FF FF 10 FF FF FF FF FF FF FF FF FF FF F8 0E 00 00 FF FF 20 C3 33 FF 00 5C 00 00 D0 00 FF 62 00 80 00 00 01 30 E1 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 40 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 50 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 60 02 90 00 00 FF FF FF FF FF FF FF FF FF FF FF FF 70 00 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF Register space LPC, base address = 0x0290 Hardware Monitors ------------------------------------------------------------------------- Hardware monitor Nuvoton NCT6776 Voltage 0 1.02 Volts [0x7F] (CPU VCORE) Voltage 1 1.84 Volts [0xE6] (VIN1) Voltage 2 3.39 Volts [0xD4] (AVCC) Voltage 3 3.38 Volts [0xD3] (3VCC) Voltage 4 1.00 Volts [0x7D] (VIN4) Voltage 5 1.69 Volts [0xD3] (VIN5) Voltage 6 1.06 Volts [0x85] (VIN6) Temperature 0 34 degC (93 degF) [0x22] (SYSTIN) Temperature 1 35 degC (94 degF) [0x45] (CPUTIN) Temperature 2 37 degC (98 degF) [0x4A] (AUXTIN) Temperature 3 40 degC (104 degF) [0x28] (TMPIN3) Fan 0 1238 RPM [0x4D6] (SYSFANIN) Fan 1 1856 RPM [0x740] (CPUFANIN) Fan 3 967 RPM [0x3C7] (AUXFANIN1) Hardware registers Register space LPC, base address = 0x0290 bank 0 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 04 50 04 CF 00 FF FF FF FF FF FF FF FF FF FF FF 10 04 74 00 00 00 00 FF FF 40 00 00 00 00 85 00 00 20 8D E5 D3 D3 7D D3 85 22 FF FF FF DA 00 00 00 00 30 00 00 00 00 00 00 00 00 00 00 00 FF FF FF FF FF 40 03 00 50 FF FF 00 3F FF 2D FF FF FF 18 05 00 A3 50 FF FF FF FF FF FF FF FF C1 FF FF FF FF 00 00 FF 60 A3 FF FF FF FF 01 00 FF FF FF FF FF FF FF FF FF 70 00 0A 00 29 00 29 00 25 00 FF FF FF FF FF FF FF 80 FF 03 1F 0F FF 3C 3C 3C 00 00 00 00 00 00 00 00 90 0A 00 00 00 00 0A 0A 0A 0A AA EF 80 FF 40 46 C4 A0 0E 01 00 00 FF 00 00 FF 00 00 80 66 66 06 01 01 B0 00 00 00 00 00 00 33 00 1C 00 00 34 28 00 C4 FF C0 01 00 00 00 00 00 00 00 00 04 02 FF FF FF FF FF D0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF E0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF F0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF bank 1 50 22 80 00 4B 00 50 00 FF FF FF FF FF FF FF FF FF 80 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 90 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF A0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF B0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF C0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF D0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF F0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF bank 2 50 25 00 00 4B 00 50 00 FF FF FF FF FF FF FF FF FF 80 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 90 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF A0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF B0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF C0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF D0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF F0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF bank 3 50 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 80 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 90 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF A0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF B0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF C0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF D0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF F0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF bank 4 50 00 13 FF FF 00 00 00 FF 00 DE 1D B1 09 FF FF FF 80 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 90 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF A0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF B0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF C0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF D0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF F0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF bank 5 50 D7 00 00 FF 00 00 00 00 FF FF FF FF FF FF FF FF 80 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 90 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF A0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF B0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF C0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF D0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF F0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF bank 6 50 7F 7F 7F 7F 7F 7F 04 D8 00 A4 00 A4 03 C7 00 A4 80 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 90 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF A0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF B0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF C0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF D0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF F0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF bank 7 50 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 80 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 90 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF A0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF B0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF C0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF D0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF F0 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF Hardware monitor NVIDIA NVAPI Temperature 0 45 degC (113 degF) [0x2D] (GPU) PCI Devices ------------------------------------------------------------------------- Register space PCI Express, base address = 0x0F8000000 Description Host Bridge Location bus 0 (0x00), device 0 (0x00), function 0 (0x00) Common header Vendor ID 0x8086 Model ID 0x0100 Revision ID 0x09 PI 0x00 SubClass 0x00 BaseClass 0x06 Cache Line 0x00 Latency 0x00 Header 0x00 PCI header Subvendor ID 0x1849 Subsystem ID 0x0100 Int. Line 0x00 Int. Pin 0x00 PCI capability Caps class Vendor Dependant Caps offset 0xE0 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 00 01 06 00 90 20 09 00 00 06 00 00 00 00 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00 49 18 00 01 30 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 40 01 90 D1 FE 00 00 00 00 01 00 D1 FE 00 00 00 00 50 03 00 00 00 09 00 00 00 00 00 00 00 01 00 80 DF 60 05 00 00 F8 00 00 00 00 01 80 D1 FE 00 00 00 00 70 00 00 00 FF 01 00 00 00 00 0C 00 FF 7F 00 00 00 80 10 11 11 00 00 00 10 00 1A 00 00 00 00 00 00 00 90 01 00 00 FF 01 00 00 00 01 00 F0 1E 02 00 00 00 A0 01 00 00 00 02 00 00 00 01 00 00 1F 02 00 00 00 B0 01 00 00 E0 01 00 00 E0 01 00 80 DF 01 00 00 E0 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 09 00 0C 01 96 C8 80 E2 90 00 00 16 00 00 00 00 F0 00 00 00 00 00 00 00 00 B8 0F 06 00 00 00 00 00 Description PCI to PCI Bridge Location bus 0 (0x00), device 1 (0x01), function 0 (0x00) Common header Vendor ID 0x8086 Model ID 0x0101 Revision ID 0x09 PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x81 PCI header Primary bus 0x00 Secondary bus 0x01 Int. Line 0x0B Int. Pin 0x01 PCI capability Caps class Subsystem Vendor Caps offset 0x88 SubVendor ID 0x1849 SubSystem ID 0x0101 PCI capability Caps class Power Management Caps offset 0x80 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x90 PCI capability Caps class PCI Express Caps offset 0xA0 Device type Root Port of PCI-E Root Complex Port 2 Version 2.0 Physical slot #0 Presence detect yes Link width 16x (max 16x) Extended capabilities Caps class Virtual Channel Caps offset 0x100 Caps class Root Complex Link Declaration Caps offset 0x140 Link Entries # 1 Port Number 2 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 01 01 07 04 10 00 09 00 04 06 10 00 81 00 10 00 00 00 00 00 00 00 00 00 01 01 00 E0 E0 00 20 20 00 F6 00 F7 01 E0 F1 F1 00 00 00 00 00 00 00 00 30 00 00 00 00 88 00 00 00 00 00 00 00 0B 01 18 00 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0A 80 01 90 03 C8 08 00 00 00 0D 80 00 00 49 18 01 01 90 05 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A0 10 00 42 01 00 80 00 00 00 00 01 00 02 2D 21 02 B0 40 00 02 51 80 25 0C 00 00 00 40 00 00 00 00 00 C0 00 00 00 00 00 08 00 00 00 00 00 00 00 00 00 00 D0 42 00 01 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 01 00 00 00 00 00 00 00 10 00 100 02 00 01 14 00 00 00 00 00 00 00 00 00 00 00 00 110 01 00 00 00 01 00 00 80 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description Communication Device Location bus 0 (0x00), device 22 (0x16), function 0 (0x00) Common header Vendor ID 0x8086 Model ID 0x1C3A Revision ID 0x04 PI 0x00 SubClass 0x80 BaseClass 0x07 Cache Line 0x00 Latency 0x00 Header 0x80 PCI header Address 0 (memory) 0xF770A000 Subvendor ID 0x1849 Subsystem ID 0x1C3A Int. Line 0x00 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x50 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x8C PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 3A 1C 06 04 10 00 04 00 80 07 00 00 80 00 10 04 A0 70 F7 00 00 00 00 00 00 00 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00 49 18 3A 1C 30 00 00 00 00 50 00 00 00 00 00 00 00 00 01 00 00 40 45 02 00 1E 10 00 01 80 06 01 00 60 F0 1F 00 10 50 01 8C 03 C8 08 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80 00 00 00 00 00 00 00 00 00 00 00 00 05 00 81 00 90 0C F0 EF FE 00 00 00 00 71 49 00 00 00 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 02 00 00 C0 C0 FF 4F 76 D5 4E 15 AF 5F B3 CF A4 8A 08 8F 46 FB D0 04 51 8A 4B B9 7F C8 CB 59 0E C2 2B CE B7 DC 5F E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description USB 2.0 Controller (EHCI) Location bus 0 (0x00), device 26 (0x1A), function 0 (0x00) Common header Vendor ID 0x8086 Model ID 0x1C2D Revision ID 0x05 PI 0x20 SubClass 0x03 BaseClass 0x0C Cache Line 0x00 Latency 0x00 Header 0x00 PCI header Address 0 (memory) 0xF7707000 Subvendor ID 0x1849 Subsystem ID 0x1C2D Int. Line 0x10 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x50 Caps version 1.1 PCI capability Caps class Debug Port Caps offset 0x58 PCI capability Caps class 0x13 Caps offset 0x98 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 2D 1C 06 00 90 02 05 20 03 0C 00 00 00 00 10 00 70 70 F7 00 00 00 00 00 00 00 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00 49 18 2D 1C 30 00 00 00 00 50 00 00 00 00 00 00 00 10 01 00 00 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 01 58 C2 C9 00 00 00 00 0A 98 A0 20 00 00 00 00 60 20 20 81 07 00 00 00 00 01 00 00 01 00 20 00 00 70 00 00 FF 3F 00 00 00 00 00 00 00 00 00 00 00 00 80 00 00 80 00 11 88 0C 93 30 0D 00 24 00 00 00 00 90 00 00 00 00 00 00 00 00 13 00 06 03 00 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 AA FF 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 08 A0 40 00 04 12 62 02 00 7B 5C 54 F0 00 00 00 00 88 85 80 00 87 0F 05 08 08 17 5B 20 Description Multimedia device Location bus 0 (0x00), device 27 (0x1B), function 0 (0x00) Common header Vendor ID 0x8086 Model ID 0x1C20 Revision ID 0x05 PI 0x00 SubClass 0x03 BaseClass 0x04 Cache Line 0x10 Latency 0x00 Header 0x00 PCI header Address 0 (memory) 0xF7700000 Subvendor ID 0x1849 Subsystem ID 0x8892 Int. Line 0x16 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x50 Caps version 1.1 PCI capability Caps class Message Signalled Interrupts Caps offset 0x60 PCI capability Caps class PCI Express Caps offset 0x70 Device type Root Complex Integrated Endpoint Device Port 0 Version 1.0 Link width 0x (max 0x) Extended capabilities Caps class Virtual Channel Caps offset 0x100 Caps class Root Complex Link Declaration Caps offset 0x130 Link Entries # 1 Port Number 15 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 20 1C 06 00 10 00 05 00 03 04 10 00 00 00 10 04 00 70 F7 00 00 00 00 00 00 00 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00 49 18 92 88 30 00 00 00 00 50 00 00 00 00 00 00 00 16 01 00 00 40 01 00 00 05 00 00 00 00 00 00 00 00 00 00 00 00 50 01 60 42 C8 00 00 00 00 00 00 00 00 00 00 00 00 60 05 70 80 00 00 00 00 00 00 00 00 00 00 00 00 00 70 10 00 91 00 00 00 00 10 00 08 10 00 00 00 00 00 80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 04 02 01 00 24 00 40 00 0C A3 82 10 00 33 02 D0 00 0C A3 02 10 00 33 02 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 87 0F 05 08 00 00 00 00 100 02 00 01 13 01 00 00 00 00 00 00 00 00 00 00 00 110 00 00 00 00 01 00 00 80 00 00 00 00 00 00 00 00 120 22 00 00 81 00 00 00 00 00 00 00 00 00 00 00 00 130 05 00 01 00 00 01 00 0F 00 00 00 00 00 00 00 00 Description PCI to PCI Bridge Location bus 0 (0x00), device 28 (0x1C), function 0 (0x00) Common header Vendor ID 0x8086 Model ID 0x1C10 Revision ID 0xB5 PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x81 PCI header Primary bus 0x00 Secondary bus 0x02 Int. Line 0x0B Int. Pin 0x01 PCI capability Caps class PCI Express Caps offset 0x40 Device type Root Port of PCI-E Root Complex Port 1 Version 2.0 Physical slot #0 Presence detect no Link width 0x (max 4x) PCI capability Caps class Message Signalled Interrupts Caps offset 0x80 PCI capability Caps class Subsystem Vendor Caps offset 0x90 SubVendor ID 0x1849 SubSystem ID 0x1C10 PCI capability Caps class Power Management Caps offset 0xA0 Caps version 1.1 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 10 1C 04 04 10 00 B5 00 04 06 10 00 81 00 10 00 00 00 00 00 00 00 00 00 02 02 00 F0 00 00 20 20 F0 FF 00 00 F1 FF 01 00 00 00 00 00 00 00 00 00 30 00 00 00 00 40 00 00 00 00 00 00 00 0B 01 00 00 40 10 80 42 01 00 80 00 00 00 00 10 00 42 4C 11 01 50 00 00 01 10 60 00 04 00 00 00 00 00 00 00 00 00 60 00 00 00 00 16 00 00 00 00 00 00 00 00 00 00 00 70 02 00 01 00 00 00 00 00 00 00 00 00 00 00 00 00 80 05 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 90 0D A0 00 00 49 18 10 1C 00 00 00 00 00 00 00 00 A0 01 00 02 C8 00 00 00 00 00 00 00 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 01 02 0B 00 00 02 00 11 01 00 00 00 00 E0 00 3F 00 00 00 00 00 00 01 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 87 0F 05 08 00 00 00 00 100 00 00 00 00 00 00 00 00 00 00 00 00 11 00 06 00 110 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description PCI to PCI Bridge Location bus 0 (0x00), device 28 (0x1C), function 4 (0x04) Common header Vendor ID 0x8086 Model ID 0x1C18 Revision ID 0xB5 PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x81 PCI header Primary bus 0x00 Secondary bus 0x03 Int. Line 0x0B Int. Pin 0x01 PCI capability Caps class PCI Express Caps offset 0x40 Device type Root Port of PCI-E Root Complex Port 5 Version 2.0 Physical slot #0 Presence detect yes Link width 1x (max 1x) PCI capability Caps class Message Signalled Interrupts Caps offset 0x80 PCI capability Caps class Subsystem Vendor Caps offset 0x90 SubVendor ID 0x1849 SubSystem ID 0x1C18 PCI capability Caps class Power Management Caps offset 0xA0 Caps version 1.1 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 18 1C 07 04 10 00 B5 00 04 06 10 00 81 00 10 00 00 00 00 00 00 00 00 00 03 03 00 D0 D0 00 00 20 60 F7 60 F7 F1 FF 01 00 00 00 00 00 00 00 00 00 30 00 00 00 00 40 00 00 00 00 00 00 00 0B 01 00 00 40 10 80 42 01 00 80 00 00 00 00 10 00 12 3C 11 05 50 40 00 12 70 00 B2 24 00 00 00 40 00 00 00 00 00 60 00 00 00 00 16 00 00 00 00 00 00 00 00 00 00 00 70 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80 05 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 90 0D A0 00 00 49 18 18 1C 00 00 00 00 00 00 00 00 A0 01 00 02 C8 00 00 00 00 00 00 00 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 01 02 0B 00 00 00 80 11 81 00 00 00 00 E0 00 3F 00 00 00 00 00 00 01 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 87 0F 05 08 00 00 00 00 100 00 00 00 00 00 00 00 00 00 00 00 00 11 00 06 00 110 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description PCI to PCI Bridge Location bus 0 (0x00), device 28 (0x1C), function 5 (0x05) Common header Vendor ID 0x8086 Model ID 0x1C1A Revision ID 0xB5 PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x81 PCI header Primary bus 0x00 Secondary bus 0x04 Int. Line 0x0A Int. Pin 0x02 PCI capability Caps class PCI Express Caps offset 0x40 Device type Root Port of PCI-E Root Complex Port 6 Version 2.0 Physical slot #0 Presence detect yes Link width 1x (max 1x) PCI capability Caps class Message Signalled Interrupts Caps offset 0x80 PCI capability Caps class Subsystem Vendor Caps offset 0x90 SubVendor ID 0x1849 SubSystem ID 0x1C1A PCI capability Caps class Power Management Caps offset 0xA0 Caps version 1.1 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 1A 1C 06 04 10 00 B5 00 04 06 10 00 81 00 10 00 00 00 00 00 00 00 00 00 04 04 00 F0 00 00 00 20 50 F7 50 F7 F1 FF 01 00 00 00 00 00 00 00 00 00 30 00 00 00 00 40 00 00 00 00 00 00 00 0A 02 00 00 40 10 80 42 01 00 80 00 00 00 00 10 00 12 3C 11 06 50 40 00 12 70 00 B2 2C 00 00 00 40 00 00 00 00 00 60 00 00 00 00 16 00 00 00 00 00 00 00 00 00 00 00 70 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80 05 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 90 0D A0 00 00 49 18 1A 1C 00 00 00 00 00 00 00 00 A0 01 00 02 C8 00 00 00 00 00 00 00 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 01 02 0B 00 00 00 80 11 81 00 00 00 00 E0 00 03 00 00 00 00 00 00 01 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 87 0F 05 08 00 00 00 00 100 00 00 00 00 00 00 00 00 00 00 00 00 11 00 06 00 110 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description PCI to PCI Bridge Location bus 0 (0x00), device 28 (0x1C), function 6 (0x06) Common header Vendor ID 0x8086 Model ID 0x1C1C Revision ID 0xB5 PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x81 PCI header Primary bus 0x00 Secondary bus 0x05 Int. Line 0x03 Int. Pin 0x03 PCI capability Caps class PCI Express Caps offset 0x40 Device type Root Port of PCI-E Root Complex Port 7 Version 2.0 Physical slot #0 Presence detect yes Link width 1x (max 1x) PCI capability Caps class Message Signalled Interrupts Caps offset 0x80 PCI capability Caps class Subsystem Vendor Caps offset 0x90 SubVendor ID 0x1849 SubSystem ID 0x1C1C PCI capability Caps class Power Management Caps offset 0xA0 Caps version 1.1 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 1C 1C 06 04 10 00 B5 00 04 06 10 00 81 00 10 00 00 00 00 00 00 00 00 00 05 05 00 F0 00 00 00 20 40 F7 40 F7 F1 FF 01 00 00 00 00 00 00 00 00 00 30 00 00 00 00 40 00 00 00 00 00 00 00 03 03 00 00 40 10 80 42 01 00 80 00 00 00 00 10 00 12 3C 11 07 50 40 00 12 70 00 B2 34 00 00 00 40 00 00 00 00 00 60 00 00 00 00 16 00 00 00 00 00 00 00 00 00 00 00 70 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80 05 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 90 0D A0 00 00 49 18 1C 1C 00 00 00 00 00 00 00 00 A0 01 00 02 C8 00 00 00 00 00 00 00 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 01 02 0B 00 00 00 80 11 81 00 00 00 00 E0 00 03 00 00 00 00 00 00 01 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 87 0F 05 08 00 00 00 00 100 00 00 00 00 00 00 00 00 00 00 00 00 11 00 06 00 110 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description PCI to PCI Bridge Location bus 0 (0x00), device 28 (0x1C), function 7 (0x07) Common header Vendor ID 0x8086 Model ID 0x1C1E Revision ID 0xB5 PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x81 PCI header Primary bus 0x00 Secondary bus 0x06 Int. Line 0x05 Int. Pin 0x04 PCI capability Caps class PCI Express Caps offset 0x40 Device type Root Port of PCI-E Root Complex Port 8 Version 2.0 Physical slot #0 Presence detect yes Link width 1x (max 1x) PCI capability Caps class Message Signalled Interrupts Caps offset 0x80 PCI capability Caps class Subsystem Vendor Caps offset 0x90 SubVendor ID 0x1849 SubSystem ID 0x1C1E PCI capability Caps class Power Management Caps offset 0xA0 Caps version 1.1 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 1E 1C 07 04 10 00 B5 00 04 06 10 00 81 00 10 00 00 00 00 00 00 00 00 00 06 0F 00 C0 C0 00 20 20 10 F7 30 F7 11 F2 11 F2 00 00 00 00 00 00 00 00 30 00 00 00 00 40 00 00 00 00 00 00 00 05 04 00 00 40 10 80 42 01 00 80 00 00 00 00 10 00 12 4C 11 08 50 00 00 12 B0 00 B2 3C 00 00 00 40 00 00 00 00 00 60 00 00 00 00 16 00 00 00 00 00 00 00 00 00 00 00 70 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80 05 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 90 0D A0 00 00 49 18 1E 1C 00 00 00 00 00 00 00 00 A0 01 00 02 C8 00 00 00 00 00 00 00 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 01 02 0B 00 00 00 80 11 81 00 00 00 00 E0 00 03 00 00 00 00 00 00 01 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 87 0F 05 08 00 00 00 00 100 00 00 00 00 00 00 00 00 00 00 00 00 11 00 06 00 110 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description USB 2.0 Controller (EHCI) Location bus 0 (0x00), device 29 (0x1D), function 0 (0x00) Common header Vendor ID 0x8086 Model ID 0x1C26 Revision ID 0x05 PI 0x20 SubClass 0x03 BaseClass 0x0C Cache Line 0x00 Latency 0x00 Header 0x00 PCI header Address 0 (memory) 0xF7706000 Subvendor ID 0x1849 Subsystem ID 0x1C26 Int. Line 0x17 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x50 Caps version 1.1 PCI capability Caps class Debug Port Caps offset 0x58 PCI capability Caps class 0x13 Caps offset 0x98 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 26 1C 06 00 90 02 05 20 03 0C 00 00 00 00 10 00 60 70 F7 00 00 00 00 00 00 00 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00 49 18 26 1C 30 00 00 00 00 50 00 00 00 00 00 00 00 17 01 00 00 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 01 58 C2 C9 00 00 00 00 0A 98 A0 20 00 00 00 00 60 20 20 01 06 00 00 00 00 01 00 00 01 00 20 00 00 70 00 00 FF 3F 00 00 00 00 00 00 00 00 00 00 00 00 80 00 00 80 00 11 88 0C 93 30 0D 00 24 00 00 00 00 90 00 00 00 00 00 00 00 00 13 00 06 03 00 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 AA FF 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 10 23 04 00 00 90 22 08 34 0E 20 28 F0 00 00 00 00 88 85 80 00 87 0F 05 08 08 17 5B 20 Description PCI to ISA Bridge Location bus 0 (0x00), device 31 (0x1F), function 0 (0x00) Common header Vendor ID 0x8086 Model ID 0x1C44 Revision ID 0x05 PI 0x00 SubClass 0x01 BaseClass 0x06 Cache Line 0x00 Latency 0x00 Header 0x80 PCI header Subvendor ID 0x1849 Subsystem ID 0x1C44 Int. Line 0x00 Int. Pin 0x00 PCI capability Caps class Vendor Dependant Caps offset 0xE0 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 44 1C 07 00 10 02 05 00 01 06 00 00 80 00 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00 49 18 44 1C 30 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 40 01 04 00 00 80 00 00 00 01 05 00 00 10 00 00 00 50 F8 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 8B 8A 84 85 D0 00 00 00 80 80 83 8B F8 F0 00 00 70 78 F0 78 F0 78 F0 78 F0 78 F0 78 F0 78 F0 78 F0 80 00 00 00 14 91 02 0C 00 41 02 0C 00 51 02 0C 00 90 00 00 00 00 00 0F 00 00 00 00 00 00 00 00 00 00 A0 08 0E 80 00 49 38 06 00 00 47 00 00 00 00 01 80 B0 00 00 00 00 00 00 00 00 00 00 00 09 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 33 22 11 00 67 45 00 00 CF FF 00 00 08 00 00 00 E0 09 00 0C 10 00 00 00 00 B3 02 64 0C 00 00 00 00 F0 01 C0 D1 FE 00 00 00 00 87 0F 05 08 00 00 00 00 Description IDE Controller Location bus 0 (0x00), device 31 (0x1F), function 2 (0x02) Common header Vendor ID 0x8086 Model ID 0x1C00 Revision ID 0x05 PI 0x8F SubClass 0x01 BaseClass 0x01 Cache Line 0x00 Latency 0x00 Header 0x00 PCI header Address 0 (port) 0x0000F0D0 Address 1 (port) 0x0000F0C0 Address 2 (port) 0x0000F0B0 Address 3 (port) 0x0000F0A0 Address 4 (port) 0x0000F090 Address 5 (port) 0x0000F080 Subvendor ID 0x1849 Subsystem ID 0x1C00 Int. Line 0x13 Int. Pin 0x02 PCI capability Caps class Power Management Caps offset 0x70 Caps version 1.2 PCI capability Caps class 0x13 Caps offset 0xB0 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 00 1C 05 00 B0 02 05 8F 01 01 00 00 00 00 10 D1 F0 00 00 C1 F0 00 00 B1 F0 00 00 A1 F0 00 00 20 91 F0 00 00 81 F0 00 00 00 00 00 00 49 18 00 1C 30 00 00 00 00 70 00 00 00 00 00 00 00 13 02 00 00 40 00 80 00 80 00 00 00 00 00 00 00 00 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 01 B0 03 00 08 00 00 00 00 00 00 00 00 00 00 00 80 05 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 90 00 00 0F 8A 83 01 00 00 08 42 5C 01 00 00 00 00 A0 E0 00 00 00 00 00 39 00 00 00 00 00 00 00 00 00 B0 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 0D 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 87 0F 05 08 00 00 00 00 Description SMBus Controller Location bus 0 (0x00), device 31 (0x1F), function 3 (0x03) Common header Vendor ID 0x8086 Model ID 0x1C22 Revision ID 0x05 PI 0x00 SubClass 0x05 BaseClass 0x0C Cache Line 0x00 Latency 0x00 Header 0x00 PCI header Address 0 (memory) 0xF7705000 Address 4 (port) 0x0000F000 Subvendor ID 0x1849 Subsystem ID 0x1C22 Int. Line 0x04 Int. Pin 0x03 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 22 1C 03 00 80 02 05 00 05 0C 00 00 00 00 10 04 50 70 F7 00 00 00 00 00 00 00 00 00 00 00 00 20 01 F0 00 00 00 00 00 00 00 00 00 00 49 18 22 1C 30 00 00 00 00 00 00 00 00 00 00 00 00 04 03 00 00 40 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 03 04 04 00 00 00 08 08 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80 04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 87 0F 05 08 00 00 00 00 Description IDE Controller Location bus 0 (0x00), device 31 (0x1F), function 5 (0x05) Common header Vendor ID 0x8086 Model ID 0x1C08 Revision ID 0x05 PI 0x85 SubClass 0x01 BaseClass 0x01 Cache Line 0x00 Latency 0x00 Header 0x00 PCI header Address 0 (port) 0x0000F070 Address 1 (port) 0x0000F060 Address 2 (port) 0x0000F050 Address 3 (port) 0x0000F040 Address 4 (port) 0x0000F030 Address 5 (port) 0x0000F020 Subvendor ID 0x1849 Subsystem ID 0x1C08 Int. Line 0x13 Int. Pin 0x02 PCI capability Caps class Power Management Caps offset 0x70 Caps version 1.2 PCI capability Caps class 0x13 Caps offset 0xB0 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 86 80 08 1C 05 00 B0 02 05 85 01 01 00 00 00 00 10 71 F0 00 00 61 F0 00 00 51 F0 00 00 41 F0 00 00 20 31 F0 00 00 21 F0 00 00 00 00 00 00 49 18 08 1C 30 00 00 00 00 70 00 00 00 00 00 00 00 13 02 00 00 40 00 80 00 80 00 00 00 00 00 00 00 00 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 01 B0 03 00 08 00 00 00 00 00 00 00 00 00 00 00 80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 90 00 00 03 02 00 00 00 00 00 00 00 00 00 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B0 13 00 06 03 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 87 0F 05 08 00 00 00 00 Description VGA Controller Location bus 1 (0x01), device 0 (0x00), function 0 (0x00) Common header Vendor ID 0x10DE Model ID 0x0A65 Revision ID 0xA2 PI 0x00 SubClass 0x00 BaseClass 0x03 Cache Line 0x10 Latency 0x00 Header 0x80 PCI header Address 0 (memory) 0xF6000000 Address 1 (memory) 0xE0000000 Address 3 (memory) 0xF0000000 Address 5 (port) 0x0000E000 Subvendor ID 0x1043 Subsystem ID 0x83C7 Int. Line 0x10 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x60 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x68 PCI capability Caps class PCI Express Caps offset 0x78 Device type PCI-E Endpoint Device Port 0 Version 2.0 Link width 16x (max 16x) PCI capability Caps class Vendor Dependant Caps offset 0xB4 Extended capabilities Caps class Virtual Channel Caps offset 0x100 Caps class Power Budgeting Caps offset 0x128 Caps class Vendor Specific Caps offset 0x600 Vendor ID 1 Size 36 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 DE 10 65 0A 07 00 10 00 A2 00 00 03 10 00 80 00 10 00 00 00 F6 0C 00 00 E0 00 00 00 00 0C 00 00 F0 20 00 00 00 00 01 E0 00 00 00 00 00 00 43 10 C7 83 30 00 00 00 00 60 00 00 00 00 00 00 00 10 01 00 00 40 43 10 C7 83 00 00 00 00 00 00 00 00 00 00 00 00 50 01 00 00 00 01 00 00 00 CE D6 23 00 00 00 00 00 60 01 68 03 00 08 00 00 00 05 78 80 00 00 00 00 00 70 00 00 00 00 00 00 00 00 10 B4 02 00 E0 8D 2C 01 80 10 29 00 00 02 2D 05 00 48 01 02 11 00 00 00 00 90 00 00 00 00 00 00 00 00 00 00 00 00 10 00 00 00 A0 00 00 00 00 00 00 00 00 01 00 01 00 00 00 00 00 B0 00 00 00 00 09 00 14 01 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100 02 00 81 12 00 00 00 00 00 00 00 00 00 00 00 00 110 00 00 00 00 01 00 00 80 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 04 00 01 60 00 00 00 00 130 21 81 07 00 00 00 00 00 00 00 A0 28 00 00 FF 63 Description Multimedia device Location bus 1 (0x01), device 0 (0x00), function 1 (0x01) Common header Vendor ID 0x10DE Model ID 0x0BE3 Revision ID 0xA1 PI 0x00 SubClass 0x03 BaseClass 0x04 Cache Line 0x10 Latency 0x00 Header 0x80 PCI header Address 0 (memory) 0xF7080000 Subvendor ID 0x1043 Subsystem ID 0x83C7 Int. Line 0x11 Int. Pin 0x02 PCI capability Caps class Power Management Caps offset 0x60 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x68 PCI capability Caps class PCI Express Caps offset 0x78 Device type PCI-E Endpoint Device Port 0 Version 2.0 Link width 16x (max 16x) PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 DE 10 E3 0B 06 00 10 00 A1 00 03 04 10 00 80 00 10 00 00 08 F7 00 00 00 00 00 00 00 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00 43 10 C7 83 30 00 00 00 00 60 00 00 00 00 00 00 00 11 02 00 00 40 43 10 C7 83 00 00 00 00 00 00 00 00 00 00 00 00 50 00 00 00 00 00 00 00 00 CE D6 23 00 00 00 00 00 60 01 68 03 00 08 00 00 00 05 78 80 00 00 00 00 00 70 00 00 00 00 00 00 00 00 10 00 02 00 A0 8D 2C 01 80 00 29 00 00 02 2D 04 00 48 01 02 11 00 00 00 00 90 00 00 00 00 00 00 00 00 00 00 00 00 10 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 01 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100 00 00 00 00 00 00 00 00 00 00 00 00 11 20 06 00 110 00 20 00 00 00 20 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description IDE Controller Location bus 3 (0x03), device 0 (0x00), function 0 (0x00) Common header Vendor ID 0x1B4B Model ID 0x91A0 Revision ID 0x12 PI 0x8F SubClass 0x01 BaseClass 0x01 Cache Line 0x10 Latency 0x00 Header 0x00 PCI header Address 0 (port) 0x0000D040 Address 1 (port) 0x0000D030 Address 2 (port) 0x0000D020 Address 3 (port) 0x0000D010 Address 4 (port) 0x0000D000 Address 5 (memory) 0xF7610000 Subvendor ID 0x1849 Subsystem ID 0x91A0 Int. Line 0x10 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x40 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x50 PCI capability Caps class PCI Express Caps offset 0x70 Device type Legacy PCI-E Endpoint Device Port 0 Version 2.0 Link width 1x (max 1x) Extended capabilities Caps class Advanced Error Reporting Caps offset 0x100 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 4B 1B A0 91 07 00 10 00 12 8F 01 01 10 00 00 00 10 41 D0 00 00 31 D0 00 00 21 D0 00 00 11 D0 00 00 20 01 D0 00 00 00 00 61 F7 00 00 00 00 49 18 A0 91 30 00 00 00 00 40 00 00 00 00 00 00 00 10 01 00 00 40 01 50 03 40 00 00 00 00 00 00 00 00 00 00 00 00 50 05 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 10 00 12 00 02 87 90 05 00 20 09 00 12 3C 03 00 80 40 00 12 10 00 00 00 00 00 00 00 00 00 00 00 00 90 00 00 00 00 10 00 00 00 00 00 00 00 00 00 00 00 A0 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100 01 00 01 00 00 00 00 00 00 00 00 00 30 20 06 00 110 00 20 00 00 00 20 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description USB Controller Location bus 4 (0x04), device 0 (0x00), function 0 (0x00) Common header Vendor ID 0x1B6F Model ID 0x7023 Revision ID 0x01 PI 0x30 SubClass 0x03 BaseClass 0x0C Cache Line 0x10 Latency 0x00 Header 0x00 PCI header Address 0 (memory) 0xF7500000 Subvendor ID 0x1849 Subsystem ID 0x7023 Int. Line 0x00 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x50 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x70 PCI capability Caps class PCI Express Caps offset 0xA0 Device type PCI-E Endpoint Device Port 0 Version 2.0 Link width 1x (max 1x) Extended capabilities Caps class Advanced Error Reporting Caps offset 0x100 Caps class Device Serial Number Caps offset 0x190 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 6F 1B 23 70 06 04 10 00 01 30 03 0C 10 00 00 00 10 04 00 50 F7 00 00 00 00 00 00 00 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00 49 18 23 70 30 00 00 00 00 50 00 00 00 00 00 00 00 00 01 00 00 40 00 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 50 01 70 03 FE 00 00 00 00 00 00 00 00 05 00 0D 0C 60 30 20 00 00 00 00 00 00 00 00 00 00 00 00 FF 00 70 05 A0 85 01 0C F0 EF FE 00 00 00 00 51 49 00 00 80 FE 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 90 10 02 20 50 90 62 8D 29 A2 E0 8C A1 18 1D 42 D0 A0 10 00 02 00 23 80 90 15 00 28 10 00 12 4C 07 00 B0 40 00 12 10 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 40 F0 00 00 00 00 00 00 00 00 04 01 21 20 F0 D0 00 F0 00 00 40 00 00 00 00 00 00 00 00 00 00 100 01 00 01 19 00 00 00 00 00 00 00 00 10 20 06 00 110 00 00 00 00 00 20 00 00 B4 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 10 00 01 19 00 00 00 00 00 00 00 00 04 00 04 00 Description USB Controller Location bus 5 (0x05), device 0 (0x00), function 0 (0x00) Common header Vendor ID 0x1B6F Model ID 0x7023 Revision ID 0x01 PI 0x30 SubClass 0x03 BaseClass 0x0C Cache Line 0x10 Latency 0x00 Header 0x00 PCI header Address 0 (memory) 0xF7400000 Subvendor ID 0x1849 Subsystem ID 0x7023 Int. Line 0x00 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x50 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x70 PCI capability Caps class PCI Express Caps offset 0xA0 Device type PCI-E Endpoint Device Port 0 Version 2.0 Link width 1x (max 1x) Extended capabilities Caps class Advanced Error Reporting Caps offset 0x100 Caps class Device Serial Number Caps offset 0x190 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 6F 1B 23 70 06 04 10 00 01 30 03 0C 10 00 00 00 10 04 00 40 F7 00 00 00 00 00 00 00 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00 49 18 23 70 30 00 00 00 00 50 00 00 00 00 00 00 00 00 01 00 00 40 00 00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 50 01 70 03 FE 00 00 00 00 00 00 00 00 05 00 0D 0C 60 30 20 00 00 00 00 00 00 00 00 00 00 00 00 FF 00 70 05 A0 85 01 0C F0 EF FE 00 00 00 00 91 49 00 00 80 FE 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 90 10 02 20 50 90 62 8D 29 A2 E0 8C A1 18 1D 42 D0 A0 10 00 02 00 23 80 90 15 00 28 10 00 12 4C 07 00 B0 40 00 12 10 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 40 F0 00 00 00 00 00 00 00 00 04 01 21 20 F0 D0 00 F0 00 00 40 00 00 00 00 00 00 00 00 00 00 100 01 00 01 19 00 00 00 00 00 00 00 00 10 20 06 00 110 00 00 00 00 00 20 00 00 B4 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 10 00 01 19 00 00 00 00 00 00 00 00 04 00 04 00 Description PCI to PCI Bridge Location bus 6 (0x06), device 0 (0x00), function 0 (0x00) Common header Vendor ID 0x10B5 Model ID 0x8608 Revision ID 0xBA PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x01 PCI header Address 0 (memory) 0xF7300000 Primary bus 0x06 Secondary bus 0x07 Int. Line 0x05 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x40 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x48 PCI capability Caps class PCI Express Caps offset 0x68 Device type Upstream Port of PCI-E Switch Port 0 Version 2.0 Link width 1x (max 1x) PCI capability Caps class Subsystem Vendor Caps offset 0xA4 SubVendor ID 0x10B5 SubSystem ID 0x8608 Extended capabilities Caps class Device Serial Number Caps offset 0x100 Caps class Advanced Error Reporting Caps offset 0xFB4 Caps class Power Budgeting Caps offset 0x138 Caps class Virtual Channel Caps offset 0x148 Caps class Vendor Specific Caps offset 0x448 Vendor ID 0 Size 204 Caps class Vendor Specific Caps offset 0x950 Vendor ID 1 Size 16 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 B5 10 08 86 07 04 10 00 BA 00 04 06 10 00 01 00 10 00 00 30 F7 00 00 00 00 06 07 0F 00 C1 C1 00 00 20 10 F7 20 F7 11 F2 11 F2 00 00 00 00 00 00 00 00 30 00 00 00 00 40 00 00 00 00 00 00 00 05 01 00 00 40 01 48 03 C8 08 00 00 00 05 68 84 01 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 10 A4 52 00 02 80 90 05 70 00 00 09 00 12 CC 00 00 00 00 12 00 00 00 00 00 80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 90 00 00 00 00 00 00 00 00 02 00 00 00 00 00 00 00 A0 00 00 00 00 0D 00 00 00 B5 10 08 86 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100 03 00 41 FB 00 0E DF B5 10 01 86 BA 00 00 00 00 110 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 04 00 81 14 00 00 00 00 Description PCI to PCI Bridge Location bus 7 (0x07), device 1 (0x01), function 0 (0x00) Common header Vendor ID 0x10B5 Model ID 0x8608 Revision ID 0xBA PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x01 PCI header Primary bus 0x07 Secondary bus 0x08 Int. Line 0x0B Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x40 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x48 PCI capability Caps class PCI Express Caps offset 0x68 Device type Downstream Port of PCI-E Switch Port 1 Version 2.0 Physical slot #14 Presence detect no Link width 0x (max 1x) PCI capability Caps class Subsystem Vendor Caps offset 0xA4 SubVendor ID 0x10B5 SubSystem ID 0x8608 Extended capabilities Caps class Device Serial Number Caps offset 0x100 Caps class Advanced Error Reporting Caps offset 0xFB4 Caps class Virtual Channel Caps offset 0x148 Caps class 0xD Caps offset 0x520 Caps class Vendor Specific Caps offset 0x950 Vendor ID 1 Size 16 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 B5 10 08 86 04 04 10 00 BA 00 04 06 10 00 01 00 10 00 00 00 00 00 00 00 00 07 08 08 00 F1 01 00 00 20 F0 FF 00 00 F1 FF 01 00 00 00 00 00 00 00 00 00 30 00 00 00 00 40 00 00 00 00 00 00 00 0B 01 00 00 40 01 48 03 C8 08 00 00 00 05 68 84 01 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 10 A4 62 01 02 80 00 00 70 00 00 09 00 12 5C 39 01 00 00 01 00 80 0C 88 03 80 C0 03 00 00 00 00 00 00 00 00 00 00 20 00 00 00 90 00 00 00 00 00 00 00 00 02 00 00 00 00 00 00 00 A0 00 00 00 00 0D 00 00 00 B5 10 08 86 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100 03 00 41 FB 00 0E DF B5 10 01 86 BA 00 00 00 00 110 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description PCI to PCI Bridge Location bus 7 (0x07), device 4 (0x04), function 0 (0x00) Common header Vendor ID 0x10B5 Model ID 0x8608 Revision ID 0xBA PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x01 PCI header Primary bus 0x07 Secondary bus 0x09 Int. Line 0x05 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x40 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x48 PCI capability Caps class PCI Express Caps offset 0x68 Device type Downstream Port of PCI-E Switch Port 4 Version 2.0 Physical slot #14 Presence detect yes Link width 1x (max 1x) PCI capability Caps class Subsystem Vendor Caps offset 0xA4 SubVendor ID 0x10B5 SubSystem ID 0x8608 Extended capabilities Caps class Device Serial Number Caps offset 0x100 Caps class Advanced Error Reporting Caps offset 0xFB4 Caps class Virtual Channel Caps offset 0x148 Caps class 0xD Caps offset 0x520 Caps class Vendor Specific Caps offset 0x950 Vendor ID 1 Size 16 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 B5 10 08 86 04 04 10 00 BA 00 04 06 10 00 01 00 10 00 00 00 00 00 00 00 00 07 09 0A 00 F1 01 00 00 20 F0 FF 00 00 F1 FF 01 00 00 00 00 00 00 00 00 00 30 00 00 00 00 40 00 00 00 00 00 00 00 05 01 00 00 40 01 48 03 C8 08 00 00 00 05 68 84 01 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 10 A4 62 01 02 80 00 00 70 00 00 09 00 12 5C 39 04 00 00 11 20 80 0C A0 03 80 C0 03 40 00 00 00 00 00 00 00 00 00 20 00 00 00 90 00 00 00 00 00 00 00 00 02 00 00 00 00 00 00 00 A0 00 00 00 00 0D 00 00 00 B5 10 08 86 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100 03 00 41 FB 00 0E DF B5 10 01 86 BA 00 00 00 00 110 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description PCI to PCI Bridge Location bus 7 (0x07), device 5 (0x05), function 0 (0x00) Common header Vendor ID 0x10B5 Model ID 0x8608 Revision ID 0xBA PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x01 PCI header Primary bus 0x07 Secondary bus 0x0B Int. Line 0x0B Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x40 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x48 PCI capability Caps class PCI Express Caps offset 0x68 Device type Downstream Port of PCI-E Switch Port 5 Version 2.0 Physical slot #14 Presence detect yes Link width 1x (max 1x) PCI capability Caps class Subsystem Vendor Caps offset 0xA4 SubVendor ID 0x10B5 SubSystem ID 0x8608 Extended capabilities Caps class Device Serial Number Caps offset 0x100 Caps class Advanced Error Reporting Caps offset 0xFB4 Caps class Virtual Channel Caps offset 0x148 Caps class 0xD Caps offset 0x520 Caps class Vendor Specific Caps offset 0x950 Vendor ID 1 Size 16 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 B5 10 08 86 07 04 10 00 BA 00 04 06 10 00 01 00 10 00 00 00 00 00 00 00 00 07 0B 0B 00 C1 C1 00 00 20 20 F7 20 F7 F1 FF 01 00 00 00 00 00 00 00 00 00 30 00 00 00 00 40 00 00 00 00 00 00 00 0B 01 00 00 40 01 48 03 C8 08 00 00 00 05 68 84 01 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 10 A4 62 01 02 80 00 00 70 00 00 09 00 12 5C 39 05 00 00 11 20 80 0C A8 03 80 C0 03 40 00 00 00 00 00 00 00 00 00 20 00 00 00 90 00 00 00 00 00 00 00 00 02 00 00 00 00 00 00 00 A0 00 00 00 00 0D 00 00 00 B5 10 08 86 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100 03 00 41 FB 00 0E DF B5 10 01 86 BA 00 00 00 00 110 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description PCI to PCI Bridge Location bus 7 (0x07), device 6 (0x06), function 0 (0x00) Common header Vendor ID 0x10B5 Model ID 0x8608 Revision ID 0xBA PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x01 PCI header Primary bus 0x07 Secondary bus 0x0C Int. Line 0x0A Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x40 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x48 PCI capability Caps class PCI Express Caps offset 0x68 Device type Downstream Port of PCI-E Switch Port 6 Version 2.0 Physical slot #14 Presence detect yes Link width 1x (max 1x) PCI capability Caps class Subsystem Vendor Caps offset 0xA4 SubVendor ID 0x10B5 SubSystem ID 0x8608 Extended capabilities Caps class Device Serial Number Caps offset 0x100 Caps class Advanced Error Reporting Caps offset 0xFB4 Caps class Virtual Channel Caps offset 0x148 Caps class 0xD Caps offset 0x520 Caps class Vendor Specific Caps offset 0x950 Vendor ID 1 Size 16 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 B5 10 08 86 06 04 10 00 BA 00 04 06 10 00 01 00 10 00 00 00 00 00 00 00 00 07 0C 0C 00 F1 01 00 00 20 10 F7 10 F7 11 F2 11 F2 00 00 00 00 00 00 00 00 30 00 00 00 00 40 00 00 00 00 00 00 00 0A 01 00 00 40 01 48 03 C8 08 00 00 00 05 68 84 01 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 10 A4 62 01 02 80 00 00 70 00 00 09 00 12 5C 39 06 00 00 11 20 80 0C B0 03 80 C0 03 40 00 00 00 00 00 00 00 00 00 20 00 00 00 90 00 00 00 00 00 00 00 00 02 00 00 00 00 00 00 00 A0 00 00 00 00 0D 00 00 00 B5 10 08 86 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100 03 00 41 FB 00 0E DF B5 10 01 86 BA 00 00 00 00 110 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description PCI to PCI Bridge Location bus 7 (0x07), device 7 (0x07), function 0 (0x00) Common header Vendor ID 0x10B5 Model ID 0x8608 Revision ID 0xBA PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x01 PCI header Primary bus 0x07 Secondary bus 0x0D Int. Line 0x03 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x40 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x48 PCI capability Caps class PCI Express Caps offset 0x68 Device type Downstream Port of PCI-E Switch Port 7 Version 2.0 Physical slot #14 Presence detect no Link width 0x (max 1x) PCI capability Caps class Subsystem Vendor Caps offset 0xA4 SubVendor ID 0x10B5 SubSystem ID 0x8608 Extended capabilities Caps class Device Serial Number Caps offset 0x100 Caps class Advanced Error Reporting Caps offset 0xFB4 Caps class Virtual Channel Caps offset 0x148 Caps class 0xD Caps offset 0x520 Caps class Vendor Specific Caps offset 0x950 Vendor ID 1 Size 16 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 B5 10 08 86 04 04 10 00 BA 00 04 06 10 00 01 00 10 00 00 00 00 00 00 00 00 07 0D 0D 00 F1 01 00 00 20 F0 FF 00 00 F1 FF 01 00 00 00 00 00 00 00 00 00 30 00 00 00 00 40 00 00 00 00 00 00 00 03 01 00 00 40 01 48 03 C8 08 00 00 00 05 68 84 01 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 10 A4 62 01 02 80 00 00 70 00 00 09 00 12 5C 39 07 00 00 01 00 80 0C B8 03 80 C0 03 00 00 00 00 00 00 00 00 00 00 20 00 00 00 90 00 00 00 00 00 00 00 00 02 00 00 00 00 00 00 00 A0 00 00 00 00 0D 00 00 00 B5 10 08 86 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100 03 00 41 FB 00 0E DF B5 10 01 86 BA 00 00 00 00 110 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description PCI to PCI Bridge Location bus 7 (0x07), device 8 (0x08), function 0 (0x00) Common header Vendor ID 0x10B5 Model ID 0x8608 Revision ID 0xBA PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x01 PCI header Primary bus 0x07 Secondary bus 0x0E Int. Line 0x05 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x40 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x48 PCI capability Caps class PCI Express Caps offset 0x68 Device type Downstream Port of PCI-E Switch Port 8 Version 2.0 Physical slot #15 Presence detect no Link width 0x (max 1x) PCI capability Caps class Subsystem Vendor Caps offset 0xA4 SubVendor ID 0x10B5 SubSystem ID 0x8608 Extended capabilities Caps class Device Serial Number Caps offset 0x100 Caps class Advanced Error Reporting Caps offset 0xFB4 Caps class Virtual Channel Caps offset 0x148 Caps class 0xD Caps offset 0x520 Caps class Vendor Specific Caps offset 0x950 Vendor ID 1 Size 16 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 B5 10 08 86 04 04 10 00 BA 00 04 06 10 00 01 00 10 00 00 00 00 00 00 00 00 07 0E 0E 00 F1 01 00 00 20 F0 FF 00 00 F1 FF 01 00 00 00 00 00 00 00 00 00 30 00 00 00 00 40 00 00 00 00 00 00 00 05 01 00 00 40 01 48 03 C8 08 00 00 00 05 68 84 01 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 10 A4 62 01 02 80 00 00 70 00 00 09 00 12 5C 39 08 00 00 01 00 80 0C C0 03 80 C0 03 00 00 00 00 00 00 00 00 00 00 20 00 00 00 90 00 00 00 00 00 00 00 00 02 00 00 00 00 00 00 00 A0 00 00 00 00 0D 00 00 00 B5 10 08 86 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100 03 00 41 FB 00 0E DF B5 10 01 86 BA 00 00 00 00 110 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description PCI to PCI Bridge Location bus 7 (0x07), device 9 (0x09), function 0 (0x00) Common header Vendor ID 0x10B5 Model ID 0x8608 Revision ID 0xBA PI 0x00 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x01 PCI header Primary bus 0x07 Secondary bus 0x0F Int. Line 0x0B Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x40 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x48 PCI capability Caps class PCI Express Caps offset 0x68 Device type Downstream Port of PCI-E Switch Port 9 Version 2.0 Physical slot #15 Presence detect no Link width 0x (max 1x) PCI capability Caps class Subsystem Vendor Caps offset 0xA4 SubVendor ID 0x10B5 SubSystem ID 0x8608 Extended capabilities Caps class Device Serial Number Caps offset 0x100 Caps class Advanced Error Reporting Caps offset 0xFB4 Caps class Virtual Channel Caps offset 0x148 Caps class 0xD Caps offset 0x520 Caps class Vendor Specific Caps offset 0x950 Vendor ID 1 Size 16 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 B5 10 08 86 04 04 10 00 BA 00 04 06 10 00 01 00 10 00 00 00 00 00 00 00 00 07 0F 0F 00 F1 01 00 00 20 F0 FF 00 00 F1 FF 01 00 00 00 00 00 00 00 00 00 30 00 00 00 00 40 00 00 00 00 00 00 00 0B 01 00 00 40 01 48 03 C8 08 00 00 00 05 68 84 01 00 00 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 10 A4 62 01 02 80 00 00 70 00 00 09 00 12 5C 39 09 00 00 01 00 80 0C C8 03 80 C0 03 00 00 00 00 00 00 00 00 00 00 20 00 00 00 90 00 00 00 00 00 00 00 00 02 00 00 00 00 00 00 00 A0 00 00 00 00 0D 00 00 00 B5 10 08 86 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100 03 00 41 FB 00 0E DF B5 10 01 86 BA 00 00 00 00 110 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description PCI to PCI Bridge Location bus 9 (0x09), device 0 (0x00), function 0 (0x00) Common header Vendor ID 0x1B21 Model ID 0x1080 Revision ID 0x03 PI 0x01 SubClass 0x04 BaseClass 0x06 Cache Line 0x10 Latency 0x00 Header 0x01 PCI header Primary bus 0x09 Secondary bus 0x0A Int. Line 0x05 Int. Pin 0x01 PCI capability Caps class Subsystem Vendor Caps offset 0xC0 SubVendor ID 0x1849 SubSystem ID 0x1080 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 21 1B 80 10 07 04 10 00 03 01 04 06 10 00 01 00 10 00 00 00 00 00 00 00 00 09 0A 0A 20 F1 01 20 20 20 F0 FF 00 00 F1 FF 01 00 00 00 00 00 00 00 00 00 30 00 00 00 00 C0 00 00 00 00 00 00 00 05 01 00 00 40 60 70 00 00 00 07 00 00 00 00 00 00 A7 27 00 00 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 0D 00 00 00 49 18 80 10 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Description OHCI FireWire Controller Location bus 11 (0x0B), device 0 (0x00), function 0 (0x00) Common header Vendor ID 0x1106 Model ID 0x3403 Revision ID 0x01 PI 0x10 SubClass 0x00 BaseClass 0x0C Cache Line 0x10 Latency 0x00 Header 0x00 PCI header Address 0 (memory) 0xF7200000 Address 2 (port) 0x0000C000 Subvendor ID 0x1849 Subsystem ID 0x3403 Int. Line 0x10 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x50 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x80 PCI capability Caps class PCI Express Caps offset 0x98 Device type PCI-E Endpoint Device Port 0 Version 1.0 Link width 1x (max 1x) Extended capabilities Caps class Advanced Error Reporting Caps offset 0x100 Caps class Device Serial Number Caps offset 0x130 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 06 11 03 34 07 00 10 00 01 10 00 0C 10 00 00 00 10 04 00 20 F7 00 00 00 00 01 C0 00 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00 49 18 03 34 30 00 00 00 00 50 00 00 00 00 00 00 00 10 01 00 00 40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 01 80 03 E4 00 00 00 00 00 00 00 00 00 8F 00 00 60 00 00 00 00 22 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80 05 98 80 01 00 00 00 00 00 00 00 00 00 00 00 00 90 00 00 00 00 00 00 00 00 10 00 01 00 00 80 64 00 A0 00 20 10 00 11 4C 07 00 00 00 11 00 00 00 00 00 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100 01 00 01 13 00 00 00 00 00 00 00 00 30 20 06 00 110 00 00 00 00 00 20 00 00 B4 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 03 00 01 00 00 00 00 8F 13 FF FF 24 00 00 00 00 Description Ethernet Controller Location bus 12 (0x0C), device 0 (0x00), function 0 (0x00) Common header Vendor ID 0x14E4 Model ID 0x16B1 Revision ID 0x10 PI 0x00 SubClass 0x00 BaseClass 0x02 Cache Line 0x10 Latency 0x00 Header 0x00 PCI header Address 0 (memory) 0xF2110000 Address 2 (memory) 0xF2100000 Subvendor ID 0x1849 Subsystem ID 0x96B1 Int. Line 0x00 Int. Pin 0x01 PCI capability Caps class Power Management Caps offset 0x48 Caps version 1.2 PCI capability Caps class Message Signalled Interrupts Caps offset 0x58 PCI capability Caps class MSI-X Caps offset 0xA0 PCI capability Caps class PCI Express Caps offset 0xAC Device type PCI-E Endpoint Device Port 0 Version 2.0 Link width 1x (max 1x) Extended capabilities Caps class Advanced Error Reporting Caps offset 0x100 Caps class Device Serial Number Caps offset 0x13C Caps class Power Budgeting Caps offset 0x150 Caps class Virtual Channel Caps offset 0x160 PCI registers 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 E4 14 B1 16 06 04 10 00 10 00 00 02 10 00 00 00 10 0C 00 11 F2 00 00 00 00 0C 00 10 F2 00 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00 49 18 B1 96 30 00 00 00 00 48 00 00 00 00 00 00 00 00 01 00 00 40 00 00 00 00 00 00 00 C6 01 58 03 C8 08 20 00 08 50 03 00 00 00 00 00 00 00 05 A0 86 00 00 00 00 00 60 00 00 00 00 00 00 00 00 98 02 00 F1 50 00 F8 01 70 90 10 00 00 00 00 00 00 2C 00 00 00 F0 0D 00 00 80 49 18 B1 96 00 00 00 00 00 00 00 00 1F 01 00 00 90 00 00 00 00 5C 01 00 00 00 00 00 00 DE 01 00 00 A0 11 AC 04 80 02 00 00 00 22 01 00 00 10 00 02 00 B0 80 8D 64 00 00 50 10 00 11 5C 07 00 00 00 11 10 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D0 1F 00 00 00 00 00 00 00 00 00 00 00 01 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 51 78 57 100 01 00 C1 13 00 00 00 00 00 00 00 00 30 20 06 00 110 00 00 00 00 00 20 00 00 A0 00 00 00 00 00 00 00 120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130 00 00 00 00 00 00 00 00 00 00 00 00 03 00 01 15 DMI ------------------------------------------------------------------------- DMI BIOS vendor American Megatrends Inc. version P2.30 date 06/29/2012 ROM size 8192 KB DMI System Information manufacturer To Be Filled By O.E.M. product To Be Filled By O.E.M. version To Be Filled By O.E.M. serial To Be Filled By O.E.M. UUID {03000200-0400-0500-0006-000700080009} SKU To Be Filled By O.E.M. family To Be Filled By O.E.M. DMI Baseboard vendor ASRock model Z68 Extreme4 Gen3 revision unknown serial unknown DMI System Enclosure manufacturer To Be Filled By O.E.M. chassis type Desktop chassis serial To Be Filled By O.E.M. DMI Extension Slot designation PCI1 type PCI width 32 bits populated no DMI Extension Slot designation PCI2 type PCI width 32 bits populated no DMI Extension Slot designation PCIE1 type A5 populated no DMI Extension Slot designation PCIE2 type A5 populated yes DMI Extension Slot designation PCIE3 type A5 populated no DMI Extension Slot designation PCIE4 type A5 populated no DMI Extension Slot designation PCIE5 type A5 populated no DMI OEM Strings string[0] To Be Filled By O.E.M. DMI Physical Memory Array location Motherboard usage System Memory correction None max capacity 32768 MBytes max# of devices 4 DMI Processor manufacturer Intel(R) Corporation model Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz clock speed 3400.0 MHz FSB speed 100.0 MHz multiplier 34.0x DMI Memory Device designation ChannelA-DIMM0 format DIMM type unknown total width 64 bits data width 64 bits DMI Memory Device designation ChannelA-DIMM1 format DIMM type unknown total width 64 bits data width 64 bits size 4096 MBytes DMI Memory Device designation ChannelB-DIMM0 format DIMM type unknown total width 64 bits data width 64 bits DMI Memory Device designation ChannelB-DIMM1 format DIMM type unknown total width 64 bits data width 64 bits size 4096 MBytes Storage ------------------------------------------------------------------------- Drive 0 Device Path \\?\ide#diskmaxtor_6v250f0__________________________va111630#5&13e7d980&0&1.0.0#{53f56307-b6bf-11d0-94f2-00a0c91efb8b} Type Fixed Bus Type 3 Name Maxtor 6V250F0 Capacity 233.8 GB SMART Support Yes Volume e:\, 233.8 GBytes (92.0 percent available) Drive 1 Device Path \\?\ide#diskocz-vertex3_____________________________2.15____#5&3b7b70f0&0&1.0.0#{53f56307-b6bf-11d0-94f2-00a0c91efb8b} Type Fixed Bus Type 3 Name OCZ-VERTEX3 Capacity 111.8 GB SMART Support Yes Volume c:\, 111.3 GBytes (62.1 percent available) Drive 2 Device Path \\?\usbstor#disk&ven_lexar&prod_usb_flash_drive&rev_1100#aaedmiulbbt5soht&0#{53f56307-b6bf-11d0-94f2-00a0c91efb8b} Type Removable Bus Type 7 Name Lexar USB Flash Drive Capacity 14.9 GB SMART Support Yes Volume f:\, 14.9 GBytes (99.9 percent available) Drive 3 Device Path \\?\ide#diskst3250620as_____________________________3.aak___#5&3b7b70f0&0&1.1.0#{53f56307-b6bf-11d0-94f2-00a0c91efb8b} Type Fixed Bus Type 3 Name HDD 3 Capacity 232.9 GB SMART Support Yes Volume d:\, 232.9 GBytes (99.1 percent available) USB Devices ------------------------------------------------------------------------- USB Device Generic USB Hub, class=0x09, subclass=0x00, vendor=0x8087, product=0x0024 USB Device Generic USB Hub, class=0x09, subclass=0x00, vendor=0x8087, product=0x0024 USB Device USB-apparaat voor massaopslag, class=0x00, subclass=0x00, vendor=0x05DC, product=0xA20B USB Device Generic USB Hub, class=0x09, subclass=0x00, vendor=0x05E3, product=0x0607 USB Device Samengesteld USB-apparaat, class=0x00, subclass=0x00, vendor=0x046D, product=0xC228 USB Device Samengesteld USB-apparaat, class=0x00, subclass=0x00, vendor=0x046D, product=0xC229 USB Device Samengesteld USB-apparaat, class=0x00, subclass=0x00, vendor=0x046D, product=0xC081 Graphics ------------------------------------------------------------------------- Number of adapters 1 Graphic APIs ------------------------------------------------------------------------- API NVIDIA I/O API NVIDIA NVAPI Display Adapters ------------------------------------------------------------------------- Display adapter 0 ID 0x1050218 Name NVIDIA GeForce 210 Board Manufacturer ASUSTeK Computer Inc. Revision B1 Codename GT218 Technology 40 nm Memory type DDR3 PCI device bus 1 (0x1), device 0 (0x0), function 0 (0x0) Vendor ID 0x10DE (0x1043) Model ID 0x0A65 (0x83C7) Revision ID 0xA2 Performance Level 0 Win32_VideoController AdapterRAM = 0x20000000 (536870912) Win32_VideoController DriverVersion = 21.21.13.4201 Win32_VideoController DriverDate = 11/14/2016 Monitor 0 Model LG ULTRAWIDE (LG Electronics (GoldStar)) ID GSM59F1 Serial Manufacturing Date Week 11, Year 2017 Size 28.6 inches Max Resolution 2560 x 1080 @ 59 Hz Horizontal Freq. Range 30-90 kHz Vertical Freq. Range 56-75 Hz Max Pixel Clock 240 MHz Gamma Factor 2.2 Software ------------------------------------------------------------------------- Windows Version Microsoft Windows 10 (10.0) Professional 64-bit (Build 16299) DirectX Version 12.0 Register Spaces ------------------------------------------------------------------------- Register space PCI Register space PCI #2 Register space PCI Express, base address = 0x0F8000000 Register space SMBus, base address = 0x0F000 Register space LPC, base address = 0x0290 Register space LPC, base address = 0x02E
Iemand enig idee? Ik kom er niet meer uit.
[ Voor 98% gewijzigd door Kecin op 07-04-2018 01:14 ]
I am not a number, I am a free man! Geld over? Check m'n V&A
...
. Die kan ik niet aan de gang krijgen, vreemd toch?
.
/u/226306/crop5ca9ccf705032_cropped.png?f=community)
Lekker terug naar vorige bios
